2024 Union
E-Lane

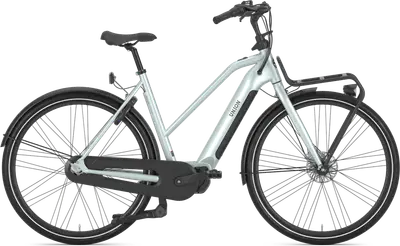

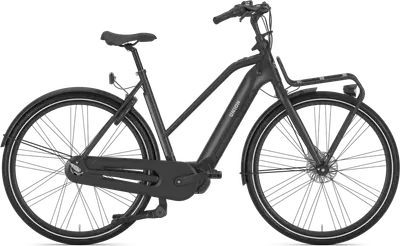

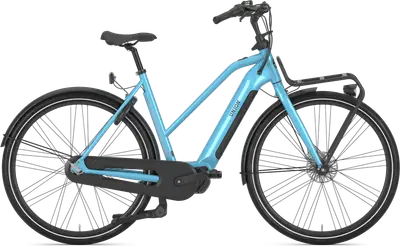

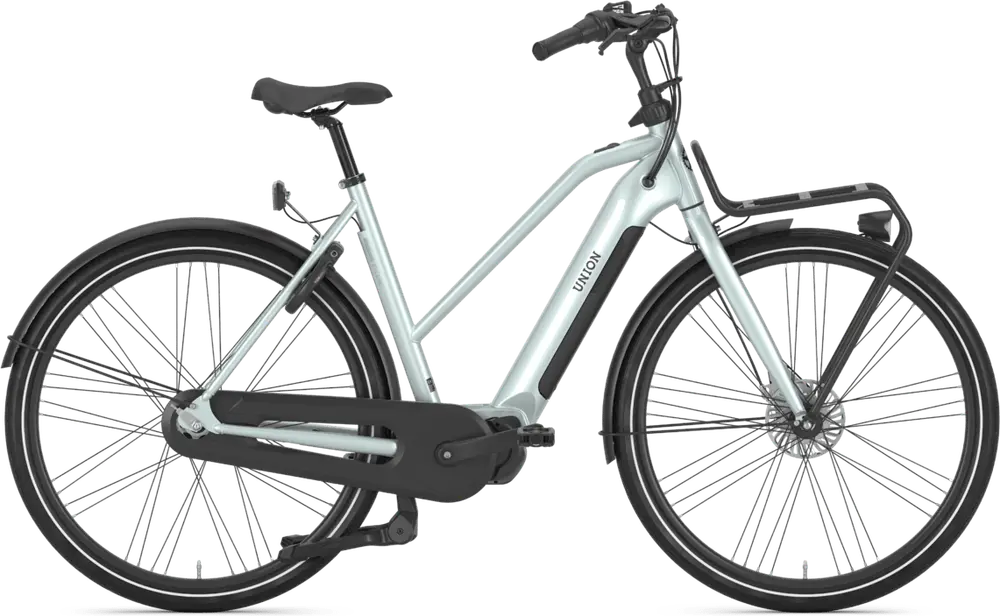

A 29″ aluminum frame commuter e-bike with shimano nexus rim brakes.

Manufacturer Price

€2,799($3,255)

Where to Buy

Similar Bikes

Top Comparison

Specs

Build

Frame	Frame description: Aluminum frame with battery beautifully integrated into the down tube. 71° seat tube angle and 69° head tube angle give the bike a sporty look with comfortable handling., Frame material: Aluminum, Cable integration: Yes, Frame shape: Mid-Step, Frame size (cm): 49, 54 Colors: Zwart; Blauw
Fork	Front fork description: Steel, unsprung, Front fork material: Steel, Front fork suspension: Fixed, unsprung
Saddle	Saddle: Selle Royal

Groupset

Brakes	Front brake type: Roller brake, Brake systems code: T7, Front brake brand: Shimano, Primary rear brake model: BR-C6000R, Front brake: Shimano Shimano, Rear brake: Shimano BR-C6000R Type: Shimano Nexus Rim

Wheels

Rims	Wiel voor: 38, Wiel achter: 18, Velg voor: StarDubbelwandig aluminium voor extra sterkte en goede rij-eigenschappen, Velg achter: StarDubbelwandig aluminium voor extra sterkte en goede rij-eigenschappen, Voornaaf: Shimano, Achternaaf: Shimano Nexus, Wielgrootte voor: 28"
Tires	Front wheel ETRTO: 50-622, Front tire: Schwalbe Fat Frank, Rear tire: Schwalbe Fat Frank, Front tire description: Schwalbe Fat Frank

Electric Components

Motor	E-bike system brand: Shimano STEPS, E-bike system motor position: Middle, E-bike max. speed (km/h): 25, E-bike max. speed (mph): 15, E-bike motor max. torque: 40
Battery	Charger: Shimano, Battery charger description: 2 Ah, Battery position: Integrated in the frame
Display	Display: Shimano, E-bike walk assist: Yes, E-bike display type: LCD

Accessories

Lights	Front: Headlight: Marwi UN4250E, Headlight energy source: Battery, Headlight lux: 20, Rear: Taillight energy source: Battery, Taillight: Marwi UN-4360E
Racks	Front carrier: Yes, Front carrier max. load (kg): 10, Front carrier max. load (lbs): 22

Rider Notes
