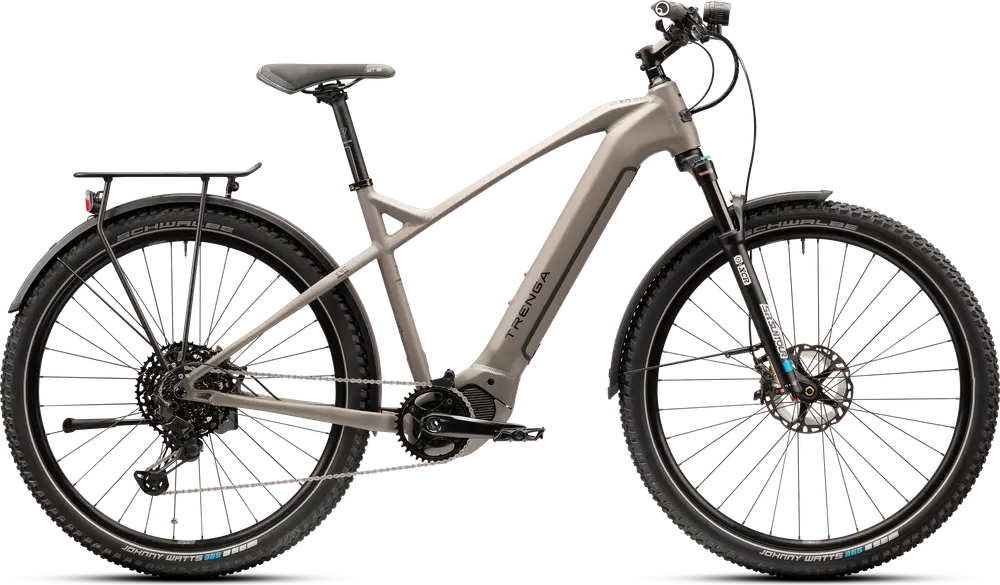

2024 Trenga

XME 8.0 AT

STEPS, press-fit

TRENGA aluminum rigid, length: depending on frame height, fork clamp Ø: 28.6 mm, handlebar clamp Ø: 31.8 mm, angle: ± 17°

TRENGA, width: 680 mm, handlebar clamp Ø: 31.8 mm, backsweep: 9°, rise: 20 mm

Selle Italia ST-5 Flow, combines comfort with sporty design, FLOW opening relieves pressure on the perineal area, gel padding with Soft-Tek cover, Hi-Viz inserts increase visibility in the dark

TDE Alloy MTB Platform HPL, Large, safe tread, aluminum pedal body, reflectors

Shimano Deore XT RD-M8130 SGS, Shadow RD Plus design for optimal chain guidance, Optimized for LINKGLIDE, Smooth and reliable shifting, Derailleur stabilizer against chain slap, More efficient, ball-bearing pulleys, Largest pinion max. 50 teeth

Shimano STEPS FC-M8150, Specially developed for E-MTB, Crank length: 165 mm or 170 mm, depending on frame height, Q-factor: 177 mm, Light and stiff thanks to HOLLOW TECH II design

Shimano Deore SL-M8130, Rapidfire Plus - smooth, fast shifting, variable I-SPEC EV mounting, 2-way release allows shifting with thumb or index finger, INSTANT release for fastest shifting function

Shimano CS-LG700-11, 11-speed LINKGLIDE, gradation: 11-13-15-17-20-23-26-30-36-43-50, increased wear resistance

Shimano CN-E8000, HG-X for E-Bike, Optimized shifting behavior, Dirt-repellent design, SIL-TEC treatment for better durability

Shimano STEPS SM-CDE80, For 53 mm and 56.5 mm chainline, Precise guide adjustment, Compatible chainrings: 38, 36, 34 teeth

Ryde Rival 26 Disc, ideal for MTB, e-bike and trekking, tubeless ready, 32 hole, ETRTO: 26-622

Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Black

Schwalbe Johnny Watts 365, size: 29x2.60, all-season tire thanks to ADDIX Four Season Compound, secure grip on all surfaces, double defense puncture protection, specially developed for e-bikes, reflective strips

Shimano STEPS EP800, Max. torque: 85 Nm, Max. power: 500 W, Rated continuous power: 250 W, 20% longer range, Lower heat generation, Lighter, quieter, and more compact, Configurable via the E-TUBE PROJECT app

Shimano Shimano BT-E8035-L, integrated in the down tube, voltage: 36V, capacity: 14 Ah, energy content: approx. 504 Wh, weight: approx. 2.9 kg

Shimano STEPS EW-SW300, compact on/off switch, semi-integrated in the frame

Shimano STEPS SC-EM800, compact and flat, flexible mounting, shows support modes on 1.6-inch display, can be adjusted by the rider via E-TUBE app, wireless connection via smartphone/tablet

STEPS charger Shi EC-E8004, charging current (max.): 4.6 A, battery charging voltage: 42 V, size: 160 x 70 x 44 mm, weight: including cable approx. 450 g, charging time: 4 h for 504 Wh battery, approx. 4.8 h for 630 Wh battery

Busch & Müller Toplight Dart Brex, LED rear light for e-bikes, brake and emergency brake light function, integrated Z-shaped large-area reflector

SKS Bluemels matte black, aluminum/plastic sandwich construction, robust, rigid, and corrosion-resistant, innovative light cable routing system, ESC safety system, width: 75 mm, max. tire width: 66 mm

Racktime Boost-it IMM, SNAPIT compatible, load capacity: 25 kg, spring clamp can be easily retrofitted, material: aluminum

Abus PLUS Shimano, battery lock against battery theft, robust X-Plus lock mechanism

Hebie rear stand, material: coated steel, wide base for secure support, load capacity up to 25 kg, continuous length adjustment without tools, dropout direct mounting KSA 40

TRENGA Single Bell, Material: Aluminum, Rotatable Bell Clapper, Loud and sonorous
