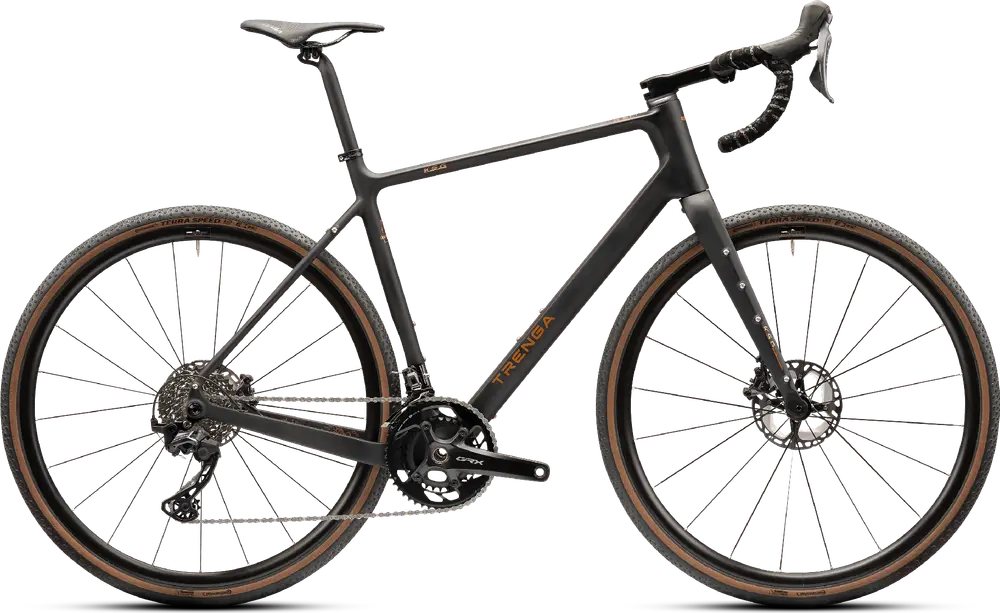

Today’s Deals2024 Trenga
KSG 9.2
A carbon frame gravel bike with high-end components and shimano grx 800 hydraulic disc brakes.
Compare the full range
Manufacturer Price
€2,999($3,489)| Weight | 20.1 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 12 |
| Groupset | GRX 800 |
| Brakes | Shimano GRX 800 Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full KSG model range
View Comparison5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Full carbon monocoque, cable routing: integrated, axle mount: thru axle 12x142 mm, bottom bracket: BSA 68 mm, brake: Flatmount Disc 140, tire clearance: 50 mm, mudguard and luggage rack eyelets, derailleur attachment: brazed-on BB Standard: BSA, 68mm, Threaded Tire Clearance: 50c |
|---|---|
| Fork | Carbon gravel fork tapered 1.5", axle mount: thru axle 12x100 mm, steerer tube: 1 1/8" to 1.5", disc brake mount: flat mount, lowrider eyelets, max. tire width: 45 mm with mudguards/50 mm without |
| Bottom Bracket | Shimano SM-BBR60, High rigidity thanks to HOLLOWTECH II, Reliable, particularly durable bearing, BSA thread (BC 1.37) |
| Stem | FSA NS SMR integrated, length: depending on frame height, fork clamp Ø: 28.6 mm, handlebar clamp Ø: 31.8 mm, angle: - 6°, internally routed shift cables and brake lines |
| Handlebar | FSA A-Wing Pro, width: 42/44/46 cm, depending on frame height, handlebar clamp Ø: 31.8 mm, reach: 88 mm, drop: 121 mm, flare: 15°, integrated shift cables and brake lines |
| Saddle | Selle Italia SLR Boost, For long distances and racing, Comfortable Soft-Tek polyurethane cover, Anatomically neutral shape |
| Seatpost | TRENGA aluminum rigid, diameter: 27.2 mm, length: 300 mm, clamping: 2-way, offset: 18 mm Type: Rigid |
| Rear Derailleur | Shimano GRX FD-RX820, Lighter and smoother shifting, Direct mount, Chain stay angle: 63-66°, Chain line: 47 mm, Largest chainring: 48 teeth, Larger tire clearance |
|---|---|
| Crank | Shimano GRX FC-RX820-2, 48-31 teeth, crank length: 170 mm or 175 mm, depending on frame height, Q-factor: 151 mm, light and stiff thanks to HOLLOWTECH II design, large gear range |
| Shifters | Shimano GRX ST-RX820, Dual Control with Servo Wave brake function, Gravel-optimized ergonomics for more control, Especially for handlebars with flare, Non-slip surfaces, Grip width and pressure point settings |
| Cassette | Shimano CS-HG710-12, 12-speed HYPERGLIDE, gear ratio: 11-12-13-14-15-17-19-21-24-28-32-36 |
| Chain | Shimano CN-M7100, 12-speed HYPERGLIDE+, SIL-TEC coating for longer durability |
| Brakes | Shimano GRX 820 hydraulic disc brake, powerful and finely dosed thanks to Servo-Wave, grip width and pressure point settings, ICE technologies, brake lever: ST-RX820 Dual Control, brake calliper: BR-RX820 2-piston, brake pad: K05S-RX Resin Type: Shimano GRX 800 Hydraulic Disc |
| Rims | Schwalbe Tubeless, Width: 27 mm, Max. Bar: 12 |
|---|---|
| Tires | Conti Terra Speed ProTec, size: 40-622, BLACK CHILI compound for excellent rolling resistance, grip and longer mileage, Pro Tection puncture protection, E-Bike and Tubeless Ready |
