Today’s Deals2026 Trek

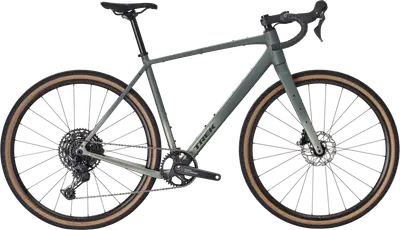

Checkpoint ALR 4
An aluminum frame gravel bike with upper mid-range components and shimano cues hydraulic disc brakes.
Compare the full range
Manufacturer Price
€1,499($1,744)| Weight | 22.9 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | CUES |
| Brakes | Shimano CUES Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Checkpoint model range
View Comparison5'1" – 5'7"
5'4" – 5'9"
5'6" – 6'0"
5'8" – 6'2"
5'11" – 6'4"
6'2" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2025
The Trek Checkpoint ALR is a versatile, upgrade-friendly gravel bike offering premium features at an attainable price.
Jun 2025
The third-generation Trek Checkpoint ALR brings key features from its carbon sibling to a more accessible aluminium frame – with bigger tyre clearance, a tweaked geometry, and adventure-ready versatility
Jun 2025 · Alvin Holbrook
The updated Trek Checkpoint ALR gets more user-friendly geometry, even more mounts, and more reason to ask why you'd need anything more.
Nov 2024
The Trek Checkpoint SL 7 AXS Gen 3 is the top-level model in the Wisconsin-based brand's revamped gravel/endurance range and it’s a belter, especially for those who like a ride style on the racier side of things. It’s light, flickable, nimble and fast, while also focusing on comfort for those longer tours, plus the addition of plenty of mounting points, internal frame storage and the ability to run wide tyres doesn’t exclude it from the adventure side of things. Gravel racing - what's next for cycling's fastest growing discipline?
Aug 2024 · Jordan Villella
The all-new Trek Checkmate SLR and Checkpoint SL further solidify the Wisconsin brand's commitment to the gravel arts.
Jan 2024 · Calvin Zajac
Is Trek’s mid-range gravel machine better than its top-end twin? The Checkpoint SL 7 offers adventure on a (slightly) lower budget, but is that enough to beat the competition in our adventure gravel bike group test?
Outstanding versatility
A lot of practical features
High-quality design, boasting first-class workmanship
No chainstay protector
Nov 2023 · Oscar Huckle
How does the Checkpoint platform translate into aluminium?
Well mannered on tamer terrain
Lots of eyelets
Eschews integration
Clean dropper post actuation
Expensive
Not the most exciting ride
Harsh through the front end when unloaded
Oct 2023 · Guy Kesteven
Trek’s Checkpoint has unique progressive geometry and scissor frame features and all the mount points you could want. But is it a multi-surface, multi-mission master or a complicated compromise?
IsoPulse Decoupler is a significant ride smoother
Well balanced road or rough handling
Efficient speed on all surfaces
SL 6 model is a real performance for price sweet spot
Saddle is a bit squishy on longer rides
Many mounts mean slightly more mass
Controls go through the headset
Non removable front mech tab
Rough rear hub
| Frame | 300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle BB Standard: T47, Threaded Hanger Standard: UDH Tire Clearance: 50c Colors: Matte Keswick Green to Lichen Fade; Living Coral |
|---|---|
| Fork | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Stem | Size: XS, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: S, M, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: ML, L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length; Size: XL, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length |
| Handlebar | Size: XS, S, Bontrager Elite Gravel, alloy, 40 cm width; Size: M, ML, Bontrager Elite Gravel, alloy, 42 cm width; Size: L, Bontrager Elite Gravel, alloy, 44 cm width; Size: XL, Bontrager Elite Gravel, alloy, 46 cm width |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length Type: Rigid |
| Rear Derailleur | Shimano CUES U8000 GS |
|---|---|
| Crank | Size: XS, S, Shimano CUES FCU60301, 40T ring, 165mm length; Size: M, ML, Shimano CUES FCU60301, 40T ring, 170mm length; Size: L, XL, Shimano CUES FCU60301, 40T ring, 172.5mm length |
| Shifters | Shimano CUES U6030, 11-speed |
| Cassette | Shimano CUES LG700, LINKGLIDE, 11-50, 11 speed |
| Chain | Shimano LG500 |
| Brakes | Size: XS, S, M, ML, L, XL, Shimano CUES hydraulic disc, flat mount; Size: XS, S, M, ML, L, XL, Shimano CUES U6030 Type: Shimano CUES Hydraulic Disc |
| Rims | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
|---|---|
| Spokes | 14 g stainless steel, black |
| Front Hub | Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Tires | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Disc Rotors | Shimano RT54, CentreLock, 160mm |
