Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

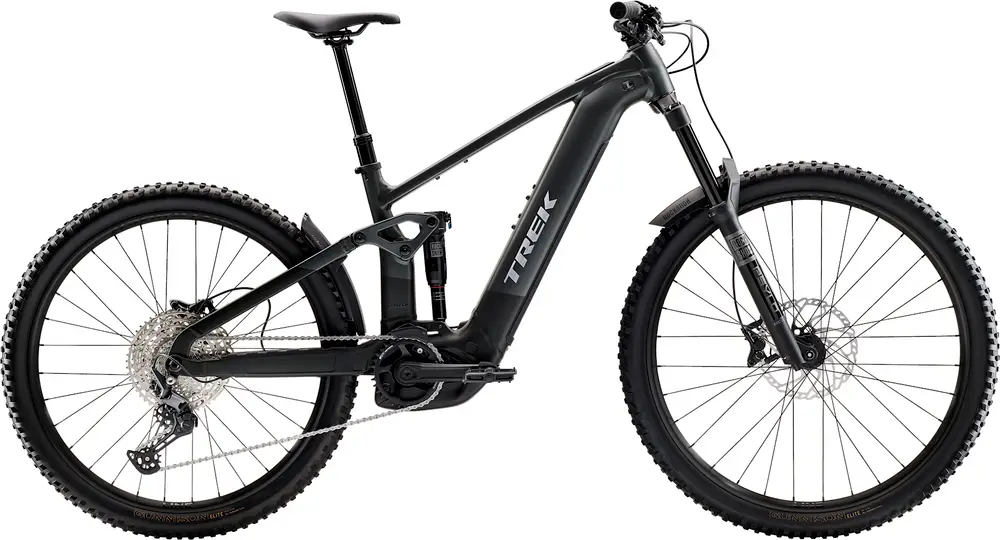

Today’s Deals2025 Trek
Rail+ 5 Gen 5
A 27.5″ aluminum frame full suspension enduro e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
$5,999| Weight | 55.7 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 160 / 160mm |
| Fork | RockShox Psylo |
| Shock | RockShox Deluxe Select+ |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Deore |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 800Wh |
| Brakes | Shimano Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Rail+ model range
View Comparison5'0" – 5'6"
5'6" – 6'1"
5'9" – 6'3"
6'1" – 6'6"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2025 · Ron Koch
Trek’s Rail+ Gen 5 gets more travel, a lighter Bosch Performance Line CX motor, an 800Wh battery and improved adjustability. A refined, full-power eMTB built for everyday riders.
May 2025 · Rudolf Fischer
The new 2025 Trek Rail+ 9.8 GX AXS T-Type Gen 5 with 160 mm travel and Bosch Performance Line CX Gen5 motor in the first test
Cleanly organized cockpit
Versatile platform with countless adjustment options
Cable rattling in the frame
Tires lack grip
| Frame | Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel Hanger Standard: UDH Tire Clearance: 2.6" Colors: Lithium Grey; Viper Red |
|---|---|
| Fork | RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44mm offset, Boost 110, 15mm Maxle Stealth, 160mm travel Travel: 160mm Spring Type: Air |
| Shock | RockShox Deluxe Select+ RT, 205mm x 65mm Travel: 160mm |
| Headset | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Stem | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle | Bontrager Verse P3, steel rails |
| Seatpost | Size: S, TranzX JD-YSI34, 100mm travel, internal routing, 34.9mm; Size: M, L, XL, TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm Type: Dropper |
| Pedals | VP-536 nylon platform |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Rear Derailleur | Shimano Deore M6100, long cage |
|---|---|
| Crank | E*thirteen E*spec Plus, 160mm length |
| Shifters | Shimano Deore M6100, 12 speed |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Brakes | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper Type: Shimano Hydraulic Disc |
| Rims | Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve |
|---|---|
| Front Hub | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| Tires | Size: S, M, L, XL, Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"; Size: S, M, L, XL, Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"; Size: M, L, XL, Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"; Size: M, L, XL, Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" |
| Disc Rotors | Shimano RT66, 6-bolt, 203mm |
| Motor | Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
|---|---|
| Battery | Bosch PowerTube 800Wh, smart system |
| Remote | Bosch System Controller BRC3100, smart system |
| Charger | Bosch standard 2A, 110V, smart system |
| Fenders | Trek 27.5" custom fender |
|---|
First added September 30
Last updated June 27
Not listed for 336 days
