Size: L, XL, XXL, Shimano MT401/MT410 hydraulic disc; Size: L, XL, XXL, Shimano MT401 / MT420 hydraulic disc

Size: L, XL, XXL, Shimano RT26, 6-bolt, 180 mm; Size: L, XL, XXL, Shimano RT30, CentreLock, 180 mm

Size: L, XL, XXL, SKS plastic, rear; Size: L, XL, XXL, SKS plastic, front

SR Suntour Mobie 34, air spring, rebound and compression adjust, tapered alloy steerer, 100x15 mm thru axle, 60 mm travel

High-performance hydroformed alloy, Removable Integrated Battery, internal cable routing, Motor Armour, post-mount disc

Bontrager sealed bearing, 32-hole, 15 mm alloy thru-axle

Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width

Size: L, XL, XXL, Spanninga SOLO for e-bike; Size: L, XL, XXL, Herrmans H-Black MR8-E, 180 Lumen, 60 Lux, LED, headlight

Bosch Performance Line, 250 W, 75 Nm, 20 mph (25 km/h in Europe)

Enviolo Trekking, 32-hole, 6-bolt disc, 44T

Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve

Schwalbe Super Moto-X, reflective, wire bead, GreenGuard protection, 650x62 mm

The District+ 5 is a rugged city e-bike packed with comfort and features that streamline your city spins. Its frame integrates the batteries inside the down tube and comes with a range of battery capacity options, ranging from 400 Wh to 800 Wh, so you can choose what's right for your commute. Bosch's smart system motor propels you and allows for smart connectivity. A durable belt drive keeps maintenance low, and Enviolo's AUTOMATIQ hub does the shifting for you.

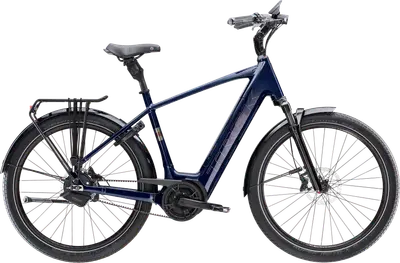

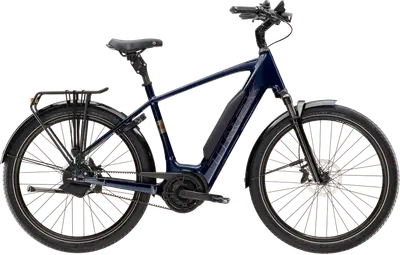

Trek District+ 5

55cm

60cm

65cm

This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 160 kg (352 lb).

A 700c aluminum frame commuter e-bike with high-end components and shimano deore hydraulic disc brakes.

Weight	59.7 lbs
Frame	Aluminum
Suspension	Hardtail, 60mm
Fork	Suntour MOBIE
Wheels	700c Aluminum
Drivetrain	Belt Drive, Internally Geared Hub
Groupset
Motor	Bosch 250W 75Nm mid-drive
Brakes	Shimano Deore Hydraulic Disc

Frame	High-performance hydroformed alloy, Removable Integrated Battery, internal cable routing, Motor Armour, post-mount disc
Fork	SR Suntour Mobie 34, air spring, rebound and compression adjust, tapered alloy steerer, 100x15 mm thru axle, 60 mm travel Travel: 60mm Spring Type: Air
Stem	Alloy adjustable stem, 110 mm length
Handlebar	Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width
Saddle	Selle Royal ON relaxed
Seatpost	Ergotec PM705-N suspension Type: Suspension
Pedals	Bontrager City pedals
Grips	Bontrager Satellite Elite, alloy lock-on

Crank	ProWheel alloy, 175 mm length
Shifters	Enviolo Automatic Controller
Cassette	Gates CDX, 22 T, steel
Brakes	Size: L, XL, XXL, Shimano MT401/MT410 hydraulic disc; Size: L, XL, XXL, Shimano MT401 / MT420 hydraulic disc Type: Shimano Deore Hydraulic Disc

Motor	Bosch Performance Line, 250 W, 75 Nm, 20 mph (25 km/h in Europe)
Remote	Bosch Kiox 500, smart system
Display	Bosch LED remote, smart system
Charger	Bosch standard 4A, 230V, smart system

Lights	Size: L, XL, XXL, Spanninga SOLO for e-bike; Size: L, XL, XXL, Herrmans H-Black MR8-E, 180 Lumen, 60 Lux, LED, headlight
Fenders	Size: L, XL, XXL, SKS plastic, rear; Size: L, XL, XXL, SKS plastic, front
Racks	Alloy rear rack, 25 kg max weight

Rims	Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Front Hub	Bontrager sealed bearing, 32-hole, 15 mm alloy thru-axle
Rear Hub	Enviolo Trekking, 32-hole, 6-bolt disc, 44T
Tires	Schwalbe Super Moto-X, reflective, wire bead, GreenGuard protection, 650x62 mm
Disc Rotors	Size: L, XL, XXL, Shimano RT26, 6-bolt, 180 mm; Size: L, XL, XXL, Shimano RT30, CentreLock, 180 mm

2025 TrekDistrict+ 5

2025 Trek
District+ 5
