2024 Trek
Procaliber 8

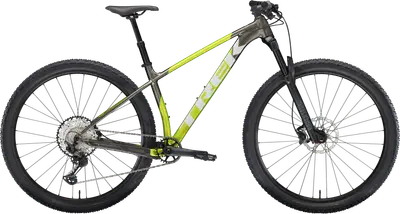

A 29″ aluminum frame hardtail trail bike with upper mid-range components.
Compare the full range
Manufacturer Price
€1,499($1,647)| Weight | 27.1 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 120mm |
| Fork | RockShox Recon Gold RL |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT, SLX |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Procaliber model range
View Comparison5'1" – 5'6"
5'4" – 5'10"
5'8" – 5'11"
5'9" – 6'3"
6'1" – 6'5"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2023 · Ben Haworth
Sure, you can ride the Trek Procaliber 9.6 whenever and wherever you like but the raison d’être of this bike is to perform between race tape.
| Frame | Alpha Platinum Aluminium, tapered head tube, internal routing, BSA 73, hidden rack and kickstand mounts, UDH, Boost148, 12 mm thru axle BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Tire Clearance: 2.4" |
|---|---|
| Fork | RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15 mm Maxle Stealth, 120mm travel Travel: 120mm Spring Type: Air |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Stem | Size: S, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length; Size: M, ML, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length; Size: L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: XL, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Handlebar | Size: S, M, Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width; Size: ML, L, XL, Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width |
| Saddle | Verse Short, chromoly rails, 145 mm width |
| Seatpost | Size: S, M, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length; Size: ML, L, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length; Size: XL, Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length Type: Dropper |
| Pedals | VP-536 nylon platform |
| Grips | Bontrager XR Trail Comp, nylon lock-on |

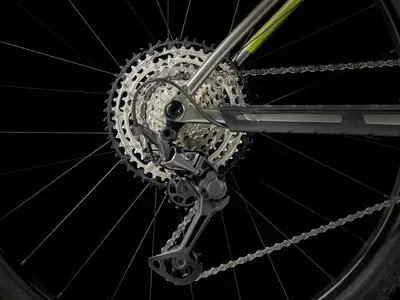

| Rear Derailleur | Shimano XT M8100, long cage |
|---|---|
| Crank | Size: S, M, E*thirteen Helix, 30T steel ring, 73 mm spindle length, 52 mm chainline, 170 mm length; Size: ML, L, XL, E*thirteen Helix, 30T steel ring, 73 mm spindle length, 52 mm chainline, 175 mm length |
| Shifters | Shimano SLX M7100, 12-speed |
| Cassette | Shimano SLX M7100, 10-51T, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |

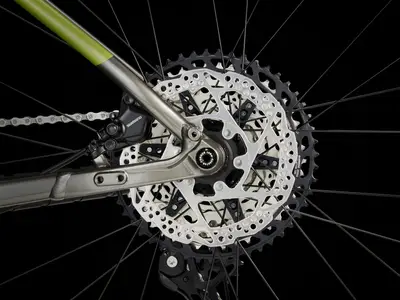

| Brakes | Shimano hydraulic disc, MT4100 lever, MT410 calliper Type: Hydraulic Disc |
| Rims | Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
|---|---|
| Front Hub | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| Rear Hub | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Tires | Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20" |

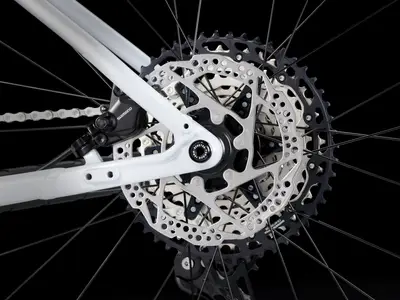

| Disc Rotors | Size: S, M, ML, L, XL, Shimano RT54, CentreLock, 160mm; Size: S, M, ML, L, XL, Shimano RT54, CentreLock,180 mm |
Last updated May 11
