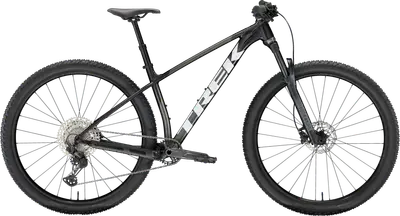

2024 Trek
Procaliber 6
A 29″ aluminum frame hardtail trail bike with upper mid-range components.
Compare the full range
Manufacturer Price
$1,699| Weight | 27.8 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 120mm |
| Fork | RockShox Judy Silver TK |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT, Deore |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Procaliber model range
View Comparison5'1" – 5'6"
5'4" – 5'10"
5'8" – 5'11"
5'9" – 6'3"
6'1" – 6'5"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2023 · Ben Haworth
Sure, you can ride the Trek Procaliber 9.6 whenever and wherever you like but the raison d’être of this bike is to perform between race tape.
| Frame | Alpha Platinum Aluminum, tapered head tube, internal routing, BSA 73, hidden rack and kickstand mounts, UDH, Boost148, 12mm thru axle BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Tire Clearance: 2.4" |
|---|---|
| Fork | RockShox Judy Silver, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel Travel: 120mm Spring Type: Air |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Headset | Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom |
| Stem | Size: S, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: M, ML, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
| Handlebar | Size: S, M, Bontrager alloy, 31.8mm, 5mm rise, 720mm width; Size: ML, L, XL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle | Verse Short, steel rails, 145mm width |
| Seatpost | Size: S, M, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length; Size: ML, L, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length; Size: XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length Type: Dropper |
| Pedals | VP-536 nylon platform |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Rear Derailleur | Shimano XT M8100, long cage |
|---|---|
| Crank | Size: S, M, Shimano MT512, 30T ring, 55mm chainline, 170mm length; Size: ML, L, XL, Shimano MT512, 30T ring, 55mm chainline, 175mm length |
| Shifters | Shimano Deore M6100, 12 speed |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Brakes | Shimano MT200 hydraulic disc Type: Hydraulic Disc |
| Rims | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
|---|---|
| Front Hub | Shimano TC500 alloy, centerlock, 110x15mm thru axle |
| Rear Hub | Shimano TC500 alloy, centerlock, 148x12mm thru axle |
| Tires | Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20'' |
| Disc Rotors | Size: S, M, ML, L, XL, Shimano RT10, centerlock, 160mm; Size: L, XL, Shimano RT10, centerlock, 180mm |
Last updated May 11
