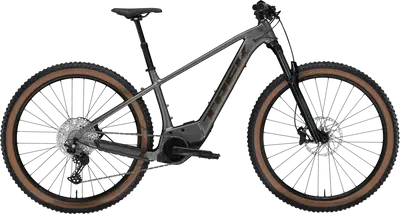

2024 Trek

Marlin+ 8

A 27.5″ / 29″ aluminum frame hardtail trail e-bike with upper mid-range components.
Compare the full range

MSRP$3,499
Weight47.0 lbs
FrameAluminum
SuspensionHardtail, 120mm
ForkRockShox Recon Silver RL
Wheels27.5″ / 29″ Aluminum
Drivetrain1 × 12
GroupsetDeore, FSA
MotorBosch 250W 50Nm mid-drive
BatteryBosch 400Wh
BrakesHydraulic Disc
SeatpostDropper
View on trekbikes.comLearn about Trek
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Marlin+ 8
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

Marlin+ 8

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
XS

4'9" – 5'2"

SM

5'0" – 5'6"

MD

5'4" – 5'11"

LG

5'8" – 6'3"

XL

6'1" – 6'5"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Reviews
Bikerumor
Trek Marlin+ adds Bosch e-Bike Power to Popular Hardtail

Feb 2024 · Tyler Benedict

Trek introduces more affordable e-bike options with a Bosch-powered version of their trail (and commute) ready Marlin alloy hardtail.

Read Review

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

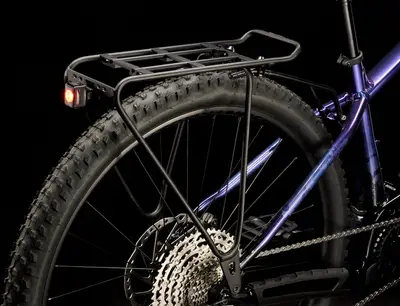

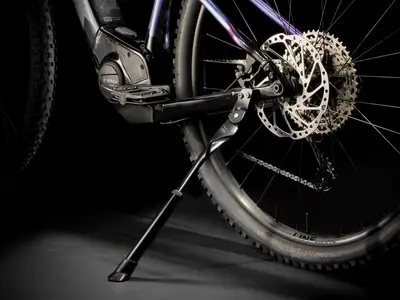

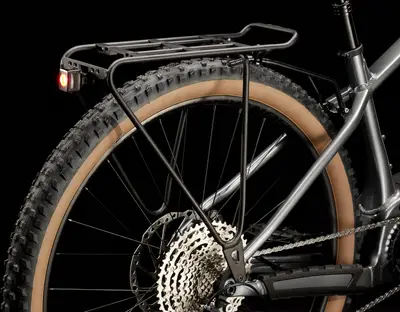

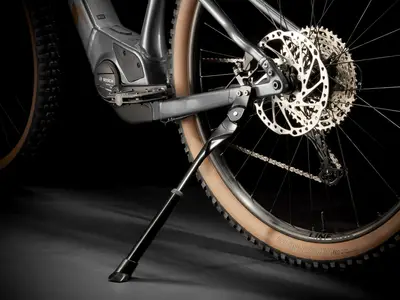

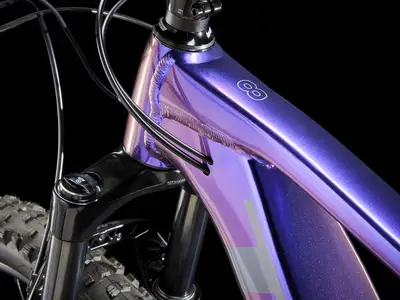

Size: XS, Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle; Size: S, M, L, XL, Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle

Hanger StandardUDH

Fork

Size: XS, RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 100mm travel; Size: S, RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 120mm travel; Size: M, L, XL, RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel

Travel120mm

Spring TypeAir

Headset

Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8'' top, 1.5'' bottom

Stem

Size: XS, S, Bontrager Comp, 31.8mm, 7 degree, 35mm length; Size: M, L, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: XL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length

Handlebar

Size: XS, S, Bontrager alloy, 31.8mm, 15mm rise, 720mm width; Size: M, L, XL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width

Saddle

Size: XS, S, M, L, XL, Bontrager Verse P3, chromoly rails; Size: XS, S, M, L, XL, Bontrager Arvada, hollow chromoly rails, 138mm width

Seatpost

Size: XS, S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, L, XL, TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length

TypeDropper

Pedals

VP-536 nylon platform

Grips

Bontrager XR Trail Comp, nylon lock-on

Groupset
Rear Derailleur

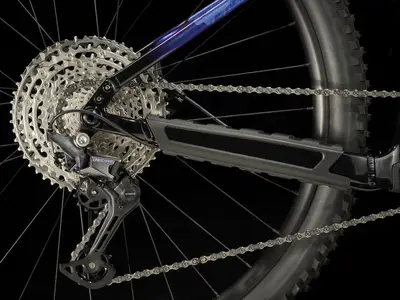

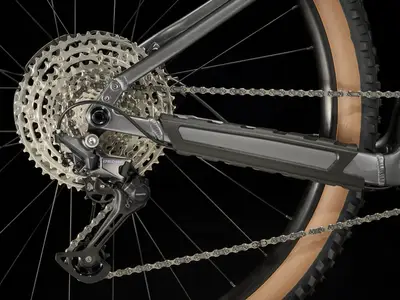

Shimano Deore M6100, long cage

Crank

FSA CK-220, 165mm length

Shifters

Shimano Deore M6100, 12 speed

Cassette

Shimano Deore M6100, 10-51, 12 speed

Chain

Shimano Deore M6100, 12 speed

Brakes

Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper

TypeHydraulic Disc

Wheels
Rims

Size: XS, S, M, L, XL, Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve; Size: XS, S, M, L, XL, Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve

Front Hub

Shimano TC500 alloy, centerlock, 110x15mm thru axle

Rear Hub

Shimano TC500 alloy, centerlock, 148x12mm thru axle

Tires

Size: XS, S, Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60''; Size: M, L, XL, Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60''

Disc Rotors

Shimano RT64, centerlock, 203mm

Electric Components
Motor

Bosch Active Line Plus

Battery

Bosch CompactTube 400Wh

Recycling Program♻️ Call2Recycle

Charger

Bosch standard 2A, 110V, smart system
