FX Sport 5

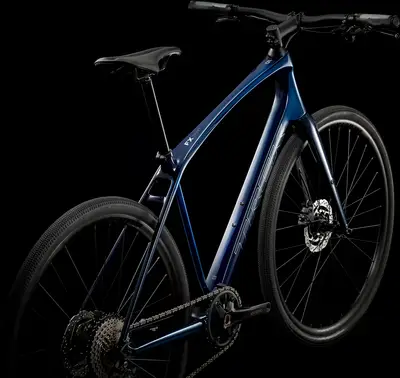

A 700c carbon frame fitness bike with upper mid-range components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$2,099Weight | 22.3 lbs |
---|---|
Frame | Carbon |
Suspension | Rigid |
Fork | Carbon |
Wheels | 700c Aluminum |
Drivetrain | 1 × 11 |
Groupset | GRX 800, 105 |
Brakes | Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full FX model range
View Comparison5'1" – 5'6"
5'4" – 5'10"
5'8" – 6'2"
6'0" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2024 · Simon Withers
Single-ring hybrid with Shimano Deore and all the extras as standard
Lights and kickstand included
Full length fenders
Very good contact points
Top notch braking
Shimano deore gearing
Underpowered lights
Only two pairs of bottle bosses
Twin stem face plates
No bar ends
Sep 2022 · Benjamin Page
The Trek FX 2 Disc is a versatile all-rounder with surprising levels of comfort and stability
The frame has a great balance between responsiveness and comfort
Equipped for night riding, bikepacking or commuting
Can carry a decent amount of weight
Stable ride for long distances
Would need a drivetrain upgrade to become a serious fitness bike
On the heavy side for a rigid frame
Fork | Carbon, hidden fender mounts, flat mount disc, 100x5mm thru-skew |
---|---|
Bottom Bracket | Shimano RS500, 86mm, PressFit |
Stem | Size: S, M, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: L, XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
Handlebar | Size: S, Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width; Size: M, L, XL, Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 660mm width |
Saddle | Bontrager Montrose Comp, steel rails, 138mm width |
Seatpost | Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length Type: Rigid |
Pedals | VPE-993T |
Grips | Bontrager Satellite IsoZone Plus, lock-on, ergonomic |
Rear Derailleur | Shimano GRX RX812, long cage, 42T max cog |
---|---|
Crank | Size: S, Shimano GRX RX600, 40T ring, 170mm length; Size: M, L, XL, Shimano GRX RX600, 40T ring, 175mm length |
Shifters | Shimano RS700, 11 speed |
Cassette | Shimano SLX M7000, 11-42, 11 speed |
Chain | Shimano HG601, 11 speed |
Brakes | Shimano hydraulic disc, MT201 lever, UR300 caliper Type: Hydraulic Disc |
Rims | Bontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, Presta valve |
---|---|
Front Hub | Formula CL-51 alloy, 100x5mm QR |
Rear Hub | Formula CL-52 alloy, 135x5mm QR |
Tires | Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40mm |

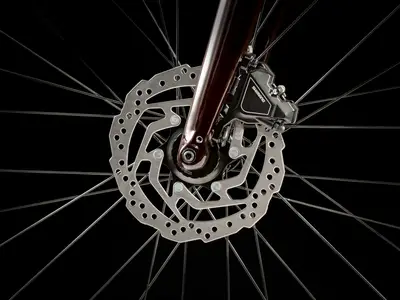

Disc Rotors | Shimano RT10, centerlock, 160mm |
Last updated May 18
