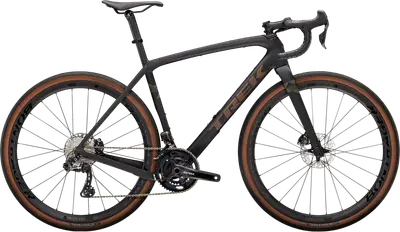

Checkpoint SLR 7
A carbon frame gravel bike with high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$7,999Weight | 19.4 lbs |
---|---|
Frame | Carbon |
Suspension | Rigid |
Fork | Carbon |
Wheels | 700c Carbon |
Drivetrain | 2 × 11 Electronic |
Groupset | GRX Di2, GRX 800 |
Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Checkpoint model range
View Comparison5'1" – 5'5"
5'3" – 5'7"
5'5" – 5'9"
5'8" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
May 2024 · Mat Brett
Get all the details of this versatile gravel/adventure bike with hidden storage and Trek’s bump-absorbing IsoSpeed technology
Nov 2023 · Oscar Huckle
How does the Checkpoint platform translate into aluminium?
Well mannered on tamer terrain
Lots of eyelets
Eschews integration
Clean dropper post actuation
Expensive
Not the most exciting ride
Harsh through the front end when unloaded
Oct 2023 · Guy Kesteven
Trek’s Checkpoint has unique progressive geometry and scissor frame features and all the mount points you could want. But is it a multi-surface, multi-mission master or a complicated compromise?
IsoPulse Decoupler is a significant ride smoother
Well balanced road or rough handling
Efficient speed on all surfaces
SL 6 model is a real performance for price sweet spot
Saddle is a bit squishy on longer rides
Many mounts mean slightly more mass
Controls go through the headset
Non removable front mech tab
Rough rear hub
Sep 2022 · Josh Ross
The Trek Checkpoint is the only bike you need to take you on every adventure
SRAM Rival AXS is the perfect groupset for an all-arounder
Mud-guard mounts
Mounting points for every bag you can think of
Non-proprietary seat-post provides options
Internal storage is convenient
Downtube protection eases worry
Threaded bottom bracket
Ideal all-around gearing
Short stem for added stability means handlebar/knee interference
Lacks included protection for the chain stay
Detail behind the fork steerer collects water and is difficult to clean
Jul 2022 · Ben Delaney
Trek’s versatile gravel bike offers progressive geometry, hidden storage, a racy but comfortable ride, and a sizeable price tag
Comfortable ride
Progressive geometry
Smart but unfussy mounts
Conventional bar and stem
Costs as much as a small car
No power meter
Heavier than much of the competition
Jun 2022 · Simon Hänle
Is the 2022 Trek Checkpoint SLR 7 a pure gravel racer or does it fare just as well on high-speed bikepacking trips? We put it to the test to find out.
Cleverly integrated storage compartment
Lots of attention to detail
Great for hardpack
Fully customisable paint job via the Project One Configurator
Very efficient and light-footed
Overly harsh up front compared to the well-damped rear end
Sep 2021
Updated geometry and differentiated models for speed, adventure, and all purpose riding
Sep 2021 · Matthew Pioro
Also, a tour of the revamped Trek Checkpoint lineup of bikes and Adventure bags for mixed-surface adventures

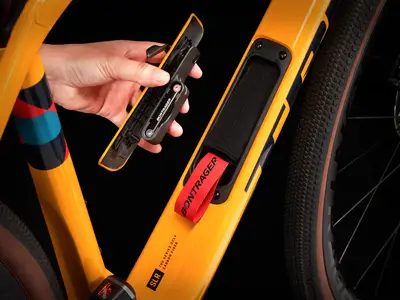

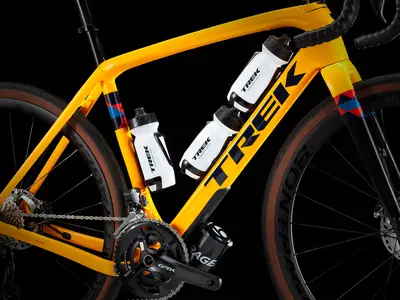

Frame | 700 Series OCLV Carbon, IsoSpeed, downtube storage door, internal routing, Ride Tuned seat mast, chain keeper, T47 BB, fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle BB Standard: T47, Threaded |
---|---|
Fork | Checkpoint carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle |
Bottom Bracket | Praxis, T47 threaded, internal bearing |
Stem | Size: 49, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 52, 54, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 56, 58, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 61, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length |
Handlebar | Size: 49, Bontrager Pro IsoCore VR-SF, 38cm; Size: 52, Bontrager Pro IsoCore VR-SF, 40cm; Size: 54, 56, Bontrager Pro IsoCore VR-SF, 42cm; Size: 58, 61, Bontrager Pro IsoCore VR-SF, 44cm |
Saddle | Size: 49, 52, Bontrager Verse Elite, austenite rails, 155mm width; Size: 49, 52, Bontrager Verse Short Elite, hollow stainless steel rails, 155mm width; Size: 54, 56, 58, 61, Bontrager Verse Elite, austenite rails, 145mm width; Size: 54, 56, 58, 61, Bontrager Verse Short Elite, hollow stainless steel rails, 145mm width |
Seatpost | Size: 49, 52, 54, 56, Bontrager carbon seatmast cap, 5mm offset, short length; Size: 58, 61, Bontrager carbon seatmast cap, 5mm offset, tall length Type: Rigid |

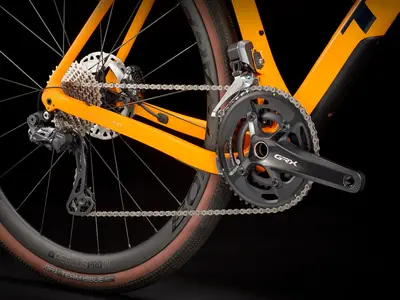

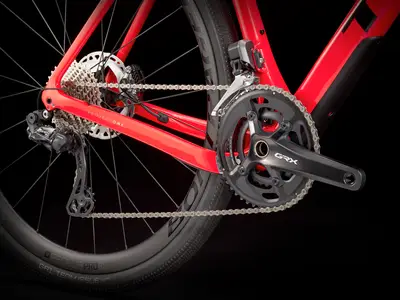

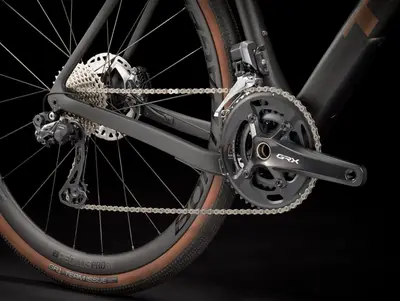

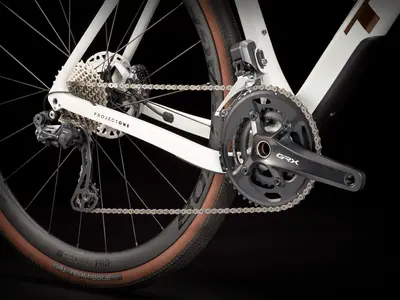

Rear Derailleur | Shimano GRX RX815 Di2, 34T max cog |
---|---|
Front Derailleur | Shimano GRX RX815, braze-on, down swing |
Crank | Size: 49, 52, Shimano GRX RX810, 48/31, 170mm length; Size: 54, 56, Shimano GRX RX810, 48/31, 172.5mm length; Size: 58, 61, Shimano GRX RX810, 48/31, 175mm length |
Shifters | Shimano GRX RX815 Di2, 11 speed |
Cassette | Shimano Ultegra HG800, 11-34, 11 speed |
Chain | Shimano Ultegra HG701, 11 speed |
Brakes | Shimano RX810 hydraulic disc, flat mount Type: Hydraulic Disc |
Rims | Front: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle, Rear: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axle |
---|---|
Tires | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm |
Disc Rotors | Shimano MT800, centerlock, 160mm |
Last updated June 8
