X-Caliber 8
A 27.5″ / 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.
Compare the full range
Manufacturer Price
$1,199Weight | 28.8 lbs |
---|---|
Frame | Aluminum |
Suspension | Hardtail, 100mm |
Fork | RockShox Judy |
Wheels | 27.5″ / 29″ Aluminum |
Drivetrain | 1 × 12 |
Groupset | XT, Deore |
Brakes | Hydraulic Disc |
For This Bike
4'9" – 5'2"
5'0" – 5'6"
5'4" – 5'10"
5'8" – 5'11"
5'9" – 6'3"
6'1" – 6'6"
6'4" – 6'8"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2023 · Seanwhite
The Trek X-Caliber 8 is a sure-footed 29er hardtail mountain bike, with plenty of reliable elements that boost its score to impressive levels, but a few missteps that hold it back from quite making it as one of the best hardtail mountain bikes we’ve tested. There’s a whole lot to like though. Twenty nine inch wheels have long been an integral part of Trek’s mountain bikes, especially the hardtails. And where initially there was uncertainty and hesitation in the industry, Trek pushed on with this larger wheel size and the persistence paid off: with 29in wheels now accepted globally and across all mountain bike categories, not just for the cross country crowd. Trek’s early 29in wheel bikes were XC hardtails and since then, the X-Caliber has shifted upmarket and now sit between the entry-level Marlin and the carbon Pro-Caliber. All three platforms run 100mm travel forks. We’ve pulled in the X-Caliber 8 for this review, which is just shy of the Scott Scale 965 in price and shares many of the same components. With all four bikes on test running Shimano brakes and 1×12 transmissions, we were keen to take this consistency a step further and chose models with regular seatposts, rather than droppers. Primarily for comparing the weight of the bikes, but riding dynamics and overall value played a part too as we felt it really levelled the playing field, and maintained the XC hardtail design ethos. With a steeply sloping top tube and a super-low standover height the X-Caliber is a very striking bike. It’s a silhouette that’s mirrored through all the brand’s hardtails – with the notable exception of the carbon Pro-Caliber – as is the wide size range that Trek is well known for offering. Seven frame sizes are available (with the XS and S rolling on 27.5in wheels to keep proportions in check) with a useful M/L option that’s a great problem solver for riders stuck between the popular M and L options. So hats off to Trek for this level of commitment to getting a good fitting bike. When it comes to new frame standards, Trek has always been an early adopter, so it’s no surprise to see a tapered head tube and Boost hub spacing on the X-Caliber frame. But it’s Boost with a twist… here, Trek using 141mm rear dropout spacing with a traditional Q/R hub, rather than a 148mm bolt-thru design. It’s not a deal breaker though, as the fixed rear triangle of a hardtail doesn’t need stiffening up like a full suspension design, and a quick online search reveals plenty of wheel upgrade options from the likes of Hunt, Hope and Bontrager for the 141 standard. A modern touch that hasn’t been executed as well as on other bikes in test, is the internal frame routing for the cable and rear brake hose – they’re not clamped where they enter the down tube and rattle noisily on rough terrain, just like on the Trek Roscoe in our Hardtail of the …Continue reading »
Tubeless-ready wheels and tyres
Heaviest bike on test

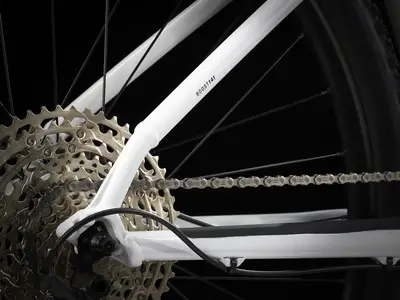

Frame | Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR BB Standard: BSA, 73mm, Threaded Tire Clearance: 2.8" Colors: Satin Lithium Grey; Crystal White |
---|---|
Fork | Size: XS, RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Lite, 80mm travel; Size: S, RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15mm Maxle Lite, 100mm travel; Size: M, M/L, L, XL, XXL, RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel Travel: 100mm Spring Type: Air |
Bottom Bracket | Size: XS, S, M, M/L, L, XL, XXL, Shimano BB-MT501 BSA; Size: XS, S, M, M/L, L, XL, XXL, Shimano SM-BB52, 73mm, threaded external bearing |
Headset | Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom |
Stem | Size: XS, S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, M/L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, XXL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
Handlebar | Size: XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: S, M, Bontrager alloy, 31.8mm, 5mm rise, 720mm width; Size: M/L, L, XL, XXL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
Saddle | Bontrager Arvada, steel rails, 138mm width |
Seatpost | Size: XS, S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: M/L, L, XL, XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length Type: Rigid |
Pedals | VP-536 nylon platform |
Grips | Bontrager XR Trail Comp, nylon lock-on |

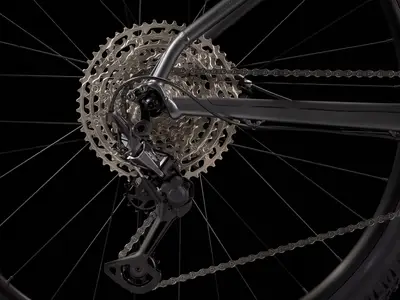

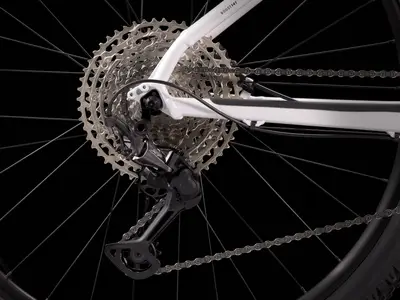

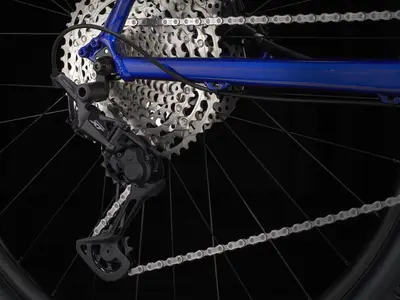

Rear Derailleur | Shimano XT M8100, long cage |
---|---|
Crank | Size: XS, S, M, Shimano MT511, 30T steel ring, 52mm chainline, 170mm length; Size: M/L, L, XL, XXL, Shimano MT511, 30T steel ring, 52mm chainline, 175mm length |
Shifters | Shimano Deore M6100, 12 speed |

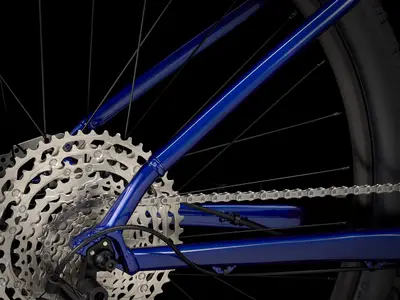

Cassette | Shimano Deore M6100, 10-51, 12 speed |
Chain | Shimano Deore M6100, 12 speed |

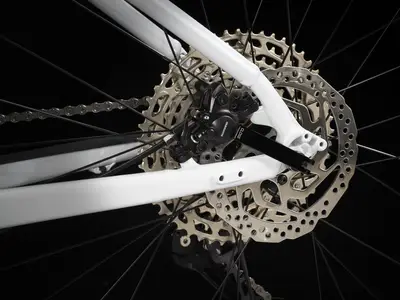

Brakes | Shimano MT200 hydraulic disc Type: Hydraulic Disc |
Rims | Size: XS, S, M, M/L, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve; Size: XS, S, M, M/L, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve |
---|---|
Spokes | 14g stainless steel, black |
Front Hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
Rear Hub | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR |
Tires | Size: XS, S, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35''; Size: M, M/L, L, XL, XXL, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35'' |

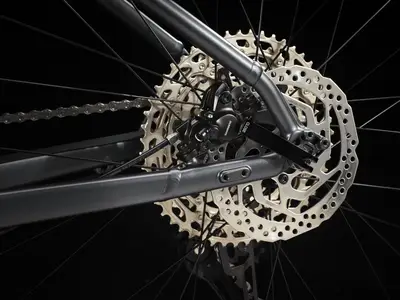

Disc Rotors | Size: XS, S, M, M/L, L, XL, XXL, Shimano RT26, 6-bolt,160mm; Size: L, XL, XXL, Shimano RT26, 6-bolt,180mm |
