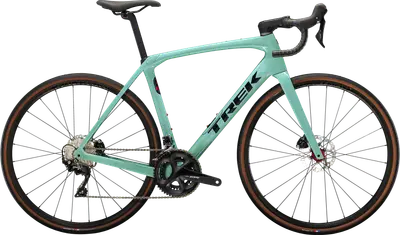

2023 Trek
Domane SL 5 Gen 4
A carbon frame endurance bike with upper mid-range components and hydraulic disc brakes.
Manufacturer Price
$3,499| Weight | 19.7 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 11 |
| Groupset | 105 |
| Brakes | Hydraulic Disc |
For This Bike
4'11" – 5'1"
4'11" – 5'3"
5'1" – 5'5"
5'3" – 5'7"
5'5" – 5'9"
5'8" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
6'2" – 6'5"
Feb 2024 · Dave Rome
Trek’s most budget road bike, revamped, and still with class-leading tyre clearance.
Room for 40 mm tyres has this one ready for the gravel-curious. Solid build kit and frame will shrug off loaded commuting and mixed surfaces. Ready for fenders and a rack. Welcoming geometry and comfortable touch points.
Disc brakes make for a heavy bike
And the mechanical disc brakes here aren’t stellar. Heavy wheels and tyres make the bike feel more sluggish than it wants to be. Through-headset cable routing makes no sense on a bike with mechanical gears and brakes. Ultimately cheap gearing and brakes for a bike that
While Trek’s entry-level
Isn’t as affordable as it should be.
Jan 2024 · Mat Brett
Find out about this endurance bike’s clever tech that smooths the road to keep you feeling fresh
Dec 2023 · Alvin Holbrook
It's easy to see why the Trek Domane SL all-road bike is so popular, even if it rubbed me the wrong way at times.
Sep 2023
Now on its fourth iteration, the Trek Domane AL is packed with updates, a lighter frame, and room for larger tires.
Sep 2023 · Calvin Zajac
Can the Trek Domane SLR 7 AXS Gen 4 prove to be the ultimate all-road bike and adventure buddy in our 2023 all-road group test?
Coherent and versatile concept
Very comfortable thanks to the inconspicuously integrated IsoSpeed system
Timeless look that you won’t get tired of looking at
Internally routed cables rattle loudly
Mar 2023 · Robin Wilmott
The Domane AL 4 Disc is a good budget endurance bike that’s excellent on the road and very capable away from it
Well rounded, coherent ride
Great comfort
Useful practicality
Crankset deviation
Squeaky-feeling saddle
Thin handlebar tape
Jan 2023 · Josh Croxton
Fewer Isospeeds means it's a little less comfortable, but the new Domane SLR 9 is fast, fun, and ready for an adventure
Easy to use storage compartment with neat & organising tool wrap
Simplified Isospeed vibration damping
38mm tyre clearance
Power meter included
Neat, low-maintenance integrated cockpit
Oh boy is it pricey
I would hope for top-spec tyres at this price
Oct 2022 · James Spender
The Domane is a tremendously smooth bike thanks to Trek’s IsoSpeed rear damping system and high volume, 32mm tubeless tyres
Comfort
Handling
Descending
Over-engineered
| Frame | 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle BB Standard: T47, Threaded Tire Clearance: 38c |
|---|---|
| Fork | Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Stem | Size: 44, Trek RCS Pro, -7 degree, 60mm length; Size: 47, Trek RCS Pro, -7 degree, 70mm length; Size: 50, Trek RCS Pro, -7 degree, 80mm length; Size: 52, 54, Trek RCS Pro, -7 degree, 90mm length; Size: 56, 58, Trek RCS Pro, -7 degree, 100mm length; Size: 60, 62, Trek RCS Pro, -7 degree, 110mm length |
| Handlebar | Size: 44, 47, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width; Size: 50, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width; Size: 52, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width; Size: 58, 60, 62, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width |
| Saddle | Size: 44, 47, 50, 52, Bontrager Verse Short Comp, steel rails, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Verse Short Comp, steel rails, 145mm width |
| Seatpost | Size: 44, 47, 50, 52, 54, 56, KVF aero carbon seatpost, 20mm offset, 280mm length; Size: 58, 60, 62, KVF aero carbon seatpost, 20mm offset, 320mm length Type: Rigid |
| Rear Derailleur | Shimano 105 R7000, long cage, 34T max cog |
|---|---|
| Front Derailleur | Shimano 105 R7000, braze-on |
| Crank | Size: 44, 47, Shimano 105 R7000, 50/34 (compact), 165mm length; Size: 50, 52, Shimano 105 R7000, 50/34 (compact), 170mm length; Size: 54, 56, Shimano 105 R7000, 50/34 (compact), 172.5mm length; Size: 58, 60, 62, Shimano 105 R7000, 50/34 (compact), 175mm length |
| Shifters | Size: 44, 47, 50, 52, Shimano 105 R7025, short-reach lever, 11 speed; Size: 54, 56, 58, 60, 62, Shimano 105 R7020, 11 speed |
| Cassette | Shimano 105 HG700-11, 11-34, 11 speed |
| Chain | Shimano 105 HG601, 11 speed |
| Brakes | Shimano 105 hydraulic disc, flat mount Type: Hydraulic Disc |
| Rims | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve |
|---|---|
| Spokes | 14 g stainless steel, black |
| Front Hub | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Tires | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm |
| Disc Rotors | Shimano RT70, centerlock, 160mm |
Last updated April 28
