2023 Trek

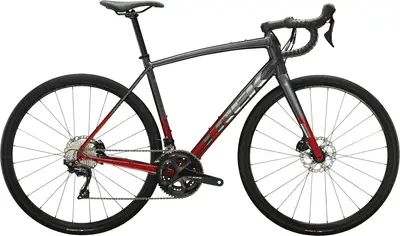

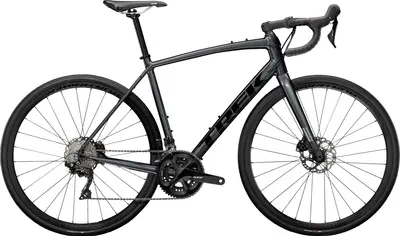

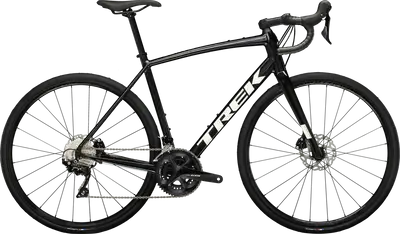

Domane AL 5 Disc
An aluminum frame endurance bike with upper mid-range components and hydraulic disc brakes.
Manufacturer Price
$2,099| Weight | 22.3 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 11 |
| Groupset | 105 |
| Brakes | Hydraulic Disc |
For This Bike
5'1" – 5'5"
5'3" – 5'7"
5'5" – 5'9"
5'8" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
Feb 2024 · Dave Rome
Trek’s most budget road bike, revamped, and still with class-leading tyre clearance.
Room for 40 mm tyres has this one ready for the gravel-curious. Solid build kit and frame will shrug off loaded commuting and mixed surfaces. Ready for fenders and a rack. Welcoming geometry and comfortable touch points.
Disc brakes make for a heavy bike
And the mechanical disc brakes here aren’t stellar. Heavy wheels and tyres make the bike feel more sluggish than it wants to be. Through-headset cable routing makes no sense on a bike with mechanical gears and brakes. Ultimately cheap gearing and brakes for a bike that
While Trek’s entry-level
Isn’t as affordable as it should be.
Sep 2023 · Calvin Zajac
Can the Trek Domane SLR 7 AXS Gen 4 prove to be the ultimate all-road bike and adventure buddy in our 2023 all-road group test?
Coherent and versatile concept
Very comfortable thanks to the inconspicuously integrated IsoSpeed system
Timeless look that you won’t get tired of looking at
Internally routed cables rattle loudly
Sep 2023 · Alvin Holbrook
Big tire clearance and lower weight give the new Trek Domane AL generation 4 all-road bike credibility both on road and on dirt.
Mar 2023 · Robin Wilmott
The Domane AL 4 Disc is a good budget endurance bike that’s excellent on the road and very capable away from it
Well rounded, coherent ride
Great comfort
Useful practicality
Crankset deviation
Squeaky-feeling saddle
Thin handlebar tape
Jan 2023 · Josh Croxton
Fewer Isospeeds means it's a little less comfortable, but the new Domane SLR 9 is fast, fun, and ready for an adventure
Easy to use storage compartment with neat & organising tool wrap
Simplified Isospeed vibration damping
38mm tyre clearance
Power meter included
Neat, low-maintenance integrated cockpit
Oh boy is it pricey
I would hope for top-spec tyres at this price
Oct 2022 · James Spender
The Domane is a tremendously smooth bike thanks to Trek’s IsoSpeed rear damping system and high volume, 32mm tubeless tyres
Comfort
Handling
Descending
Over-engineered
Sep 2022
The new Domane is everything great about the old bike, plus lighter and quicker.
Apr 2022 · Ben Delaney
Major changes include elimination of the seat mast, front IsoSpeed and adjustment on rear IsoSpeed.
| Frame | 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle BB Standard: BSA, 68mm, Threaded Tire Clearance: 35c Colors: Lithium Grey to Crimson Fade; Satin Trek Black |
|---|---|
| Fork | Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Bottom Bracket | Shimano RS500, 68mm, threaded external |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Stem | Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
| Handlebar | Size: 44, 49, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width; Size: 52, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 61, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width |
| Saddle | Size: 44, 49, 52, Bontrager Verse Comp, steel rails, 155mm width; Size: 54, 56, 58, 61, Bontrager Verse Comp, steel rails, 145mm width |
| Seatpost | Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length Type: Rigid |
| Rear Derailleur | Shimano 105 R7000, long cage, 34T max cog |
|---|---|
| Front Derailleur | Shimano 105 R7000, 31.8mm clamp |
| Crank | Size: 44, Shimano 105 R7000, 50/34 (compact), 165mm length; Size: 49, 52, Shimano 105 R7000, 50/34 (compact), 170mm length; Size: 54, 56, Shimano 105 R7000, 50/34 (compact), 172.5mm length; Size: 58, 61, Shimano 105 R7000, 50/34 (compact), 175mm length |
| Shifters | Shimano 105 R7020, 11 speed |
| Cassette | Shimano 105 HG700-11, 11-34, 11 speed |
| Chain | Shimano HG601, 11 speed |
| Brakes | Shimano 105 hydraulic disc, flat mount Type: Hydraulic Disc |
| Rims | Size: 44, 49, 52, 54, 56, 58, 61, Bontrager Affinity Disc, Tubeless Ready, 28-hole, 21mm width, Presta valve; Size: 49, 52, 54, 56, 58, 61, Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve; Size: 49, 52, 54, 56, 58, 61, Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve |
|---|---|
| Spokes | 14g stainless steel, black |
| Front Hub | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Tires | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm |
| Disc Rotors | Shimano RT70, centerlock, 160mm |
Last updated April 28
