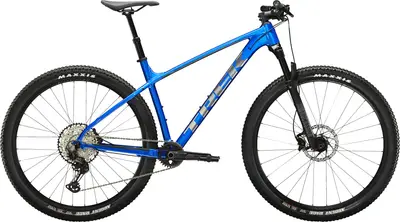

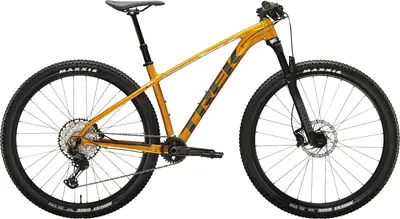

2022 Trek X-Caliber 9

A 27.5″ / 29″ aluminum frame hardtail crosscountry bike with high-end components, priced at the high end of the X-Caliber model range. Compare the full range

View on trekbikes.com

2022 Trek X-Caliber 9
MSRP$1,899
Weight27.6 lbs
SuspensionHardtail
Travel100mm front
FrameAluminum
ForkRockShox Recon Gold RL
Wheels27.5″ / 29″
Tire Clearance2.8"
Drivetrain1 × 12
GroupsetXT, SLX
BrakesHydraulic Disc
SeatpostDropper post
Where to Buy

Notify me when this bike becomes available or goes on sale.

Compare

Gearing

1 × 12 — 12 speed

X-Caliber 9

26 mph

Similar Bikes

27 mph

The X-Caliber 9 is easier to ride up hills than similar bikes.

The X-Caliber 9 won‘t keep up with similar bikes while riding downhill or sprinting.


Estimated Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more. Learn more

Spec level →$0$500$1,000$1,500
This bike
Other crosscountry bikes

Geometry

Sizing
SM

4'5" – 5'2"

MD

5'0" – 5'6"

MD/LG

5'3" – 5'8"

LG

5'5" – 5'11"

XL

5'9" – 6'3"

XXL

6'1" – 6'6"


Specs
Build
Frame

Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR

BB StandardBSA, 73mm, threaded

Tire Clearance2.8"

Fork

Size: S, RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 37mm offset, Boost110, 15mm Maxle Stealth, 100mm travel; Size: M, ML, L, XL, XXL, RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel

Bottom Bracket

Shimano SM-BB52, 73mm, threaded external bearing

Headset

Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8'' top, 1.5'' bottom

Stem

Size: S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, ML, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, XXL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length

Handlebar

Size: S, M, Bontrager alloy, 31.8mm, 5mm rise, 720mm width; Size: ML, L, XL, XXL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width

Saddle

Bontrager Arvada, steel rails, 138mm width

Seatpost

Size: S, M, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: ML, L, XL, XXL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length

Grips

Bontrager XR Trail Comp, nylon lock-on

Groupset
Rear Derailleur

Shimano XT M8100, long cage, 51T max cog

Crank

Size: S, M, Shimano MT611, 30T steel ring, alloy spider, Boost (52mm chainline), 170mm length; Size: ML, L, XL, XXL, Shimano MT611, 30T steel ring, alloy spider, Boost (52mm chainline), 175mm length

Shifters

Shimano SLX M7100, 12 speed

Cassette

Shimano SLX M7100, 10-51, 12 speed

Chain

Shimano SLX M7100, 12 speed

Brakes

Shimano hydraulic disc, MT4100 lever, MT410 caliper

Wheels
Rims

Size: S, M, ML, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve; Size: S, M, ML, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve

Front Hub

Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle

Rear Hub

Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR

Tires

Size: S, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35''; Size: M, ML, L, XL, XXL, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35''

Disk Rotors

Size: S, M, ML, L, XL, XXL, Shimano RT56, 6-bolt, 180mm; Size: S, M, ML, L, XL, XXL, Shimano RT56, 6-bolt, 160mm
