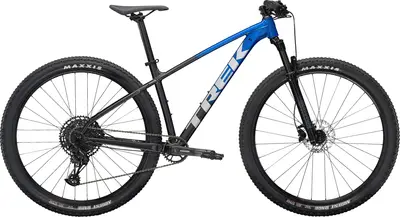

2022 Trek
Marlin 8
A 26″ / 27.5″ / 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.
Compare the full range
Manufacturer Price
$1,329| Weight | 29.1 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 80mm |
| Fork | RockShox Judy Silver TK |
| Wheels | 26″ / 27.5″ / 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | SX Eagle |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Marlin model range
View Comparison4'5" – 4'10"
5'0" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'1" – 6'6"
Sep 2023
Not only is the Trek Marlin one of the most searched bikes on our website, it's also Trek's best selling mountain bike! And for good ...
May 2023
Riders can expect updated geometry, a new frame, increased tire clearance and a rear axle system that "enhances stability," Trek said.
Feb 2023 · Oscar Huckle
Can the Marlin compete with the bigger players?
Lots of frame sizes
Excellent tyre choice
Dropper seatpost
Upgrade potential
Roomier seated position would be preferred
Quick-release rather than thru-axle
Rattly internal cable routing
Dec 2019
This cheap mountain bike is the perfect gateway drug to your next (trail riding) addiction.
Wide range of gears with 2x9 drivetrain
Wheels and tires aren’t tubeless-ready
Jun 2019 · Alan Muldoon
The first of two 29er to make it into the sub 500 category, the Trek Marlin 6 certainly didn't behave like a fish out of water.
Top-rate frame quality, available in seven sizes Independent Shimano shifters
Cable and chain rattle. Rear tyre is too skinny
| Frame | Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR BB Standard: BSA, 73mm, Threaded Tire Clearance: 2.2" Colors: Gloss Alpine / Gloss Dnister Fade; Gloss Radioactive Red / Nautical |
|---|---|
| Fork | Size: XXS, XS, RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel; Size: S, RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel; Size: M, ML, L, XL, XXL, RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel Travel: 80mm Spring Type: Air |
| Bottom Bracket | Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle |
| Headset | Semi-integrated, 1-1/8'' |
| Stem | Size: XXS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length; Size: XXS, XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: ML, L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, XXL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length |
| Handlebar | Size: XXS, XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: S, M, ML, L, XL, XXL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
| Seatpost | Size: XXS, Bontrager alloy, 31.6mm, 12mm offset, 300mm length; Size: XS, S, M, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: ML, L, XL, XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length Type: Rigid |
| Pedals | VP-536 nylon platform |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Rear Derailleur | SRAM SX Eagle |
|---|---|
| Crank | Size: XXS, SRAM SX Eagle, 30T steel ring, 49mm chainline, 155mm length; Size: XS, S, M, SRAM SX Eagle, 30T steel ring, 49mm chainline, 170mm length; Size: ML, L, XL, XXL, SRAM SX Eagle, 30T steel ring, 49mm chainline, 175mm length |
| Shifters | SRAM SX Eagle, 12 speed |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12 speed |
| Chain | SRAM SX Eagle, 12 speed |
| Brakes | Shimano MT200 hydraulic disc Type: Hydraulic Disc |
| Rims | Size: XXS, XS, S, M, ML, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve; Size: M, ML, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve |
|---|---|
| Front Hub | Formula DC-20 LW, alloy, 6-bolt, 5x100mm QR |
| Rear Hub | Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Tires | Size: XXS, Maxxis Ardent, tubeless, EXO casing, folding bead, 60tpi, 26x2.40''; Size: XS, S, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35''; Size: M, ML, L, XL, XXL, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35''; Size: M, ML, L, XL, XXL, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.20'' |
| Disc Rotors | Size: XXS, XS, S, M, ML, L, XL, XXL, Shimano RT26, 6-bolt,160mm; Size: L, XL, XXL, Shimano RT26, 6-bolt,180mm |
