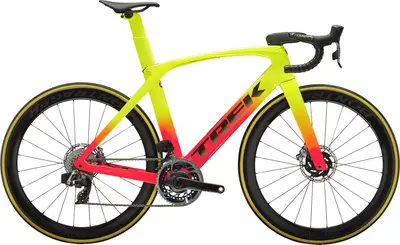

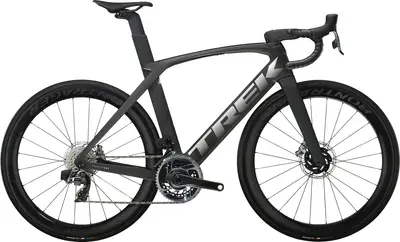

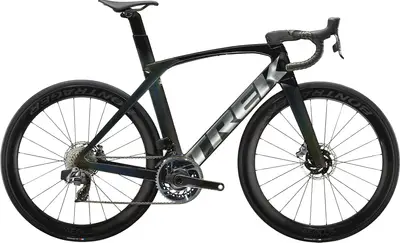

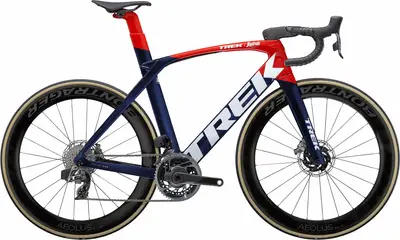

Madone SLR 9 eTap
A carbon frame aero bike with ultra high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$12,999Weight | 16.9 lbs |
---|---|
Frame | Carbon |
Suspension | Rigid |
Fork | Carbon |
Wheels | 700c Carbon |
Drivetrain | 2 × 12 Electronic |
Groupset | RED AXS |
Power Meter | Red AXS |
Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Madone model range
View Comparison4'11" – 5'3"
5'1" – 5'5"
5'3" – 5'7"
5'5" – 5'9"
5'8" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
6'2" – 6'5"
Dec 2022 · Sam Challis
The new Madone is leaner, meaner and wickedly quick
Very fast ride feel
Smart componentry design
Light weight
Comfort
Price
Narrow bars take some getting used to
Vulnerable in gusty conditions
Dec 2022 · Julian Schwede
Does the new IsoFlow system of the 2023 Trek Madone SLR 9 eTap Gen 7 really rise the bar in terms of aeroynamics and comfort?
Very balanced handling at high speeds
Reduced complexity and improved aerodynamics of the IsoFlow system
Customisation options thanks to the Project One configurator
High-quality workmanship
The damping of the IsoFlow system isn’t adjustable
The Bontrager R4 tires lack grip
Aug 2022 · Ashley Quinlan
One of the most visually striking and competent aero bikes available today
Quick handling
Very fast performance
Pro-level spec
Excellent handlebar
Slightly sensitive in crosswinds
25c clincher-only tyres fitted as standard
Limited tyre clearance against some competitors
Bolt boss finish
Jun 2022 · Matt Hansen
The frame features striking new tube shapes and radical rear triangle
Jun 2022 · James Huang
The seventh-generation Madone is lighter, faster, still kind of comfy, and has always-available DRS.
Mar 2022 · Ben Delaney
The Greek god of the winds invoked at three points on the sprinter's bike.
Nov 2021 · James Huang
Unusually good ride quality and the handling is brilliant, but it’s hard not to notice the heft when you point it uphill.
Superb aerodynamics, comfy ride, excellent handling, accommodating cockpit design, threaded bottom bracket.
So-so front-end ride, so heavy.
Jul 2020
What’s better than Trek’s Madone SLR? How about a Madone SLR that’s lighter? Or one with a different bottom bracket? If either of those sound good to you, then you’ll want to check out the 2021 Madone SLR. The SLR addition to the Madone name gives the indication that this isn’t your average Trek. In […]
Frame | 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S compatible, flat mount disc, 142x12mm thru axle BB Standard: T47, Threaded Tire Clearance: 28c Colors: Dark Prismatic / Trek Black; Team Replica: Navy Carbon Smoke / Viper Red; Team Replica: Navy Carbon Smoke / Blue; Matte Deep Smoke; Amethyst; Radioactive Coral to Yellow Fade |
---|---|
Fork | Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle |
Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
Stem | Size: 47, 50, 52, 54, Trek Madone aero, invisible cable routing, 7 degree, 90mm length; Size: 56, 58, Trek Madone aero, invisible cable routing, 7 degree, 100mm length; Size: 60, 62, Trek Madone aero, invisible cable routing, 7 degree, 110mm length |
Handlebar | Size: 47, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 38cm width; Size: 50, 52, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 40cm width; Size: 54, 56, 58, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 42cm width; Size: 60, 62, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 44cm width |
Saddle | Size: 47, 50, 52, Bontrager Aeolus P2 Pro, carbon rails, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Aeolus Pro, carbon rails, 145mm width |
Seatpost | Size: 47, 50, 52, 54, 56, 60, 62, Madone aero carbon internal seatmast cap, integrated light mount, 5mm offset, short length; Size: 58, 60, 62, Madone aero carbon internal seatmast cap, integrated light mount, 5mm offset, tall length Type: Rigid |
Rear Derailleur | SRAM RED eTap AXS, 36T max cog |
---|---|
Front Derailleur | SRAM RED eTap AXS, braze-on |
Crank | Size: 47, SRAM RED AXS Power Meter, 48/35, DUB spindle, 165mm length; Size: 50, 52, SRAM RED AXS Power Meter, 48/35, DUB, 170mm length; Size: 54, 56, 58, SRAM RED AXS Power Meter, 48/35, DUB, 172.5mm length; Size: 60, 62, SRAM RED AXS Power Meter, 48/35, DUB, 175mm length |
Power Meter | Size: 47, SRAM RED AXS Power Meter, 48/35, DUB spindle, 165mm length; Size: 50, 52, SRAM RED AXS Power Meter, 48/35, DUB, 170mm length; Size: 54, 56, 58, SRAM RED AXS Power Meter, 48/35, DUB, 172.5mm length; Size: 60, 62, SRAM RED AXS Power Meter, 48/35, DUB, 175mm length |
Shifters | SRAM RED eTap AXS, 12 speed |
Cassette | SRAM XG-1290, 10-33, 12 speed |
Chain | SRAM RED D1, 12 speed |
Brakes | Hydraulic Disc Type: Hydraulic Disc |
Rims | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle |
---|---|
Tires | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c |
Disc Rotors | SRAM CenterLine X, centerlock, round edge, 160mm |
