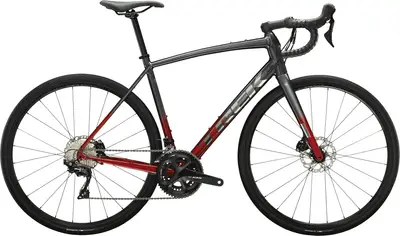

An aluminum frame endurance bike with upper mid-range components and hydraulic disc brakes, priced near the low end of the Domane model range.
MSRP | $2,099 |
---|---|
Weight | 22.3 lbs |
Frame | Aluminum |
Fork | Carbon |
Wheels | 700c |
Tire Clearance | 35c |
Drivetrain | 2 × 11 |
Groupset | 105 |
Brakes | Hydraulic Disc |
2 × 11 — 22 speed
Domane AL 5 Disc
Similar Bikes
The Domane AL 5 Disc is easier to ride up hills than similar bikes.
The Domane AL 5 Disc is geared about the same as similar bikes for riding downhill.
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more. Learn more
Mat Brett
Smooth-riding endurance bike with loads of tyre space and masses of versatility
July 2021Read Full Review
Tobias Hörsch
For our group test, Trek put stock in an ebike with a mid-motor drive and trust that the Domane+ LT 9 will be the best road bike of the 2021 season. With the additional power of the FAZUA Ride 50 Evation system, how does it compare to 14 of the most exciting bikes of the 2021 season? Find out here.
April 2021Read Full Review
Dave Rome
Trek's new entry-level road bike combines an endurance fit with sporty handling and a whole bunch of versatility.
January 2021Read Full Review
Terry McKall
Entry level road bike or weekday commuter? How about both
July 2020Read Full Review
You don't have to spend a fortune to get a great looking road bike with a ton of features. Trek's new Domane AL Disc is definitely worth a look.
July 2020Read Full Review
Troy Templin
Trek’s Domane+ offers added boost (sometimes)
April 2020Read Full Review
Richard Windsor
The versatile and comfortable Trek Domane SL 6 put to the test
December 2019Read Full Review
Stu Bowers
Hard to fault in marrying superb ride quality with outstanding comfort but just not convinced on the execution of the BITS compartment
December 2019Read Full Review
5'1" – 5'5"
5'3" – 5'7"
5'5" – 5'9"
5'7" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
🐐 Estimated
Frame | 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle BB Standard: BSA, 68mm, threaded Tire Clearance: 35c Colors: Lithium Grey / Trek Black; Lithium Grey to Crimson Fade; Factory Orange / Lithium Grey |
---|---|
Fork | Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Bottom Bracket | Shimano RS500, 68mm, threaded external |
Headset | FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
Stem | Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
Handlebar | Size: 44, 49, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width; Size: 52, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 61, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width |
Saddle | Size: 44, 49, 52, Bontrager P3 Verse Comp, steel rails, 155mm width; Size: 54, 56, 58, 61, Bontrager P3 Verse Comp, steel rails, 145mm width |
Seatpost | Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length |
Rear Derailleur | Shimano 105 R7000, long cage, 34T max cog |
---|---|
Front Derailleur | Shimano 105 R7000, 31.8mm clamp |
Crank | Size: 44, Shimano 105 R7000, 50/34 (compact), 165mm length; Size: 49, 52, Shimano 105 R7000, 50/34 (compact), 170mm length; Size: 54, 56, Shimano 105 R7000, 50/34 (compact), 172.5mm length; Size: 58, 61, Shimano 105 R7000, 50/34 (compact), 175mm length |
Shifters | Shimano 105 R7020, 11 speed |
Cassette | Shimano 105 HG700-11, 11-34, 11 speed |
Chain | Shimano HG601 |
Brakes | Shimano 105 hydraulic disc, flat mount |
Rims | Size: 44, 49, 52, 54, 56, 58, 61, Bontrager Affinity Disc, Tubeless Ready, 28-hole, 21mm width, presta valve; Size: 49, 52, 54, 56, 58, 61, Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, presta valve |
---|---|
Spokes | 14g stainless steel |
Front Hub | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
Rear Hub | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
Tires | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c |
Disk Rotors | Shimano SM-RT70, centerlock, 160mm |
