2021 Trek
X-Caliber 7

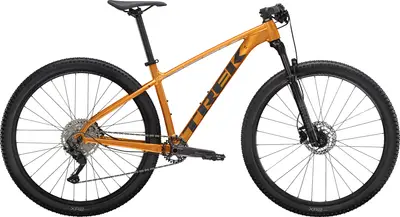

A 29″ / 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.
Compare the full range
| MSRP | $1,099 |
|---|---|
| Weight | 29.5 lbs |
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | RockShox Judy |
| Wheels | 29″ / 29″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full X-Caliber model range
View Comparison
| Frame | Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR Tire Clearance: 2.8" Colors: Factory Orange / Lithium Grey; Mulsanne Blue / Anthracite |
|---|---|
| Fork | Size: XS, RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, 100x5 mm QR, 80 mm travel; Size: S, RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, 100x5 mm QR, 100 mm travel; Size: M, M/L, L, XL, XXL, RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 46 mm offset, 100x5 mm QR, 100 mm travel Travel: 100mm Spring Type: Air |
| Headset | Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom |
| Stem | Size: XS, S, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length; Size: M, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: M/L, L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: XL, XXL, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Handlebar | Size: XS, Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width; Size: S, M, M/L, L, XL, XXL, Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: XS, S, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length; Size: M, Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length; Size: M/L, L, XL, XXL, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length Type: Rigid |
| Pedals | VP-536 nylon platform |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Rear Derailleur | Shimano Deore M5120, long cage |
|---|---|
| Crank | Size: XS, S, M, Shimano Deore M5100, 30T steel ring, Boost, 170 mm length; Size: M/L, L, XL, XXL, Shimano Deore M5100, 30T steel ring, Boost, 175 mm length |
| Shifters | Shimano Deore M4100, 10 speed |
| Cassette | Shimano Deore M4100, 11-46, 10-speed |
| Chain | KMC X10, 10-speed |
| Brakes | Shimano MT200 hydraulic disc Type: Hydraulic Disc |
| Rims | Size: XS, S, Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve; Size: M, M/L, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve; Size: M, M/L, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve |
|---|---|
| Spokes | 14 g stainless steel |
| Front Hub | Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew |
| Rear Hub | Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5 mm QR |
| Tires | Size: XS, S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"; Size: M, M/L, L, XL, XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20" |
| Disc Rotors | Size: XS, S, M, M/L, L, XL, XXL, Shimano RT26, 6-bolt,160 mm; Size: L, XL, XXL, Shimano RT26, 6-bolt,180 mm |
