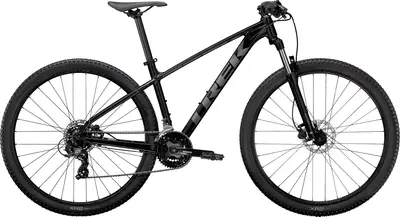

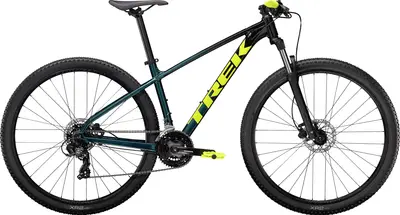

2021 Trek
Marlin 5
A 27.5″ / 29″ aluminum frame hardtail crosscountry bike with mid-range components.
Compare the full range
Manufacturer Price
$599| Weight | 31.8 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCE |
| Wheels | 27.5″ / 29″ Aluminum |
| Drivetrain | 3 × 7 |
| Groupset | Tourney, Altus |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Marlin model range
View Comparison
Dec 2019
This cheap mountain bike is the perfect gateway drug to your next (trail riding) addiction.
Wide range of gears with 2x9 drivetrain
Wheels and tires aren’t tubeless-ready
Jun 2019 · Alan Muldoon
The first of two 29er to make it into the sub 500 category, the Trek Marlin 6 certainly didn't behave like a fish out of water.
Top-rate frame quality, available in seven sizes Independent Shimano shifters
Cable and chain rattle. Rear tyre is too skinny
| Frame | Size: XS, S, Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR; Size: M, ML, L, XL, XXL, Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR BB Standard: BSA, 73mm, Threaded Tire Clearance: 2.2" Colors: Trek Black / Lithium Grey; Dark Aquatic / Trek Black; Factory Orange / Lithium Grey |
|---|---|
| Fork | Size: XS, SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel; Size: S, SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel; Size: M, ML, L, XL, XXL, SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel Travel: 100mm Spring Type: Coil |
| Bottom Bracket | VP BC73, 73 mm, threaded cartridge |
| Headset | Semi-integrated, 1-1/8'' |
| Stem | Size: XS, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length; Size: S, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length; Size: M, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length; Size: ML, L, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length; Size: XL, XXL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
| Handlebar | Size: XS, Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width; Size: S, M, ML, L, XL, XXL, Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: XS, S, M, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length; Size: ML, L, XL, XXL, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length Type: Rigid |
| Pedals | VP-536 nylon platform |
| Grips | Bontrager XR Endurance Comp |
| Rear Derailleur | Shimano Tourney TY300 |
|---|---|
| Front Derailleur | Shimano Tourney TY300, 34.9 mm clamp, down swing, down pull |
| Crank | Size: XS, S, M, Shimano Tourney TY301, 42/34/24, 170 mm length; Size: ML, L, XL, XXL, Shimano Tourney TY301, 42/34/24, 175 mm length |
| Shifters | Size: XS, S, M, ML, L, XL, XXL, Shimano Altus M315, 3-speed; Size: XS, S, M, ML, L, XL, XXL, Shimano Altus M315, 7 speed |
| Cassette | Shimano HG200, 12-32, 7-speed |
| Chain | KMC Z7, 7-speed |
| Brakes | Tektro HD-M275 hydraulic disc, 180 mm rotor Type: Hydraulic Disc |
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
|---|---|
| Spokes | 14 g stainless steel |
| Front Hub | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Rear Hub | Formula DC-27, alloy, 6-bolt, 7sp freehub, 135x5 mm QR |
| Tires | Size: XS, S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"; Size: M, ML, L, XL, XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"; Size: M, ML, L, XL, XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00" |
Last updated February 18
Not listed for 427 days
