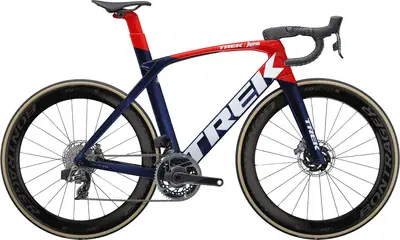

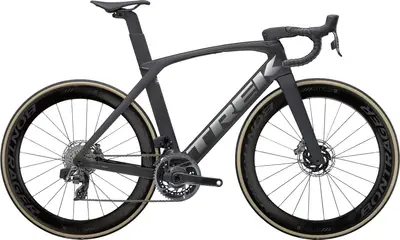

The 2021 Trek Madone SLR 9 eTap is a carbon frame aero bike with ultra high-end components and hydraulic disc brakes.
View on www.trekbikes.com
2 × 12 — 24 speed
The Madone SLR 9 eTap is easier to ride up hills than similar bikes.
The Madone SLR 9 eTap won‘t keep up with similar bikes while riding downhill or sprinting.
Estimated spec level of the Madone SLR 9 eTap compared to other race bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.
|Frame||800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S compatible, flat mount disc, 142x12mm thru axle|
|Fork||Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle|
|Bottom Bracket||SRAM DUB, T47 threaded, internal bearing|
|Stem||Trek Madone aero, invisible cable routing, 7 degree, 110mm length|
|Handlebar||Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 44cm width|
|Saddle||Bontrager Aeolus Pro, carbon rails, 145mm width|
|Seatpost||Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, tall length|
|Rear Derailleur||SRAM RED eTap AXS, Orbit chain management, 33T max cog|
|Front Derailleur||SRAM RED eTap AXS, braze-on|
|Crank||SRAM RED AXS Power Meter, 46/33, DUB spindle, 175mm length|
|Shifters||SRAM RED eTap AXS, 12 speed|
|Cassette||SRAM RED XG-1290, 10-33, 12 speed|
|Chain||SRAM RED D1, 12 speed|
|Brakes||SRAM Red eTap AXS hydraulic disc, flat mount|
|Rims||Bontrager Aeolus XXX 6, OCLV Carbon, Tubeless Ready, 21mm rim width, 60mm rim depth, 100x12mm thru axle|
|Tires||Bontrager R4 320 Handmade Clincher, Hard-Case Lite, 320 tpi, 700x25c|
