2021 Trek Madone SLR 9

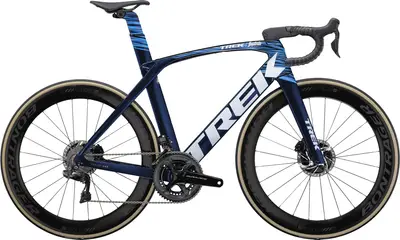

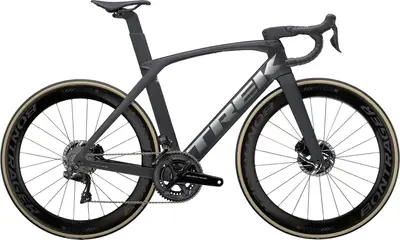

The 2021 Trek Madone SLR 9 is a carbon frame aero bike with ultra high-end components and hydraulic disc brakes.

View on www.trekbikes.com

2021 Trek Madone SLR 9
  • MSRP $12,499
  • Weight 17.2 lbs / 7.8 kg
  • Frame Carbon
  • Fork Carbon
  • Wheels 700c Carbon
  • Drivetrain 2 × 11 Electronic
  • Groupset Dura-Ace Di2
  • Brakes Hydraulic Disc

Where to Buy

Gearing

2 × 11 — 22 speed

2021 Trek Madone SLR 9
37 mph
Similar Bikes
40 mph

The Madone SLR 9 is easier to ride up hills than similar bikes.

The Madone SLR 9 won‘t keep up with similar bikes while riding downhill or sprinting.


Estimated Spec Level

Estimated spec level of the Madone SLR 9 compared to other race bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.

Learn more

est. spec level →$0$2,000$4,000$6,000$8,000$10,000$12,000
This bike
Other race bikes

Reviews

Geometry

Specs
Build
Frame800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
ForkMadone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Bottom BracketPraxis, T47 threaded, internal bearing
StemTrek Madone aero, invisible cable routing, 7 degree, 110mm length
HandlebarTrek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 44cm width
SaddleBontrager Aeolus Pro, carbon rails, 145mm width
SeatpostMadone aero carbon internal seatmast cap, integrated light mount, 25mm offset, tall length
Groupset
Rear DerailleurShimano Dura-Ace Di2 R9150, short cage, 30T max cog
Front DerailleurShimano Dura-Ace Di2 R9150, braze-on
CrankShimano Dura-Ace R9100-P Power Meter, 52/36, 175mm length
ShiftersShimano Dura-Ace Di2 R9170, 11 speed
CassetteShimano Dura-Ace R9100, 11-30, 11 speed
ChainShimano Dura-Ace 9000, 11 speed
BrakesShimano Dura-Ace hydraulic disc, flat mount
Wheels
RimsBontrager Aeolus XXX 6, OCLV Carbon, Tubeless Ready, 21mm rim width, 60mm rim depth, 100x12mm thru axle
TiresBontrager R4 320 Handmade Clincher, Hard-Case Lite, 320 tpi, 700x25c
Disk RotorsShimano RT900, 160mm, centerlock
