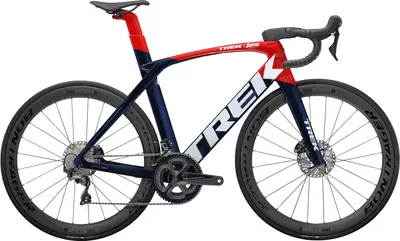

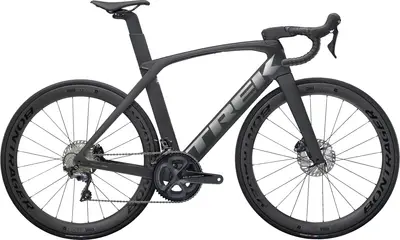

2021 Trek
Madone SLR 6
A carbon frame aero bike with high-end components and hydraulic disc brakes.
Manufacturer Price
$6,899| Weight | 18.2 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Carbon |
| Drivetrain | 2 × 11 |
| Groupset | Ultegra |
| Brakes | Hydraulic Disc |
For This Bike
5'4" – 5'7"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2022 · Matt Hansen
The frame features striking new tube shapes and radical rear triangle
Mar 2022 · Ben Delaney
The Greek god of the winds invoked at three points on the sprinter's bike.
Jul 2020
What’s better than Trek’s Madone SLR? How about a Madone SLR that’s lighter? Or one with a different bottom bracket? If either of those sound good to you, then you’ll want to check out the 2021 Madone SLR. The SLR addition to the Madone name gives the indication that this isn’t your average Trek. In […]
Jul 2020 · Sam Challis
Trek says the ‘OCLV 800’ carbon fibre layup saves its Madone SLR frameset 80g without affecting stiffness or aerodynamics
Dec 2019 · Symon Lewis
Cycling Weekly has shown that the Trek Madone is one of the fastest aero bikes available today, but has the update with discs made it even better? I certainly think so
Ride quality
Performance
Comfort
Stiffness
Weight
Jun 2019 · David Arthur @davearthur
Seriously fast aero race bike with great handling, but not the smoothest and not the ultimate spec it should be
Mar 2019 · Warren Rossiter
Winner of best superbike in our annual Bike of the Year awards is the latest evolution of Trek’s flagship aero bike
Groundbreaking comfort, stunning handling and seriously rapid
Five-figure price tag
Nov 2018 · Manuel Buck
Das Beste. The Best. Le Meilleur. The latest generation of the Trek Madone SLR 9 Disc promises to be even faster, more aerodynamic and lighter.
| Frame | 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S compatible, flat mount disc, 142x12mm thru axle BB Standard: T47, Threaded Tire Clearance: 28c Colors: Navy Carbon Smoke / Viper Red; Navy Carbon Smoke / Blue; Matte Onyx Carbon |
|---|---|
| Fork | Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Stem | Size: 47, 50, 52, 54, Trek Madone aero, invisible cable routing, 7 degree, 90mm length; Size: 56, 58, Trek Madone aero, invisible cable routing, 7 degree, 100mm length; Size: 60, 62, Trek Madone aero, invisible cable routing, 7 degree, 110mm length |
| Handlebar | Size: 47, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 38cm width; Size: 50, 52, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 40cm width; Size: 54, 56, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 60, 62, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 44cm width |
| Saddle | Bontrager Aeolus Elite, austenite rails, 145mm width |
| Seatpost | Size: 47, 50, 52, 54, 56, Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, short length; Size: 58, 60, 62, Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, tall length Type: Rigid |
| Rear Derailleur | Shimano Ultegra R8000, short cage, 30T max cog |
|---|---|
| Front Derailleur | Shimano Ultegra R8000, braze-on |
| Crank | Size: 47, Shimano Ultegra R8000, 52/36, 165mm length; Size: 50, 52, Shimano Ultegra R8000, 52/36, 170mm length; Size: 54, 56, Shimano Ultegra R8000, 52/36, 172.5mm length; Size: 58, 60, 62, Shimano Ultegra R8000, 52/36, 175mm length |
| Shifters | Shimano Ultegra R8020, 11-speed |
| Cassette | Shimano Ultegra R8000, 11-30, 11 speed |
| Chain | Shimano Ultegra HG701, 11-speed |
| Brakes | Shimano Ultegra hydraulic disc, flat mount Type: Hydraulic Disc |
| Rims | Front: Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 100x12 thru axle, Rear: Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 142x12 thru axle |
|---|---|
| Tires | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c |
| Disc Rotors | Shimano RT800, centerlock, 160mm |
Last updated July 29
