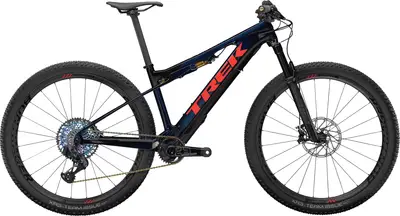

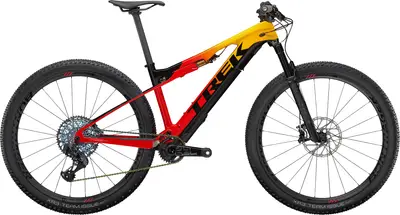

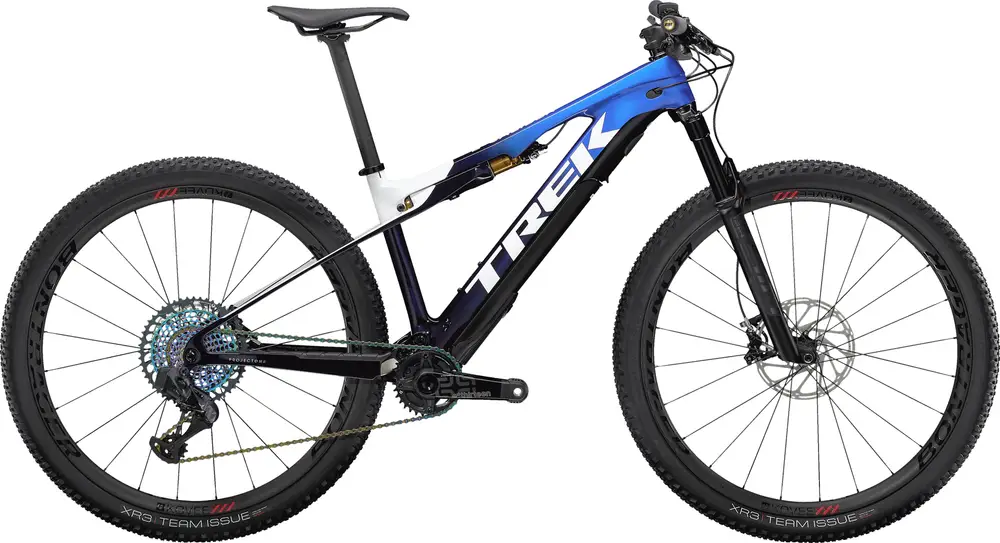

E-Caliber 9.9 XX1 AXS
A 29″ carbon frame full suspension crosscountry e-bike with ultra high-end components.
Manufacturer Price
$12,699Weight | 36.0 lbs |
---|---|
Frame | Carbon |
Suspension | Full, 60 / 120mm |
Fork | RockShox SID Ultimate |
Shock | Fox Float DPS Factory |
Wheels | 29″ Carbon |
Drivetrain | 1 × 12 Electronic |
Groupset | XX1 Eagle AXS, SRAM |
Motor | Fazua 250W 55Nm mid-drive |
Battery | Fazua 250Wh |
Brakes | Hydraulic Disc |
For This Bike
5'1" – 5'6"
5'4" – 5'11"
5'8" – 6'3"
6'1" – 6'5"
Apr 2021 · James Bracey
The new Trek E-Caliber 9.9 XTR electric XC mountain bike has got the looks, spec and price to turn heads and could be a glimpse into the e-bike future.
Almost zero negative transition when pushing the E-Caliber past the motor cut-off.
The combined low weight and non-invasive nature of the Fazua motor system creates a marvellously natural feeling e-bike.
Front and rear end offer different performance characteristics.
Range is disappointing.
You could buy a Supercaliber or a Slash, and a Rail e-bike for less than the cost of the E-Caliber 9.9 XTR.
Feb 2021 · Ryan Palmer
The Trek E-Caliber is based off the Supercaliber, Trek’s lightest, fastest, World Cup Cross Country race machine.
Feb 2021
Price: $11499.99.00 | Model Year: 2021 | One of the lightest and fastest full suspension cross country ebikes available today, weighing just 36.6lbs with pedals. Carbon frame, crank arms, seat post, handlebar, and rims, the bike comes in four sizes. Designed around Boost hub spacing with 15mm and 12mm thru-axles for improved stiffness and support for wider tires. The battery and motor are built into a removable drivepack that can be swapped for an empty storage box so you can ride as a lightweight acoustic bike at just 30.1lbs.
One of the lightest and fastest full suspension cross country ebikes available today, weighing just 36.6lbs with pedals. Carbon frame, crank arms, seat post, handlebar, and rims, the bike comes in four sizes. Designed around Boost hub spacing with 15mm and 12mm thru-axles for improved stiffness and support for wider tires. The battery and motor are built into a removable drivepack that can be swapped for an empty storage box so you can ride as a lightweight acoustic bike at just 30.1lbs.
High quality Fox Factor air shocks front and rear. Unique single pivot strut design in the rear eliminates chain length changes and kickback while keeping weight as low as possible. Both shocks deliver remote lockout through a single lever near the left grip, which allows for efficient transitions from smooth to rough terrain. The bike ships with an additional lever that mounts at the dropper module for an optional seat post dropper.
Quiet Fazua motor is lighter than most competing products but still provides good torque for steeper climbs, up to 55 newton meters. Exceptional 12-speed Shimano XTR drivetrain with enormous 10-51 tooth cassette and narrow-wide chainring to reduce drops on bumpy terrain. The XTR shifters perform very well and the rear hub has additional pawls for near instant pickup when you begin pedaling.
Limited 252 watt hour battery capacity compared to other current-generation products, and the battery must be removed from the frame every time you wish to charge. The locking core for the battery uses the preferred ABUS Plus Code keys (to match with locks) but is on the non-drivetrain side of the bike, which is difficult to reach if the bike is laid down. Relatively high price tag for this premium model, but four other builds give you lots of choice. Very basic display but there's an optional mobile app for more feedback.
Feb 2021 · Rudolf Fischer
With the E-Caliber 9.9 XTR 2021, Trek have managed to make a lightweight, 16.3 kg eMTB reality. You can find out whether the concept makes sense here.
Light-footed handling
Appealing and customisable motor concept
Look with guaranteed race flair
Limited range of application
Weak trail performance
Missing dropper post
High price
Frame | OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel Tire Clearance: 2.4" Colors: Gloss Radioactive Red / Matte Black; Alpine Navy Smoke / Trek White; Marigold to Radioactive Red Fade; Carbon Blue Smoke |
---|---|
Fork | RockShox SID Ultimate, DebonAir spring, Charger Race Day damper, remote lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel Travel: 120mm Spring Type: Air |
Shock | Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235mm x 32.5mm Travel: 60mm Spring Type: Air |
Headset | Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |
Stem | Size: S, M, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm length; Size: L, XL, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 70mm length |
Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width |
Saddle | Bontrager Verse Pro, carbon rails, 145mm width |
Seatpost | Size: S, Bontrager XXX, OCLV Carbon, 31.6mm, 0mm offset, 330mm length; Size: M, L, XL, Bontrager XXX, OCLV Carbon, 31.6mm, 0mm offset, 400mm length Type: Rigid |
Grips | ESI Chunky |
Rear Derailleur | SRAM XX1 Eagle AXS |
---|---|
Crank | E*thirteen E*spec Race Carbon, 32T, 175mm length |
Shifters | SRAM Eagle AXS, wireless, 12 speed |
Cassette | SRAM Eagle XG-1299, 10-52, 12 speed |
Chain | SRAM XX1 Eagle, 12 speed |
Brakes | Shimano XTR M9120 4-piston hydraulic disc Type: Hydraulic Disc |
Rims | Front: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, centerlock, Boost110, 15mm thru axle, Rear: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, DT Swiss 54T engagement, centerlock, SRAM XD driver, Boost148, 12mm thru axle |
---|---|
Tires | Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40'' |
Disc Rotors | Size: S, M, L, XL, Shimano MT900, 203mm, centerlock; Size: S, M, L, XL, Shimano EM910, 180mm, centerlock |
Motor | Fazua Evation Drive Pack, 20mph max assist |
---|---|
Battery | Fazua Evation battery, 250Wh Recycling Program: ♻️ Call2Recycle |
Charger | Fazua Evation charger, 90-120V |
