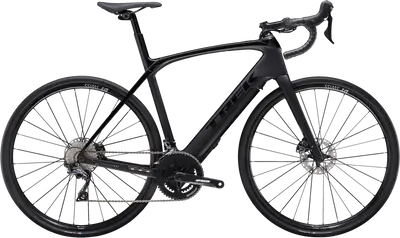

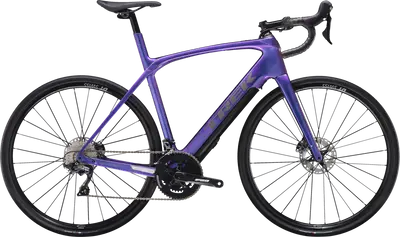

Domane+ LT Gen 1
A carbon frame endurance e-bike with high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$5,999Weight | 32.4 lbs |
---|---|
Frame | Carbon |
Suspension | Rigid |
Fork | Carbon |
Wheels | 700c Aluminum |
Drivetrain | 2 × 11 |
Groupset | Ultegra, FSA |
Motor | Fazua 250W 55Nm mid-drive |
Battery | Fazua 250Wh |
Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Domane+ model range
View Comparison5'2" – 5'5"
5'3" – 5'7"
5'5" – 5'9"
5'8" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
6'2" – 6'5"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Oct 2022 · William Tracy
Trek takes a leap forward in its e-road bikes.
Apr 2021 · Tobias Hörsch
For our group test, Trek put stock in an ebike with a mid-motor drive and trust that the Domane+ LT 9 will be the best road bike of the 2021 season. With the additional power of the FAZUA Ride 50 Evation system, how does it compare to 14 of the most exciting bikes of the 2021 season? Find out here.
Torque sensor means motor delivers power naturally
Good comfort thanks to IsoSpeed and tire choice
High stability and efficiency
Wide range of applications thanks to the motor, mudguard mounts and integrated light
Wider Q-factor than normal bikes
To activate the FAZUA system after 8 h of inactivity, the battery has to be removed and reinstalled.
Limited range of adjustment of saddle height due to short seat mast cap
Feb 2021 · Warren Rossiter
Plush endurance bike with an e-kick
Glorious Domane comfort
Unobtrusive assistance
Great range potential
High price
Doesn’t include the down-tube cover for non-ebike use
Sep 2020
The new 2021 Trek Domane+ ALR e-road bike takes the same lightweight Fazua Evation system from the carbon bicycle, but wraps it in alloy.
Apr 2020 · Troy Templin
Trek’s Domane+ offers added boost (sometimes)
Dec 2019 · Lily Hansen-Gillis
Ultra lightweight, Fazua powered and ready punch up the pace
Nov 2018 · Leah Flickinger
Ride faster, ride farther, and make hills smaller with this powerful e-road bike.

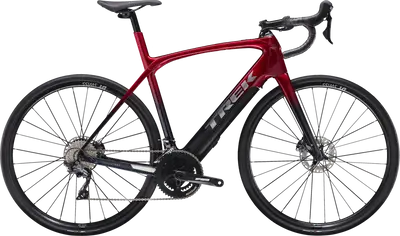

Frame | 500 Series OCLV Carbon, Fazua Evation integrated drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 148x12mm thru axle Tire Clearance: 38c Color: Rage Red to Deep Dark Blue Fade |
---|---|
Fork | Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Stem | Size: 50, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 60, 62, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 110mm length |
Handlebar | Size: 50, 52, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 60, 62, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width |
Saddle | Size: 50, 52, 54, 56, 58, 60, 62, Bontrager Arvada Comp, steel rails, 138mm width; Size: 50, 52, 54, 56, 58, 60, 62, Bontrager Arvada Elite, stainless steel rails, 138mm width |
Seatpost | Size: 50, 52, 54, 56, Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, short length; Size: 58, 60, 62, Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, tall length Type: Rigid |
Rear Derailleur | Shimano Ultegra R8000, long cage, 34T max cog |
---|---|
Front Derailleur | Shimano Ultegra R8000, braze-on |
Crank | Size: 50, 52, FSA Alloy for Fazua, 50/34 chainrings, 170mm length; Size: 54, 56, FSA Alloy for Fazua, 50/34 chainrings, 172.5mm length; Size: 58, 60, 62, FSA Alloy for Fazua, 50/34 chainrings, 175mm length |
Shifters | Shimano Ultegra R8020, 11 speed |
Cassette | Shimano Ultegra HG800, 11-34, 11 speed |
Chain | Shimano Ultegra HG701, 11 speed |
Brakes | Shimano Ultegra hydraulic disc, flat mount Type: Hydraulic Disc |
Rims | Front: DT Swiss G1800, tubeless compatible, 100x12mm thru axle, Rear: DT Swiss G1800, tubeless compatible, 148x12mm thru axle |
---|---|
Tires | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm |
Disc Rotors | Size: 50, 52, 54, 56, 58, 60, 62, Shimano MT800, centerlock, 160mm; Size: 50, 52, 54, 56, 58, 60, 62, Shimano EM810, centerlock 160mm |
Motor | Fazua Evation Drive Pack, 20mph max assist |
---|---|
Battery | Fazua Evation battery, 250Wh Recycling Program: ♻️ Call2Recycle |
Charger | Fazua Evation charger, 90-120V |
