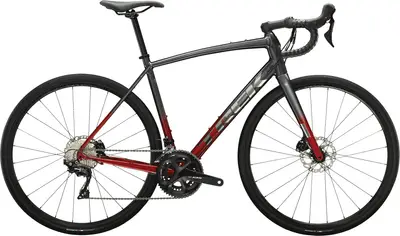

Domane AL 5 Disc
An aluminum frame endurance bike with upper mid-range components and hydraulic disc brakes.
Manufacturer Price
$2,029Weight | 22.2 lbs |
---|---|
Frame | Aluminum |
Suspension | Rigid |
Fork | Carbon |
Wheels | 700c Aluminum |
Drivetrain | 2 × 11 |
Groupset | 105 |
Brakes | Hydraulic Disc |
For This Bike
5'1" – 5'5"
5'3" – 5'7"
5'5" – 5'9"
5'8" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
Oct 2022 · James Spender
The Domane is a tremendously smooth bike thanks to Trek’s IsoSpeed rear damping system and high volume, 32mm tubeless tyres
Comfort
Handling
Descending
Over-engineered
Sep 2022
The new Domane is everything great about the old bike, plus lighter and quicker.
Sep 2022 · William Tracy
Trek has simplified its endurance frame and put it on a diet for a more enjoyable ride.
Oct 2021 · Ben Delaney
Lizzie Deignan (Trek-Segafredo) rode off the front of the peloton on the pavé and into the history books on Saturday, winning the first ever Paris-Roubaix Femmes aboard a Trek Domane with some custom touches. Deignan said her solo attack was definitely not the team plan, but that once she had a gap, she just kept … Continued
Jul 2021 · Mat Brett
Smooth-riding endurance bike with loads of tyre space and masses of versatility
Smooth ride
Space for big tyres
Internal storage
Not especially light
Jan 2021 · Dave Rome
Trek's new entry-level road bike combines an endurance fit with sporty handling and a whole bunch of versatility.
Huge tyre clearance, unique geometry is great for the purpose, quite comfortable ride quality, easy to service and upgrade, rides lighter than it feels to pick up, Shimano Tiagra just works, rim width, quality thru-axles.
Basic and heavy frame, making the bike tubeless requires new tyres and a handful of parts, extremely heavy wheels (especially given the bike’s price), handlebar drop shape is too compact.
Jul 2020 · Terry McKall
Entry level road bike or weekday commuter? How about both
Jul 2020
You don't have to spend a fortune to get a great looking road bike with a ton of features. Trek's new Domane AL Disc is definitely worth a look.
Frame | 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle BB Standard: BSA, 68mm, Threaded Tire Clearance: 35c Colors: Lithium Grey / Trek Black; Factory Orange / Lithium Grey; Lithium Grey to Crimson Fade |
---|---|
Fork | Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Bottom Bracket | Shimano RS500, 68mm, threaded external |
Headset | FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
Stem | Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
Handlebar | Size: 44, 49, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width; Size: 52, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 61, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width |
Saddle | Size: 44, 49, 52, Bontrager P3 Verse Comp, steel rails, 155mm width; Size: 54, 56, 58, 61, Bontrager P3 Verse Comp, steel rails, 145mm width |
Seatpost | Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length Type: Rigid |
Rear Derailleur | Shimano 105 R7000, long cage, 34T max cog |
---|---|
Front Derailleur | Shimano 105 R7000, 31.8mm clamp |
Crank | Size: 44, Shimano 105 R7000, 50/34 (compact), 165mm length; Size: 49, 52, Shimano 105 R7000, 50/34 (compact), 170mm length; Size: 54, 56, Shimano 105 R7000, 50/34 (compact), 172.5mm length; Size: 58, 61, Shimano 105 R7000, 50/34 (compact), 175mm length |
Shifters | Shimano 105 R7020, 11 speed |
Cassette | Shimano 105 HG700-11, 11-34, 11 speed |
Chain | Shimano HG601 |
Brakes | Shimano 105 hydraulic disc, flat mount Type: Hydraulic Disc |
Rims | Size: 44, 49, 52, 54, 56, 58, 61, Bontrager Affinity Disc, Tubeless Ready, 28-hole, 21mm width, presta valve; Size: 49, 52, 54, 56, 58, 61, Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, presta valve |
---|---|
Spokes | 14g stainless steel |
Front Hub | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
Rear Hub | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
Tires | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c |
Disc Rotors | Shimano SM-RT70, centerlock, 160mm |
