2020 Trek
X-Caliber 9
A 27.5″ aluminum frame hardtail crosscountry bike with upper mid-range components.
Compare the full range
| MSRP | $1,579 |
|---|---|
| Weight | 29.4 lbs |
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | RockShox Judy Silver TK |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT, Shimano |
| Brakes | Hydraulic Disc |
For This Bike
4'5" – 5'2"
5'0" – 5'6"
5'3" – 5'8"
5'5" – 5'11"
5'9" – 6'3"
6'1" – 6'6"
6'4" – 6'8"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2017
Trek's budget-friendly hardtails have evolved on two distinct paths, an affordable XC steed and a fun trail machine. Born out of the same frame, find out how these two bikes compare. - Mtbr.com
Apr 2017
If you're looking for a rapid handling cross-country hardtail then the X-Caliber delivers in spades, but it's a bit of a handful when the trail turns downhill thanks to steep geometry and a dated cockpit. Buyer's guide to mountain bikes - get the best MTB for you The best mountain bikes for under £1,000 - the best budget buys ridden and rated Trek launch updated 2020 X-Caliber aluminium hardtail cross-country bike The X-Caliber range is Trek's entry to their proper cross-country hardtail offerings, designed to tackle proper off-road riding rather than being a multi-sport machine.

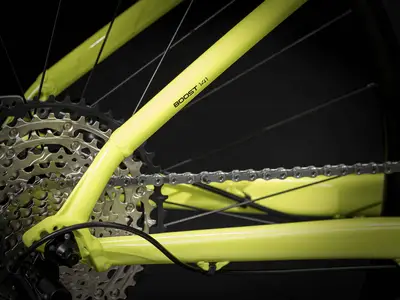

| Frame | Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR BB Standard: BSA, 73mm, Threaded Tire Clearance: 2.8" |
|---|---|
| Fork | Size: S, RockShox Judy Silver, Solo Air, TurnKey remote lockout, tapered steerer, Boost110, 15mm Maxle, 100mm travel; Size: M, ML, L, XL, XXL, RockShox Judy Silver, Solo Air spring, TurnKey remote lockout, tapered steerer, Boost110, 15mm Maxle Lite, 100mm travel Travel: 100mm Spring Type: Air |
| Bottom Bracket | Shimano SM-BB52, 73mm, threaded external bearing |
| Headset | Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8'' top, 1.5'' bottom |
| Stem | Size: S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: ML, L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, XXL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
| Handlebar | Bontrager alloy, 31.8mm, 5mm rise, 720mm width |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
| Seatpost | Size: S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: ML, L, XL, XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length Type: Rigid |
| Pedals | VP-536 nylon platform |
| Grips | Bontrager XR Trail Comp, nylon lock-on |

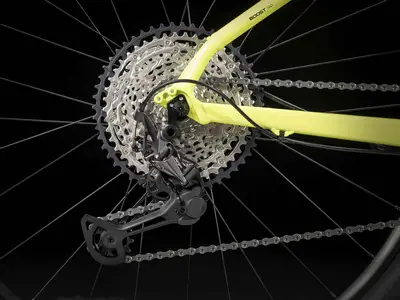

| Rear Derailleur | Shimano XT M8100, long cage, 51T max cog |
|---|---|
| Crank | Size: S, Shimano MT610, 30T steel ring, Boost (52mm chainline), 170mm; Size: S, Shimano MT611, 30T steel ring, alloy spider, Boost (52mm chainline), 170mm length; Size: M, ML, L, XL, XXL, Shimano MT610, 30T steel ring, Boost (52mm chainline), 175mm; Size: M, ML, L, XL, XXL, Shimano MT611, 30T steel ring, alloy spider, Boost (52mm chainline), 175mm length |
| Cassette | Shimano SLX M7100, 10-51, 12 speed |
| Chain | Shimano SLX M7100, 12 speed |

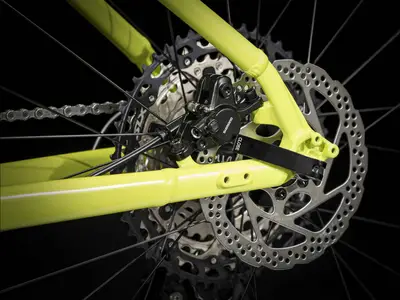

| Brakes | Size: S, M, ML, L, XL, XXL, Shimano hydraulic disc, MT401 lever, MT400 caliper; Size: S, M, ML, L, XL, XXL, Shimano hydraulic disc, MT4100 lever, MT410 caliper; Size: S, M, ML, L, XL, XXL, Shimano hydrauilc disc, MT4100 lever, MT410 caliper Type: Hydraulic Disc |
| Rims | Size: S, M, ML, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve; Size: S, M, ML, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve |
|---|---|
| Spokes | 15g stainless |
| Front Hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR |
| Tires | Size: S, Bontrager XR3 Comp, wire bead, 30 tpi, 27.5x2.20''; Size: M, ML, L, XL, XXL, Bontrager XR3 Comp, wire bead, 30tpi, 29x2.20'' |
| Disc Rotors | Size: S, M, ML, L, XL, XXL, Shimano RT56, 180mm, 6-bolt; Size: S, M, ML, L, XL, XXL, Shimano RT56, 160mm, 6-bolt |
