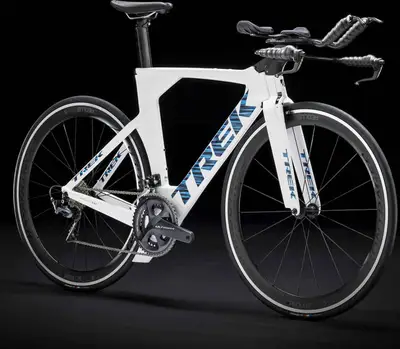

2020 Trek

Speed Concept

A carbon frame triathlon bike with ultra high-end components and rim brakes.

Manufacturer Price

$4,199
Weight20.0 lbs
FrameCarbon
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain2 × 11
GroupsetUltegra, Dura-Ace
BrakesRim
View on trekbikes.comLearn about Trek
Add to Comparison
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

39 mph

Speed Concept

40 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'0" – 5'7"

MD

5'5" – 5'10"

LG

5'8" – 6'2"

XL

6'0" – 6'6"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build

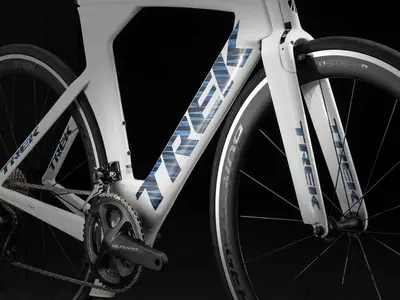

Frame

500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, BB90, Speed Fin compatible, DuoTrap compatible, SC Draft Box 2 & SC Speed Box 2 compatible

BB Standard: BB90, 90.5mm, Press Fit

Tire Clearance: 25c

Fork

SC full foil carbon, integrated brake & stem

Bottom Bracket

Trek BB90

Stem

Size: S, Bontrager Speed Concept, direct mount, 69mm rise, 67mm reach; Size: S, M, L, XL, Bontrager Speed Concept, direct mount [p]; Size: M, L, XL, Bontrager Speed Concept, direct mount, 61mm rise, 110mm reach

Handlebar

Bontrager Speed Concept KVF aero bar, carbon, direct mount, UCI legal

Saddle

Bontrager Hilo Comp, hollow chromoly rails

Seatpost

Size: S, Bontrager Speed Concept Race Lite, alloy, +/-20mm offset, 275mm length; Size: M, L, XL, Bontrager Speed Concept Race Lite, alloy, +/-20mm offset, 335mm length

Type: Rigid

Groupset
Rear Derailleur

Shimano Ultegra R8000, short cage, 30T max cog

Front Derailleur

Shimano Ultegra R8000, braze-on

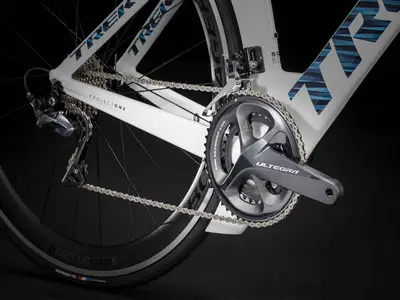

Crank

Size: S, Shimano Ultegra R8000, 50/34 (compact), 165mm length; Size: M, Shimano Ultegra R8000, 50/34 (compact), 170mm length; Size: L, Shimano Ultegra R8000, 50/34 (compact), 172.5mm length; Size: XL, Shimano Ultegra R8000, 50/34 (compact), 175mm length

Shifters

Shimano Dura-Ace, bar end, 11 speed

Cassette

Shimano Ultegra R8000, 11-28, 11 speed

Chain

Shimano Ultegra HG701, 11-speed

Brakes

Bontrager Speed Limit integrated, Bontrager Race Lite aero levers

Type: Rim

Brake Levers

Bontrager Race Lite aero

Wheels
Rims

Front: Bontrager Aeolus Comp, OCLV Carbon, Tubeless Ready, 100x5mm QR, Rear: Bontrager Aeolus Comp, OCLV Carbon, Tubeless Ready, Shimano 11-speed freehub, 130x5mm QR

Tires

Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x25c

Rider Notes
