2020 Trek
Rail 5
A 29″ aluminum frame full suspension enduro e-bike with high-end components.
Compare the full range
Manufacturer Price
$4,999| Weight | 51.9 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 150 / 160mm |
| Fork | RockShox 35 Gold RL |
| Shock | RockShox Deluxe Select+ |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | SX Eagle, X1 |
| Motor | Bosch 250W 75Nm mid-drive |
| Battery | Bosch 500Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Oct 2021
Great performance e-bike, killer motor tune, but so many glitchy electronic accessories.
Oct 2021 · Matt Beer
The Rail 9.9 now has a 750Wh battery and geometry numbers that are similar to the Slash's.
Jun 2021
Trek's Rail e-bike platform is smooth, powerful, and successfully walks the line between trail bike and something bigger.
Nov 2020 · Danny Milner
If Tonka did mountain bikes, we reckon they would look a lot like the Trek Rail 9. Pumped up in all directions, the Rail is like a two-wheel linebacker.
Enduro-bike pace and composure coupled with a superb motor
Tyres don’t do the bike justice
Oct 2020 · Berne Broudy
Trek’s long-travel Rail 9.9 soars up climbs and crushes descents, rolling on top-end suspension with electronic shifting and dropper.
Jun 2020 · Knut
The Rail 7 is an alloy bike that costs €5.499. It is the only model in the line-up running the 12-speed Shimano drivetrain.
Mar 2020
The Trek Rail 9.9 is our All Mountain ebike of the year! The Rail is an incredibly versatile eMTB that crosses off the most boxes for most riders. See why we liked it so much in our full Trek Rail 9.9 review here.
| Frame | Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel Tire Clearance: 2.6" |
|---|---|
| Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, e-MTB optimized, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel Travel: 160mm Spring Type: Air |
| Shock | RockShox Deluxe Select+, 230x57.5mm Travel: 150mm Spring Type: Air |
| Stem | Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
| Seatpost | Size: S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length Type: Dropper |
| Pedals | VP-536 nylon platform |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Rear Derailleur | SRAM SX Eagle |
|---|---|
| Crank | SRAM X1 1000, 36T, 165mm length |
| Shifters | SRAM SX Eagle single-click, 12 speed |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12 speed |
| Chain | SRAM SX Eagle, 12 speed |

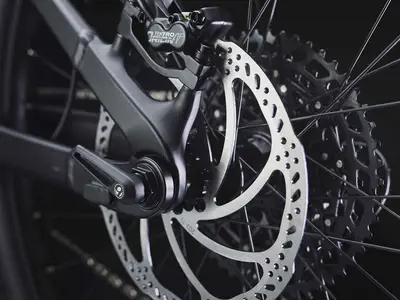

| Brakes | Tektro HD-M745 4-piston hydraulic disc Type: Hydraulic Disc |
| Rims | Alex MD35, Tubeless Ready, 32-hole, 35mm width, presta valve |
|---|---|
| Front Hub | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru axle |
| Tires | Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60'' |
| Disc Rotors | Tektro, 203mm, 6-bolt |
| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 75 Nm, 20mph or 32km/h max assist |
|---|---|
| Battery | Bosch PowerTube 500 Recycling Program: ♻️ Call2Recycle |
| Charger | Bosch compact 2A (100-240V) charger |
Last updated July 17
Not listed for 1,373 days
