2020 Trek
Marlin 5 Women's

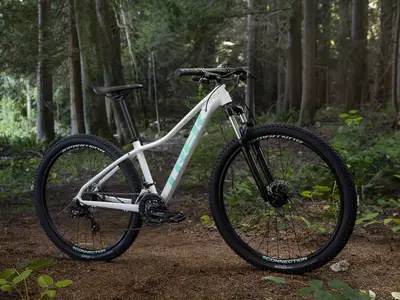

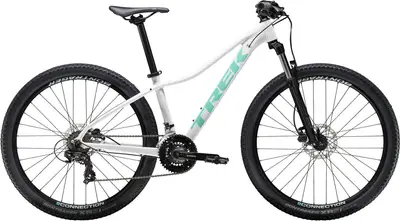

A 27.5″ / 29″ aluminum frame hardtail women’s crosscountry bike with mid-range components.
Compare the full range
Manufacturer Price
$549| Weight | 30.9 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCE |
| Wheels | 27.5″ / 29″ Aluminum |
| Drivetrain | 3 × 7 |
| Groupset | Tourney, Altus |
| Brakes | Hydraulic Disc |
For This Bike
4'5" – 5'2"
5'0" – 5'6"
5'3" – 5'8"
5'5" – 5'11"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Dec 2019
This cheap mountain bike is the perfect gateway drug to your next (trail riding) addiction.
Wide range of gears with 2x9 drivetrain
Wheels and tires aren’t tubeless-ready
Jun 2019 · Alan Muldoon
The first of two 29er to make it into the sub 500 category, the Trek Marlin 6 certainly didn't behave like a fish out of water.
Top-rate frame quality, available in seven sizes Independent Shimano shifters
Cable and chain rattle. Rear tyre is too skinny
| Frame | Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR BB Standard: BSA, 73mm, Threaded Tire Clearance: 2.2" |
|---|---|

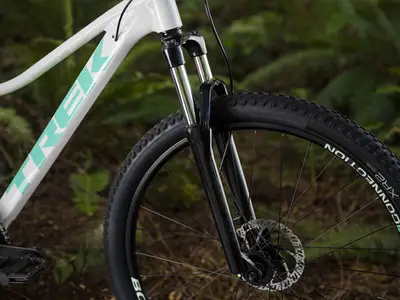

| Fork | Size: XS, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel; Size: S, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel; Size: M, ML, SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel Travel: 100mm Spring Type: Coil |
| Bottom Bracket | VP BC73, 73mm, threaded cartridge |
| Headset | Semi-integrated, 1-1/8'' |
| Stem | Size: XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: S, M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: ML, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length |
| Handlebar | Size: XS, S, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: M, ML, Bontrager alloy, 31.8mm, 5mm rise, 720mm width |
| Saddle | Bontrager Ajna Women's |
| Seatpost | Size: XS, S, M, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: ML, Bontrager alloy, 31.6mm, 12mm offset, 400mm length Type: Rigid |
| Pedals | VP-536 nylon platform |
| Grips | Bontrager XR Endurance Comp, lock-on |

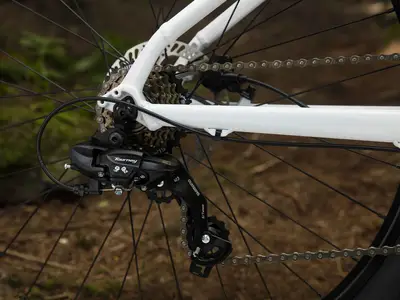

| Rear Derailleur | Shimano Tourney TY300, long cage, 34T max cog |
|---|---|
| Front Derailleur | Shimano Tourney TY300, 34.9mm clamp, down swing, down pull |

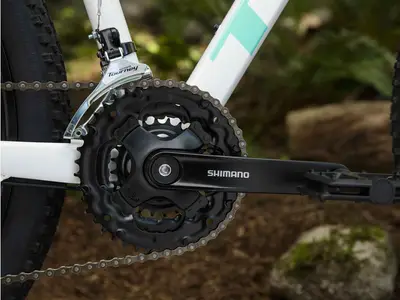

| Crank | Size: XS, S, M, Shimano Tourney TY301, 42/34/24, 170mm length; Size: M, ML, Shimano Tourney TY301, 42/34/24, 175mm length |
| Shifters | Size: XS, S, M, ML, Shimano Altus M315, 3 speed; Size: XS, S, M, ML, Shimano Altus M315, 7 speed |
| Cassette | Shimano HG200, 12-32, 7 speed |
| Chain | KMC Z7, 7 speed |

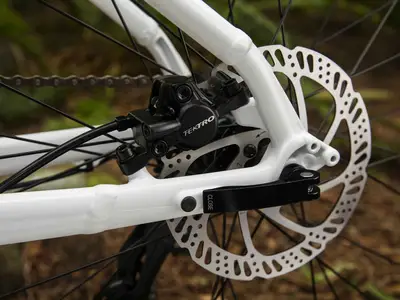

| Brakes | Size: XS, S, Tektro HD-M276 hydraulic disc, short reach lever; Size: M, ML, Tektro HD-M275 hydraulic disc Type: Hydraulic Disc |

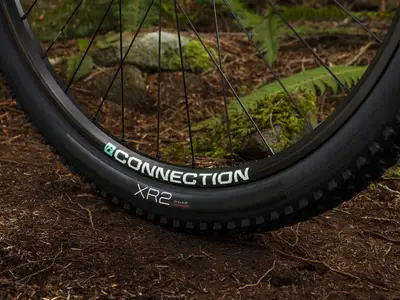

| Rims | Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
|---|---|
| Spokes | 14g, stainless steel, black |
| Front Hub | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
| Rear Hub | Size: XS, S, M, ML, Formula DC-27, alloy, 6-bolt, 7sp freehub, 135x5mm QR; Size: XS, S, M, ML, Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Tires | Size: XS, S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''; Size: M, ML, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''; Size: M, ML, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00'' |
