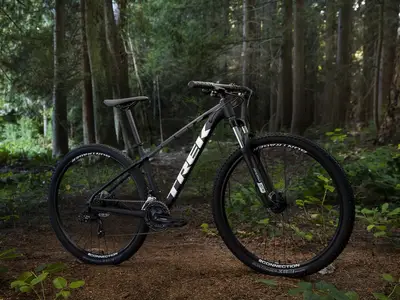

2020 Trek

Marlin 5

A 27.5″ / 29″ aluminum frame hardtail crosscountry bike with mid-range components.
Compare the full range

Manufacturer Price

$549
Weight32.2 lbs
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCE
Wheels27.5″ / 29″ Aluminum
Drivetrain3 × 7
GroupsetTourney, Altus
BrakesHydraulic Disc
View on trekbikes.comLearn about Trek
Add to Comparison
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Marlin 5
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

Marlin 5

27 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

4'5" – 5'2"

SM

5'0" – 5'6"

MD

5'3" – 5'8"

MD/LG

5'5" – 5'11"

LG

5'9" – 6'3"

XL

6'1" – 6'6"

XXL

6'4" – 6'8"

Rider Fit Notes
  • 6'3", size XL, Just right
View details
Reviews
Bicycling
The Trek Marlin 7 Has The Heart Of A Race Bike

Dec 2019

This cheap mountain bike is the perfect gateway drug to your next (trail riding) addiction.

Highs

  • Wide range of gears with 2x9 drivetrain

Lows

  • Wheels and tires aren’t tubeless-ready

Read Review

MBR
Trek Marlin 6 review - MBR

Jun 2019 · Alan Muldoon

The first of two 29er to make it into the sub 500 category, the Trek Marlin 6 certainly didn't behave like a fish out of water.

Highs

  • Top-rate frame quality, available in seven sizes Independent Shimano shifters

Lows

  • Cable and chain rattle. Rear tyre is too skinny

Read Review

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR

Tire Clearance: 2.2"

Fork

SR Suntour XCE 28, coil spring, preload, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5: 80mm travel)

Travel: 100mm

Spring Type: Coil

Bottom Bracket

Sealed cartridge, 73mm

Headset

1-1/8˝ threadless, semi-integrated, semi-cartridge bearings

Stem

Bontrager alloy, 31.8mm, 7 degree, Blendr compatible

Handlebar

Bontrager alloy, 31.8mm, 5mm rise

Saddle

Bontrager Arvada

Seatpost

Bontrager alloy, 2-bolt head, 31.6mm, 12mm offset

Type: Rigid

Pedals

VP-536 nylon platform

Grips

Bontrager XR Endurance Comp, lock-on

Groupset
Rear Derailleur

Shimano Tourney TY300

Front Derailleur

Shimano Tourney TY300

Crank

Shimano Tourney TY301, 42/34/24

Shifters

Shimano Altus M310, 7 speed

Cassette

Shimano HG200, 12-32, 7 speed

Chain

KMC Z51

Brakes

Tektro HD-275 hydraulic disc (13.5 & 15.5: Tektro HD-276 short reach lever)

Type: Hydraulic Disc

Wheels
Rims

Bontrager Connection 32-hole double-walled

Front Hub

Formula DC20 alloy

Rear Hub

Formula DC27 alloy

Tires

Bontrager XR2, 29x2.20˝ front, 29x2.0˝ rear (13.5 & 15.5: 27.5x2.20˝)
