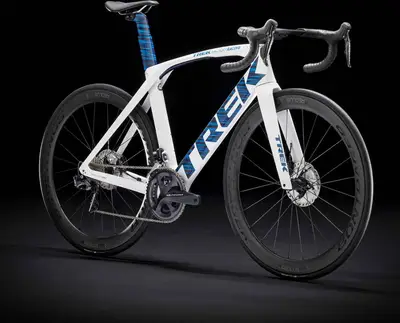

2020 Trek
Madone SLR 7 Disc
A carbon frame aero bike with high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$7,799| Weight | 17.9 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Carbon |
| Drivetrain | 2 × 11 Electronic |
| Groupset | Ultegra Di2 |
| Brakes | Hydraulic Disc |
For This Bike
5'1" – 5'5"
5'3" – 5'7"
5'5" – 5'9"
5'7" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
6'2" – 6'6"
Jul 2020
What’s better than Trek’s Madone SLR? How about a Madone SLR that’s lighter? Or one with a different bottom bracket? If either of those sound good to you, then you’ll want to check out the 2021 Madone SLR. The SLR addition to the Madone name gives the indication that this isn’t your average Trek. In […]
Dec 2019 · Symon Lewis
Cycling Weekly has shown that the Trek Madone is one of the fastest aero bikes available today, but has the update with discs made it even better? I certainly think so
Ride quality
Performance
Comfort
Stiffness
Weight
Aug 2019 · Stu Bowers
Trek proves hands down that disc brakes, true-aero race geometry, light weight and sublime comfort no longer need to be conflicting
Incredibly comfy rear end that’s adjustable to suit rider preference
Super fast
With handling to back it up
You may need to sell a kidney or remortgage the house to afford one
Jun 2019 · David Arthur @davearthur
Seriously fast aero race bike with great handling, but not the smoothest and not the ultimate spec it should be
Mar 2019 · Warren Rossiter
Winner of best superbike in our annual Bike of the Year awards is the latest evolution of Trek’s flagship aero bike
Groundbreaking comfort, stunning handling and seriously rapid
Five-figure price tag
Nov 2018 · Manuel Buck
Das Beste. The Best. Le Meilleur. The latest generation of the Trek Madone SLR 9 Disc promises to be even faster, more aerodynamic and lighter.
Jul 2018 · Dan Cavallari
Trek has fine-tuned its IsoSpeed Decoupler, improved the fit, and added disc brakes, making this edition of the Madone even better.
Jul 2018
It might look the same on the outside, but underneath it's an all new Madone

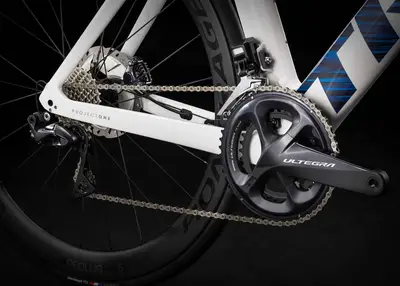

| Frame | 700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control center, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, DuoTrap S compatible, flat mount disc, 142x12mm thru axle BB Standard: BB90, 90.5mm, Press Fit Colors: Viper Red / Trek White; Voodoo Trek White / Blue; Purple Phaze / Anthracite; Black / Silver-Grey Fade |
|---|---|
| Fork | Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Bottom Bracket | Trek BB90 |
| Stem | Size: 50, 52, 54, Trek Madone aero, invisible cable routing, 7 degree, 90mm length; Size: 56, 58, Trek Madone aero, invisible cable routing, 7 degree, 100mm length; Size: 60, 62, Trek Madone aero, invisible cable routing, 7 degree, 110mm length |
| Handlebar | Size: 50, 52, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 40cm width; Size: 54, 56, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 60, 62, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 44cm width |
| Saddle | Bontrager Aeolus Elite, austenite rails, 145mm width |
| Seatpost | Size: 50, 52, 54, 56, Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, short length; Size: 58, 60, 62, Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, tall length Type: Rigid |
| Rear Derailleur | Shimano Ultegra R8050 Di2, short cage, 30T max cog |
|---|---|
| Front Derailleur | Shimano Ultegra R8050 Di2, braze-on |
| Crank | Size: 50, 52, Shimano Ultegra R8000, 50/34 (compact), 170mm length; Size: 54, 56, Shimano Ultegra R8000, 50/34 (compact), 172.5mm length; Size: 58, 60, 62, Shimano Ultegra R8000, 50/34 (compact), 175mm length |
| Shifters | Shimano Ultegra Di2, R8070, 11-speed |
| Cassette | Shimano Ultegra R8000, 11-28, 11 speed |
| Chain | Shimano Ultegra HG701, 11-speed |
| Brakes | Shimano Ultegra hydraulic disc, flat mount Type: Hydraulic Disc |
| Rims | Front: Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 100x12 thru axle, Rear: Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, Shimano 11-speed freehub, 142x12 thru axle |
|---|---|
| Tires | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c |
| Disc Rotors | Shimano RT800, 160mm, centerlock |
