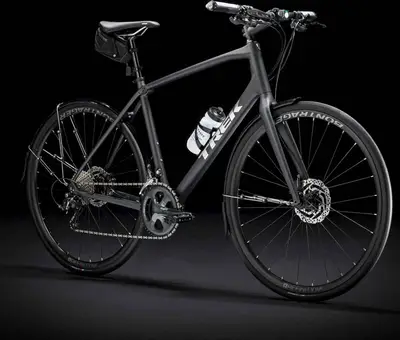

FX Sport 5
A 700c carbon frame fitness bike with mid-range components and hydraulic disc brakes.
Manufacturer Price
$1,889Weight | 22.8 lbs |
---|---|
Frame | Carbon |
Suspension | Rigid |
Fork | Carbon |
Wheels | 700c Aluminum |
Drivetrain | 2 × 10 |
Groupset | Tiagra |
Brakes | Hydraulic Disc |
For This Bike
4'9" – 5'2"
5'0" – 5'6"
5'4" – 5'10"
5'8" – 6'2"
6'0" – 6'6"
Nov 2018 · Ian Osborne
High-class fitness bike with proven road technology and a classy component package. Buy if you want a capable, high-spec yet sensible-handling bike with a flat bar
Comfortable-yet-fun ride, IsoSpeed decoupler, lightweight, Shimano 105
Cost is the biggest one, funky-looking grips, only available in black
Frame | 400 series OCLV carbon, IsoSpeed, internal routing, 3s chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 142x12mm thru axle BB Standard: BB86/BB92, 86.5mm, Press Fit |
---|---|
Fork | Size: S, M, L, XL, FX Carbon, threadless alloy steerer, hidden fender mounts, flat mount disc, 405mm axle-to-crown, 100x12mm thru axle; Size: S, M, L, XL, FX Carbon, flat mount disc, hidden fender mounts, 405mm axle-to-crown, 100x12mm thru axle |
Bottom Bracket | Shimano BB71, 86.5mm, PressFit |
Headset | 1-1/8'' threadless, sealed cartridge bearings |
Stem | Size: S, M, Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 100mm length; Size: L, XL, Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm length |
Handlebar | Size: S, Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width; Size: M, L, XL, Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 660mm width |
Saddle | Bontrager Montrose Comp, steel rails, 138mm width |
Seatpost | Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length Type: Rigid |
Pedals | VP Resin body, alloy cage, toe clip |
Grips | Bontrager Satellite IsoZone Plus, lock-on, ergonomic |
Rear Derailleur | Shimano Tiagra 4700, long cage, 34T max cog |
---|---|
Front Derailleur | Shimano Tiagra 4700, braze-on |
Crank | Size: S, Shimano Tiagra 4700, 50/34, 170mm length; Size: M, L, Shimano Tiagra 4700, 50/34, 172.5mm length; Size: XL, Shimano Tiagra 4700, 50/34, 175mm length |
Shifters | Shimano Tiagra 4700, 10 speed |
Cassette | Shimano Tiagra HG500, 11-34, 10 speed |
Chain | KMC X10 |
Brakes | Shimano MT201 hydraulic disc, flat mount, 160mm rotor Type: Hydraulic Disc |
Rims | Bontrager Affinity Disc, Tubeless Ready, 28-hole, presta valve |
---|---|
Spokes | 14g, stainless steel, black |
Front Hub | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
Rear Hub | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
Tires | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c |
Disc Rotors | Shimano RT10, 160mm, centerlock |
