2020 Trek
FX 1 Disc

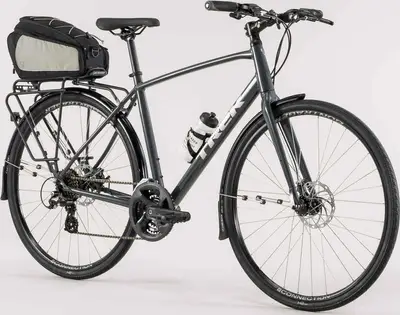

A 700c aluminum frame fitness bike with modest components and mechanical disc brakes.
| MSRP | $549 |
|---|---|
| Weight | 28.4 lbs |
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 700c Aluminum |
| Drivetrain | 3 × 7 |
| Groupset | Altus, Tourney |
| Brakes | Mechanical Disc |
For This Bike
5'1" – 5'6"
5'4" – 5'10"
5'8" – 6'2"
6'0" – 6'6"
6'5" – 6'8"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2018 · Ian Osborne
High-class fitness bike with proven road technology and a classy component package. Buy if you want a capable, high-spec yet sensible-handling bike with a flat bar
Comfortable-yet-fun ride, IsoSpeed decoupler, lightweight, Shimano 105
Cost is the biggest one, funky-looking grips, only available in black
| Frame | Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR |
|---|---|

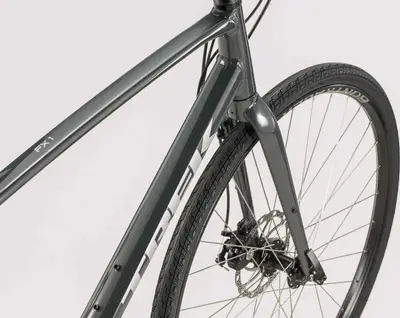

| Fork | FX Steel, flat mount disc, rack mounts, 405mm axle-to-crown, ThruSkew 5mm QR |
| Headset | 1-1/8'' threadless, sealed cartridge bearings |
| Stem | Size: S, M, Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length; Size: L, XL, XXL, Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length |
| Handlebar | Size: S, M, L, Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width; Size: XL, XXL, Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width |
| Saddle | Bontrager Sport |
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length Type: Rigid |
| Pedals | Wellgo nylon platform |
| Grips | Bontrager Satellite |

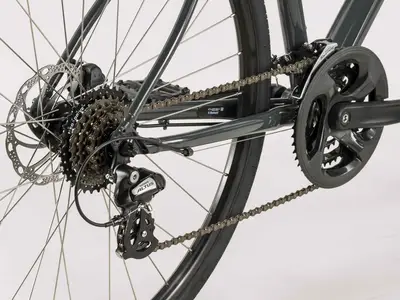

| Rear Derailleur | Shimano Altus M310 |
|---|---|
| Front Derailleur | Shimano Tourney TY510, 34.9mm clamp, top swing, dual pull |
| Crank | Forged alloy, 48/38/28, chainguard, 170mm length |
| Shifters | Shimano Altus EF500, 7 speed |
| Cassette | SunRace MFM300 freewheel, 14-34, 7 speed |
| Chain | KMC Z51 |

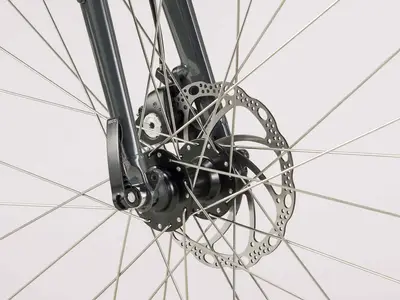

| Brakes | Tektro MD-U310 mechanical disc, flat mount, 160mm rotor Type: Mechanical Disc |
| Rims | Bontrager Connection, alloy, double-wall, 32-hole, schrader valve |
|---|---|
| Spokes | 14g, stainless steel, silver |
| Front Hub | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
| Rear Hub | Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm QR |
| Tires | Bontrager H2, wire bead, 30 tpi, 700x35c |
Last updated July 17
Not listed for 1,371 days
