2020 Trek Émonda SLR 9 Disc

Ultra high-end component level carbon frame race bike

View on www.trekbikes.com

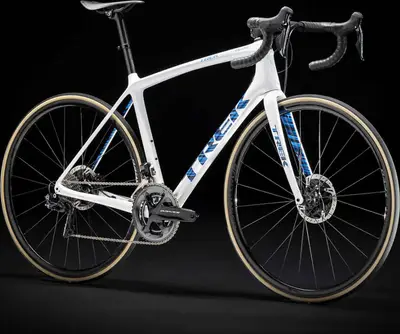

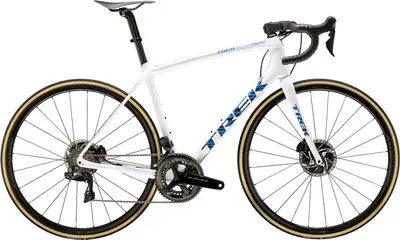

2020 Trek Émonda SLR 9 Disc
  • MSRP $11,799
  • Weight 14.2 lbs / 6.4 kg
  • Frame Carbon
  • Fork Carbon
  • Wheels 700c Carbon
  • Drivetrain 2 × 11 Electronic
  • Groupset Dura-Ace Di2
  • Brakes Hydraulic Disc

Where to Buy

Gearing

2 × 11 — 22 speed

2020 Trek Émonda SLR 9 Disc
36 mph
Similar Bikes
40 mph

The 2020 Émonda SLR 9 Disc is easier to ride up hills than similar bikes.

The 2020 Émonda SLR 9 Disc won‘t keep up with similar bikes while riding downhill or sprinting.


Estimated Spec Level

Estimated spec level of the Émonda SLR 9 Disc compared to other race bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.

Learn more

est. spec level →$0$2,000$4,000$6,000$8,000$10,000$12,000
This bike
Other race bikes

Reviews

Geometry

Specs
Build
FrameUltralight 700 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, Control Freak internal routing, Ride Tuned seatmast, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
ForkÉmonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Bottom BracketTrek BB90
HeadsetFSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
HandlebarBontrager XXX Barstem Combo, OCLV Carbon, Blendr compatible, 93mm reach, 123mm drop, 42cm width, 100mm stem length
SaddleBontrager XXX, OCLV Carbon shell and rails, 154mm width
SeatpostBontrager Ride Tuned carbon seatmast cap, 20mm offset, 175mm length (tall)

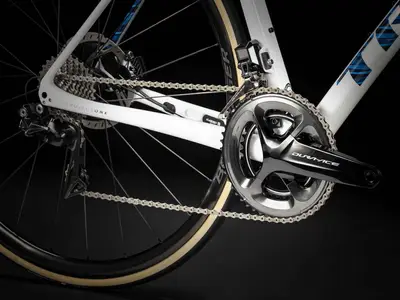

Groupset
Rear DerailleurShimano Dura-Ace Di2 R9150, short cage, 30T max cog
Front DerailleurShimano Dura-Ace Di2 R9150, braze-on
CrankShimano Dura-Ace R9100, 50/34 (compact), 172.5mm length
ShiftersShimano Dura-Ace Di2 R9170, 11 speed
CassetteShimano Dura-Ace, 11-28, 11 speed
ChainShimano Dura-Ace HG901, 11 speed
BrakesShimano Dura-Ace hydraulic disc, flat mount
Wheels
RimsBontrager Aeolus XXX 2, OCLV Carbon, Tubeless Ready, 21mm rim width, 28mm rim depth, 100x12mm thru axle
TiresBontrager R4 320 Handmade Clincher, Hard-Case Lite, 320 tpi, 700x25c
Disk RotorsShimano RT900, 160mm, centerlock
