2020 Trek Domane+ HP 7

Ultra high-end component level carbon frame endurance e-bike

View on trekbikes.com

2020 Trek Domane+ HP 7
  • MSRP $9,699
  • Frame Carbon
  • Fork Carbon
  • Wheels 700c Carbon
  • Drivetrain Electronic
  • Groupset 
    Shimano GRX Di2
  • Motor Bosch 75Nm
  • Battery Bosch 500Wh
  • Brakes Hydraulic Disc
Estimated Spec Level
est. spec level →$0$2,000$4,000$6,000$8,000$10,000
This bike
Other endurance bikes

Estimated spec level of the Domane+ HP 7 compared to other endurance bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.  Learn more »

Geometry
Build
Frame500 Series OCLV Carbon, Removable Integrated Battery (RIB), tapered head tube, rear IsoSpeed, internal routing, DuoTrap S compatible, flat mount disc, fender mounts, 142x12mm thru axle
ForkDomane+ carbon, tapered steerer, flat mount disc, 12x100mm thru axle
StemBontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
HandlebarBontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width
SaddleBontrager Commuter Comp, 165mm width
SeatpostBontrager carbon internal seatmast cap, integrated light mount, 20mm offset, tall length
Components

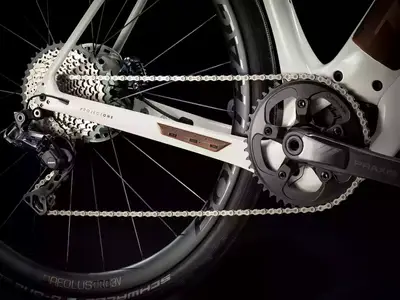

Rear DerailleurShimano GRX RX817 Di2, long cage, 42T max cog
ShiftersShimano Ultegra Di2, R8070, 11-speed
CassetteShimano Deore XT M8000, 11-42, 11 speed
ChainShimano Ultegra HG701, 11-speed
BrakesShimano Ultegra hydraulic disc, flat mount
Wheels
RimsBontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle
TiresSchwalbe G-One Speed, tubeless, 700x35c
Electric Components
MotorNEW Bosch Performance Speed, 75 Nm, 28 mph / 45 kph
BatteryBosch PowerTube 500
