2020 Trek
Checkpoint SL 7
A carbon frame gravel bike with ultra high-end components and hydraulic disc brakes.
Compare the full range
| MSRP | $5,999 |
|---|---|
| Weight | 19.1 lbs |
| Frame | Carbon |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Carbon |
| Drivetrain | 1 × 12 Electronic |
| Groupset | XX1 Eagle AXS, Force eTap |
| Brakes | Hydraulic Disc |
For This Bike
5'1" – 5'5"
5'3" – 5'7"
5'5" – 5'9"
5'8" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
Sep 2021
Updated geometry and differentiated models for speed, adventure, and all purpose riding
Sep 2021 · Matthew Pioro
Also, a tour of the revamped Trek Checkpoint lineup of bikes and Adventure bags for mixed-surface adventures
Dec 2020 · Ben Delaney
Gravel bikes abound, but this one checks all the boxes, and at a great price.
Dec 2020 · Benjamin Topf
Trek includes adjustable chainstays on their Checkpoint SL 7 gravel bike and offers new options for future gravel adventures like single-speed builds.
King of the climbs
Quick acceleration
Consistent spec
Many mounting points
Undamped rear flex
Limited adjustment range of the seatmast cap
Tires need more support at high speeds
Jun 2020 · Laura Weislo
On early impressions, Trek's flagship gravel bike, the Checkpoint SL7, looks perfect for seekers of versatility and adventure
Lightweight, agile and responsive ride
IsoSpeed shock adds comfort
Underbody protection for the eye-popping paint job
SRAM Force eTap AXS 1X drive not suited to mixed road/gravel
Top tube is too wide near the seat tube
Toe overlap in the smallest size
Mar 2020 · Abby Mickey
Trek’s Checkpoint was the most popular gravel bike of 2019, according to data Strava sent over last fall. Trek has sold a lot of them. This suggests that it’s a good bike, and indeed it is. But we found that it is good in a generic, pop-music, lowest-common-denominator, unoffensive-to-all kind of way. It takes few […]
An incredibly affordable bike that functions beyond its price, great for bikepacking, commuting, secret “groad” with your buddies, and more.
Heavy. It’s heavy. Also, it definitely needs a tire upgrade from the ones that come with it.
Mar 2020 · Dale Tiessen
Out of the saddle putting down maximum power into the Checkpoint, it feels like a nice carbon road bike.
Feb 2020 · Robin Wilmott
All-road versatility with refined road manners for a fine riding machine
Frame design and mounts, hydraulic Tiagra groupset
Chirpy mudguards
| Frame | 500 Series OCLV Carbon, IsoSpeed, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and fender mounts, flat mount disc, horizontal sliding dropouts, 142x12mm thru axle |
|---|---|
| Fork | Checkpoint carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Stem | Size: 49, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 110mm length |
| Handlebar | Size: 49, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 38cm width; Size: 52, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 40cm width; Size: 54, 56, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 61, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width |
| Saddle | Bontrager Arvada Elite, stainless steel rails, 138mm width |
| Seatpost | Size: 49, 52, 54, 56, Bontrager carbon seatmast cap, 20mm offset, short length; Size: 58, 61, Bontrager carbon seatmast cap, 20mm offset, tall length Type: Rigid |
| Rear Derailleur | SRAM XX1 Eagle AXS |
|---|---|

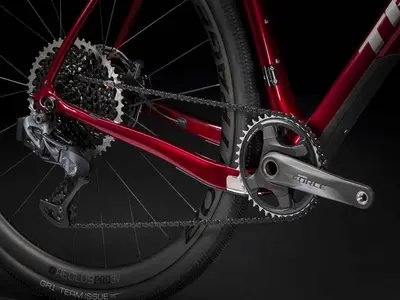

| Crank | Size: 49, SRAM Force, 40T, 24mm spindle, 165mm length; Size: 52, SRAM Force, 40T, 24mm spindle, 170mm length; Size: 54, 56, SRAM Force, 40T, 24mm spindle, 172.5mm length; Size: 58, 61, SRAM Force, 40T, 24mm spindle, 175mm length |
| Shifters | SRAM Force eTap AXS, 12 speed |
| Cassette | SRAM XG-1295 Eagle, 10-50, 12 speed |
| Chain | SRAM XX1 Eagle, 12 speed |

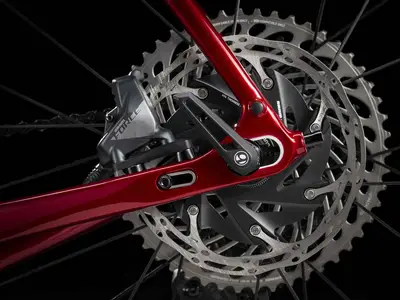

| Brakes | SRAM Force eTap AXS hydraulic disc, flat mount Type: Hydraulic Disc |
| Rims | Front: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle, Rear: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axle |
|---|---|
| Tires | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40c |
