2020 Trek
Allant+ 8S
A 650b aluminum frame commuter e-bike with upper mid-range components and hydraulic disc brakes.
Compare the full range
| MSRP | $4,299 |
|---|---|
| Weight | 55.3 lbs |
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Aluminum |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Bosch 250W 75Nm mid-drive |
| Battery | Bosch 625Wh |
| Brakes | Hydraulic Disc |
For This Bike
5'4" – 5'10"
5'8" – 6'2"
6'0" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Dec 2021 · Tyler Benedict
If you like to ride fast & want a snappy handling commuter e-bike for navigating the urban environment, the Trek Allant+ is worth a look.
Apr 2020
Price: $3599.00 | Model Year: 2020 | A great all-around electric bike that's capable on city streets and light trail, it replaces the Trek Dual Sport+ from earlier years. Proven Bosch Peformance Line CX motor with shift detection. The high-step frame has mounts for adding a second battery pack (Bosch Range Boost) to double capacity, but the step-thru does not
A great all-around electric bike that's capable on city streets and light trail, it replaces the Trek Dual Sport+ from earlier years. Proven Bosch Peformance Line CX motor with shift detection. The high-step frame has mounts for adding a second battery pack (Bosch Range Boost) to double capacity, but the step-thru does not

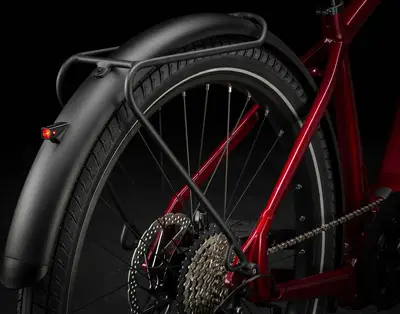

Durable and quiet plastic fenders, sleek and sturdy Racktime rear rack, bright integrated lights with side windows to maximize visual footprint, reflective tires and high-contrast paint accents keep you seen.

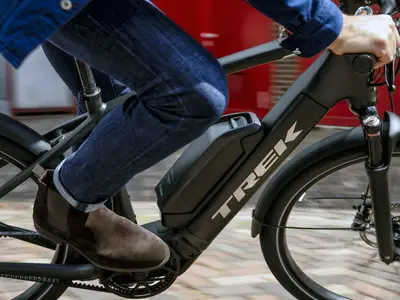

Excellent weight distribution, clean integrated battery pack with Trek RIB casing for easy handling (because it has a built-in handle). Powerful smooth 180mm hydraulic disc brakes. Highly adjustable coil spring suspension fork with lockout, preload, and rebound
The bike only comes in one color, but each frame type has three sizes for optimal fit. Trek has a vast network of dealers and is recognized as one of the "big three" ebike manufacturers. The Bosch Purion display is a bit limited but leaves plenty of room for Trek Blendr stem mounted accessories. Bosch CX motor is powerful, but louder than some competing products
| Frame | High-performance hydroformed alloy, Removable Integrated Battery, Range Boost compatible, internal cable routing, Motor Armor, post-mount disc, 135x5mm QR |
|---|---|
| Fork | Size: M, L, XL, Allant+ rigid alloy fork, 1-1/8'' steel steerer, 100x15mm thru-axle, post-mount disc brake; Size: M, L, XL, NA |
| Headset | Size: M, L, XL, FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom; Size: M, L, XL, FSA IS-2 alloy, integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Stem | Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: XL, Bontrager alloy, 31.8mm clamp, Blendr compatible, 7 degree, 100mm length; Size: XL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 100mm length |
| Handlebar | Size: M, Bontrager alloy, 31.8mm, 15mm rise, 600mm width; Size: L, XL, Bontrager alloy, 31.8mm, 15mm rise, 660mm width |
| Saddle | Bontrager Commuter Comp |
| Seatpost | Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 400mm length Type: Rigid |
| Pedals | Bontrager Satellite City pedal |
| Grips | Bontrager Satellite Elite, alloy lock-on |
| Rear Derailleur | Size: M, L, XL, Shimano Deore M6000, mid cage, 42T max cog; Size: M, L, XL, Shimano Deore M5120, long cage |
|---|---|
| Crank | Size: M, ProWheel alloy, 170mm; Size: L, XL, ProWheel alloy, 175mm |
| Shifters | Shimano Deore M4100, 10 speed |
| Cassette | Size: M, L, XL, Shimano HG500, 10 speed; Size: M, L, XL, Shimano Deore M4100, 11-42, 10 speed |
| Chain | Size: M, L, XL, KMC E10; Size: M, L, XL, KMC X10e |
| Brakes | Shimano MT520 4-piston hydraulic disc, post-mount 180mm rotor Type: Hydraulic Disc |
| Rims | Alex MD35, Tubeless Ready, 32-hole, 35mm width, presta valve |
|---|---|
| Spokes | J-Bend, 14g, Steel, Black |
| Front Hub | Bontrager sealed bearing, 32-hole 15mm alloy thru-axle |
| Rear Hub | Bontrager sealed cartridge bearing rear hub, 32-hole, 6-bolt disc, 5mm QR |
| Tires | Size: M, L, XL, Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.4''; Size: M, L, XL, Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.40'' |
| Disc Rotors | Size: M, L, XL, Shimano RT56, 180mm, 6-bolt; Size: M, L, XL, Shimano RT56, 6-bolt, 180mm |
| Motor | Bosch Performance Speed, 75 Nm, 28 mph / 45 kph |
|---|---|
| Battery | Bosch PowerTube 625 Recycling Program: ♻️ Call2Recycle |
| Charger | Bosch standard 4A (100-240V) charger |
| Lights | Size: M, L, XL, Trek Lync taillight, 50 lumens; Size: M, L, XL, Trek Lync headlight, 500 lumens |
|---|---|
| Racks | Allant integrated rear rack, aluminum |
