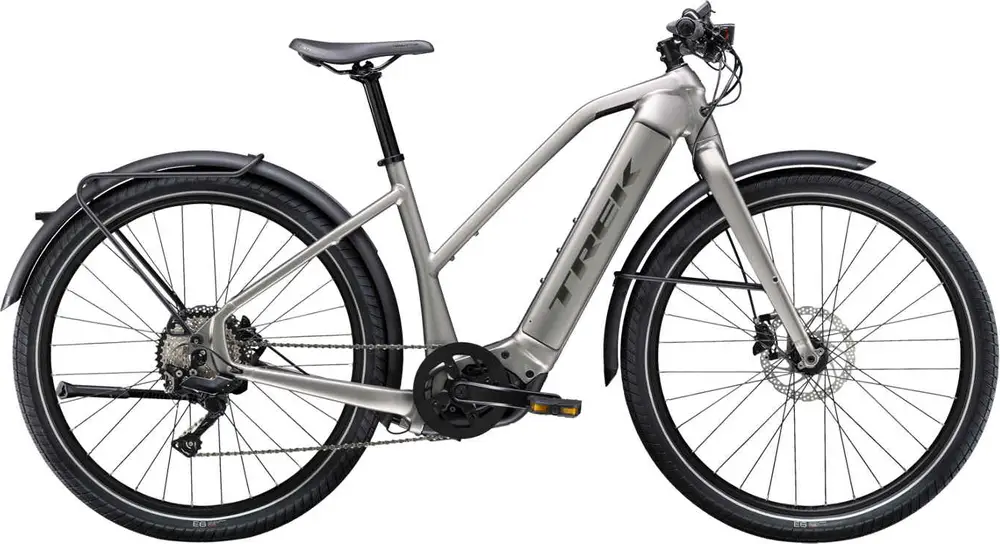

2020 Trek Allant+ 8 Stagger

Upper mid-range component level aluminum frame commuter e-bike

View on trekbikes.com

2020 Trek Allant+ 8 Stagger
  • MSRP $3,999
  • Suspension Rigid
  • Frame Aluminum
  • Fork Aluminum
  • Wheels 27.5″
  • Groupset 
    Shimano Deore
  • Motor Bosch 250W 75Nm
  • Battery Bosch 500Wh
  • Brakes Hydraulic Disc
Estimated Spec Level
est. spec level →$0$1,000$2,000$3,000$4,000
This bike
Other commuter bikes

Estimated spec level of the Allant+ 8 Stagger compared to other commuter bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.  Learn more »

Geometry
Build
FrameHigh-performance hydroformed e-bike frame w/integrated battery and Motor Armor, Stagger design internal cable routing, post-mount disc, 5mm QR dropouts
ForkAllant+ rigid alloy fork, 1-1/8'' steel steerer, 100x15mm thru-axle, post-mount disc brake
HeadsetFSA IS-2 alloy, integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
StemBontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
HandlebarBontrager alloy, 31.8mm, 15mm rise, 660mm width
SaddleBontrager Commuter Comp, 165mm width
SeatpostBontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 400mm length
GripsBontrager Satellite Elite, alloy lock-on
Components
Rear DerailleurShimano Deore M6000, mid cage, 42T max cog
ShiftersShimano Deore Rapid-Fire Plus, 10 speed
CrankProWheel alloy, 175mm
CassetteShimano HG500, 10 speed
ChainKMC E10

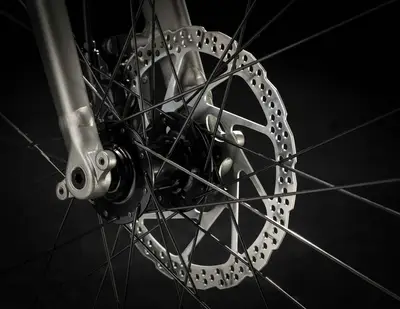

BrakesShimano MT200 hydraulic disc
Wheels
RimsAlex MD35, Tubeless Ready, 32-hole, 35mm width, presta valve
Front HubBontrager sealed bearing, 32-hole 15mm alloy thru-axle
Rear HubBontrager sealed cartridge bearing rear hub, 32-hole, 6-bolt disc, 5mm QR
TiresBontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.4''
Electric Components
MotorNEW Bosch Performance CX, magnesium motor body, 250 watt, 75 Nm, 20mph or 32km/h max assist
BatteryBosch PowerTube 500
