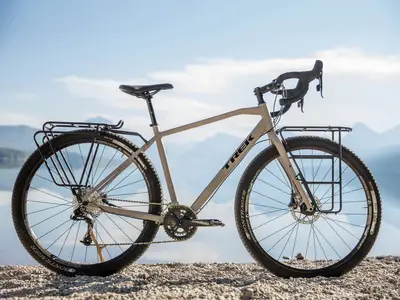

2020 Trek
920
An aluminum frame touring bike with upper mid-range components and hydraulic disc brakes.
Manufacturer Price
$2,099| Weight | 28.4 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Aluminum |
| Wheels | 29″ Aluminum |
| Drivetrain | 2 × 10 |
| Groupset | GX, X5 |
| Brakes | Hydraulic Disc |
For This Bike
5'1" – 5'5"
5'3" – 5'7"
5'5" – 5'9"
5'8" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jul 2020 · Simon Withers
Trek’s hydraulic disc-braked take on the tourer
Comprehensive kit quality components and an excellent comfortable ride
No mudguards as standard but that s about it if you re happy with aluminium
| Frame | 100 Series Alpha aluminum, rack & fender mounts, 142x12mm thru axle, 73mm threaded bottom bracket BB Standard: BSA, 100mm, Threaded |
|---|---|
| Fork | 920 alloy disc adventure, 15mm thru axle |
| Bottom Bracket | Sealed cartridge, GXP Type |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8'' |
| Stem | Size: 49, Bontrager Elite Basic, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, Bontrager Elite Basic, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 54, 56, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 58, 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
| Handlebar | Bontrager Race VR-C, 31.8mm |
| Saddle | Bontrager Evoke |
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length Type: Rigid |
| Rear Derailleur | SRAM GX, Type 2, long cage |
|---|---|
| Front Derailleur | SRAM X5, 34.9mm clamp |
| Crank | Size: 49, 52, 54, ProWheel forged alloy, 42/28, 2-piece, 170mm length; Size: 56, 58, 61, ProWheel forged alloy, 42/28, 2-piece, 175mm length |
| Shifters | Size: 49, 52, 54, 56, 58, 61, SRAM S700, 2-speed; Size: 49, 52, 54, 56, 58, 61, SRAM S700, 10 speed |
| Cassette | SRAM PG-1030, 11-36, 10 speed |
| Chain | KMC X10, 10 speed |
| Brakes | Hydraulic Disc Type: Hydraulic Disc |
| Rims | Front: Bontrager Duster Elite, Tubeless Ready, 100x15mm thru axle, Rear: Bontrager Duster Elite, Tubeless Ready, 6-bolt disc, Shimano 10 freehub, 142x12 thru axle |
|---|---|
| Tires | Bontrager XR1, 29x2.00'' [p18] |
| Disc Rotors | Avid G2 Cleansweep, 160mm, 6-bolt |
| Racks | Size: 49, 52, 54, Bontrager BackRack Deluxe, Interchange compatible, size small; Size: 49, 52, 54, 56, 58, 61, 920 Touring; Size: 56, 58, 61, Bontrager BackRack Deluxe, Interchange compatible, size large |
|---|
