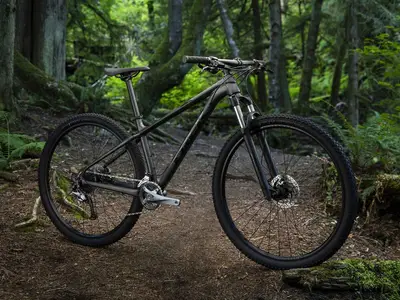

X-Caliber 7
A 27.5″ / 29″ aluminum frame hardtail crosscountry bike with mid-range components.
Compare the full range
MSRP | $1,019 |
---|---|
Weight | 30.8 lbs |
Frame | Aluminum |
Suspension | Hardtail, 100mm |
Fork | RockShox 30 Silver TK |
Wheels | 27.5″ / 29″ Aluminum |
Drivetrain | 2 × 9 |
Groupset | Acera, Alivio |
Brakes | Hydraulic Disc |
For This Bike
4'5" – 5'2"
5'0" – 5'5"
5'2" – 5'8"
5'6" – 5'11"
5'9" – 6'3"
6'1" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2017
Trek's budget-friendly hardtails have evolved on two distinct paths, an affordable XC steed and a fun trail machine. Born out of the same frame, find out how these two bikes compare. - Mtbr.com
Apr 2017
If you're looking for a rapid handling cross-country hardtail then the X-Caliber delivers in spades, but it's a bit of a handful when the trail turns downhill thanks to steep geometry and a dated cockpit. Buyer's guide to mountain bikes - get the best MTB for you The best mountain bikes for under £1,000 - the best budget buys ridden and rated Trek launch updated 2020 X-Caliber aluminium hardtail cross-country bike The X-Caliber range is Trek's entry to their proper cross-country hardtail offerings, designed to tackle proper off-road riding rather than being a multi-sport machine.
Jul 2016 · Alan Muldoon
The Trek looks amazing and has a decent spec, it’s just a shame the frame isn’t more trail-focused
Quality frame and spec
Fork is under sprung for frame size
Frame | Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, G2 Geometry |
---|---|
Fork | RockShox 30 Silver, coil spring, preload, rebound adjust, TurnKey hydraulic lockout, tapered steerer, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5: 80mm travel) Travel: 100mm Spring Type: Coil |
Bottom Bracket | Sealed cartridge, 73mm |
Headset | Semi-integrated, cartridge, 1-1/8˝ top, 1.5˝ bottom |
Stem | Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
Handlebar | Bontrager alloy, 31.8mm, 5mm rise, 720mm width (13.5: 690mm width) |
Saddle | Bontrager Arvada |
Seatpost | Bontrager alloy, 2-bolt head, 31.6mm, 12mm offset Type: Rigid |
Pedals | VP-536 nylon platform |
Grips | Bontrager XR Trail Comp, nylon lock-on |

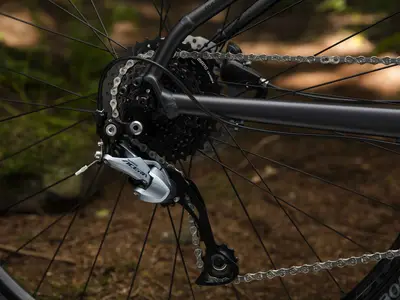

Rear Derailleur | Shimano Acera M3000, Shadow |
---|---|
Front Derailleur | Shimano Alivio M4020 |

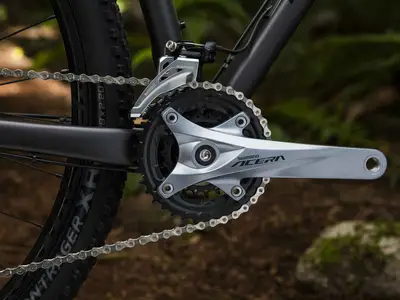

Crank | Shimano Acera MT210, 36/22 |
Shifters | Shimano Acera M3000, 9 speed |
Cassette | Shimano HG200, 11-36, 9 speed |

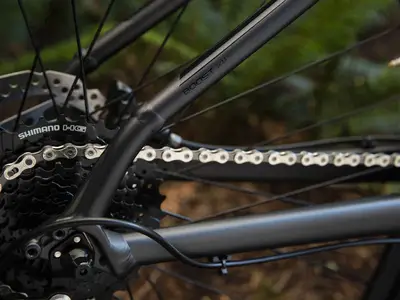

Chain | KMC X9 |

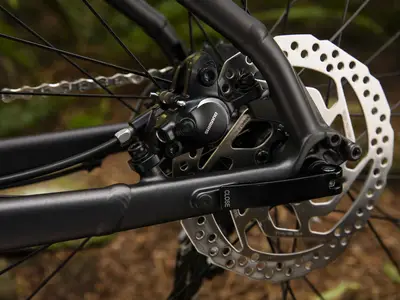

Brakes | Shimano MT200 hydraulic disc Type: Hydraulic Disc |

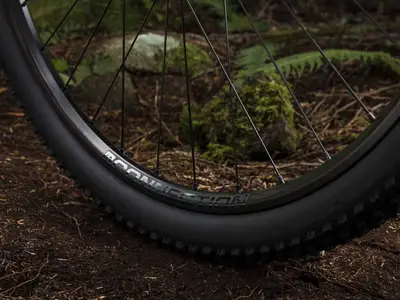

Rims | Bontrager Connection 32-hole double-walled |
---|---|
Front Hub | Formula DC20 alloy |
Rear Hub | Formula DC2241, Boost141 |
Tires | Bontrager XR2, 29x2.20˝ (13.5 & 15.5: 27.5x2.20˝) |
Last updated June 14
Not listed for 1,770 days
