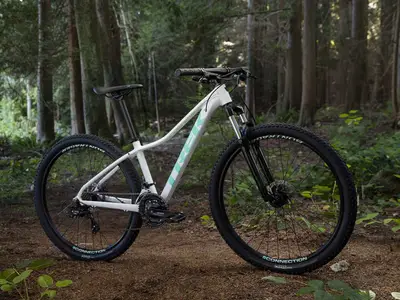

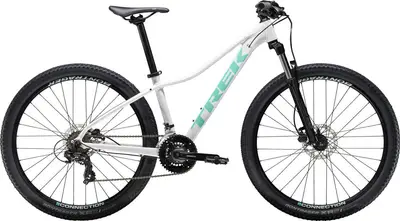

Marlin 5 Women's
A 27.5″ / 29″ aluminum frame hardtail women’s crosscountry bike with mid-range components.
Compare the full range
Manufacturer Price
$539Weight | 30.6 lbs |
---|---|
Frame | Aluminum |
Suspension | Hardtail, 100mm |
Fork | Suntour XCE |
Wheels | 27.5″ / 29″ Aluminum |
Drivetrain | 3 × 7 |
Groupset | Tourney, Altus |
Brakes | Hydraulic Disc |
For This Bike
4'9" – 5'2"
5'0" – 5'5"
5'2" – 5'8"
5'6" – 5'11"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Dec 2019
This cheap mountain bike is the perfect gateway drug to your next (trail riding) addiction.
Wide range of gears with 2x9 drivetrain
Wheels and tires aren’t tubeless-ready
Jun 2019 · Alan Muldoon
The first of two 29er to make it into the sub 500 category, the Trek Marlin 6 certainly didn't behave like a fish out of water.
Top-rate frame quality, available in seven sizes Independent Shimano shifters
Cable and chain rattle. Rear tyre is too skinny
Frame | Alpha Silver Aluminum, internal derailleur, dropper post and brake routing, chainstay brake mount, rack & kickstand mount, G2 Geometry on 29ers (lower standover on 13.5" and 15.5" sizes) |
---|---|

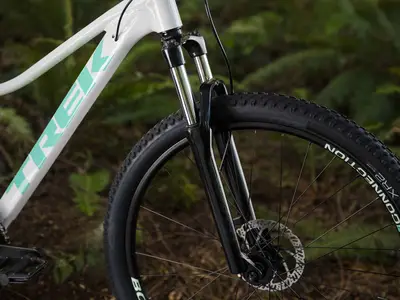

Fork | SR Suntour XCE 28, coil spring, preload, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5: 80mm travel) Travel: 100mm Spring Type: Coil |
Bottom Bracket | Sealed cartridge, 73mm |
Headset | 1-1/8˝ threadless, semi-integrated, semi-cartridge bearings |
Stem | Bontrager alloy, 31.8mm, 7 degree, Blendr compatible |
Handlebar | Bontrager alloy, 31.8mm, 5mm rise, 720mm width (13.5, 15.5: 690mm width) |
Saddle | Bontrager Ajna 1 Women's |
Seatpost | Bontrager alloy, 2-bolt head, 31.6mm, 12mm offset Type: Rigid |
Pedals | VP-536 nylon platform |
Grips | Bontrager XR Endurance Comp |

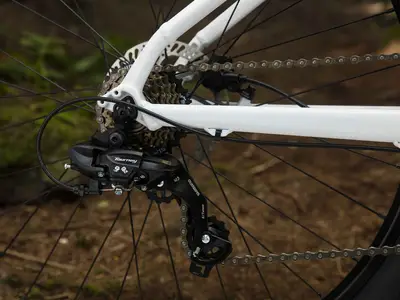

Rear Derailleur | Shimano Tourney TY300 |
---|---|
Front Derailleur | Shimano Tourney TY300 |

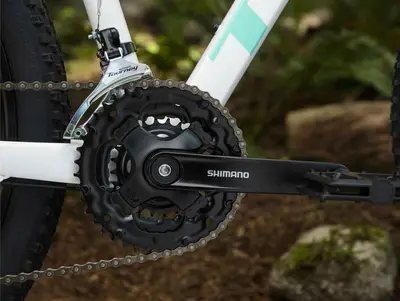

Crank | Shimano Tourney TY301, 42/34/24 |
Shifters | Shimano Altus M310, 7 speed |
Cassette | Shimano TZ500, 14-28, 7 speed |
Chain | KMC Z51 |

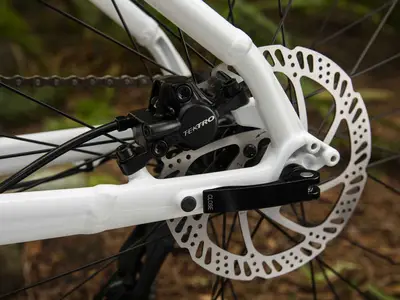

Brakes | Tektro HD-275 hydraulic disc (13.5 & 15.5: Tektro HD-276 short reach lever) Type: Hydraulic Disc |

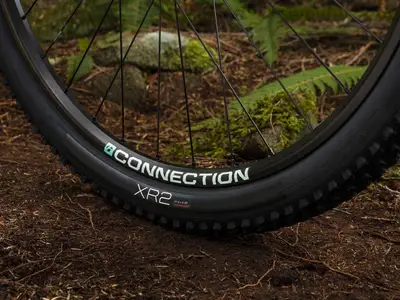

Rims | Bontrager Connection 32-hole double-walled |
---|---|
Front Hub | Formula DC20 alloy |
Rear Hub | Formula DC31 alloy |
Tires | Bontrager XR2, 29x2.20˝ front, 29x2.0˝ rear (13.5 & 15.5: 27.5x2.20˝) |
