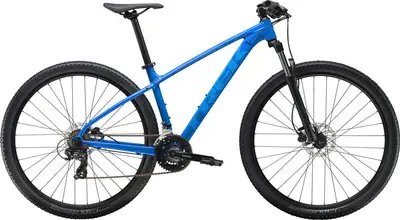

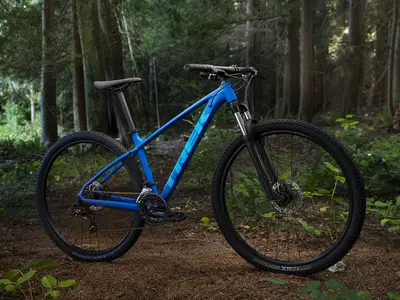

2019 Trek

Marlin 5

A 27.5″ / 29″ aluminum frame hardtail crosscountry bike with mid-range components.
Compare the full range

MSRP$539
Weight32.2 lbs
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCE
Wheels27.5″ / 29″ Aluminum
Drivetrain3 × 7
GroupsetTourney, Altus
BrakesHydraulic Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Marlin 5
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

26 mph

Marlin 5

27 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

4'9" – 5'2"

SM

5'0" – 5'5"

MD

5'2" – 5'8"

MD/LG

5'6" – 5'11"

LG

5'9" – 6'3"

XL

6'1" – 6'6"

XXL

6'4" – 6'8"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
Bicycling
The Trek Marlin 7 Has The Heart Of A Race Bike

Dec 2019

This cheap mountain bike is the perfect gateway drug to your next (trail riding) addiction.

Highs
  • Wide range of gears with 2x9 drivetrain

Lows
  • Wheels and tires aren’t tubeless-ready

Read Review

MBR
Trek Marlin 6 review - MBR

Jun 2019 · Alan Muldoon

The first of two 29er to make it into the sub 500 category, the Trek Marlin 6 certainly didn't behave like a fish out of water.

Highs
  • Top-rate frame quality, available in seven sizes Independent Shimano shifters

Lows
  • Cable and chain rattle. Rear tyre is too skinny

Read Review

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Alpha Silver Aluminum, internal derailleur, dropper post and brake routing, chainstay brake mount, rack & kickstand mount, G2 Geometry on 29ers

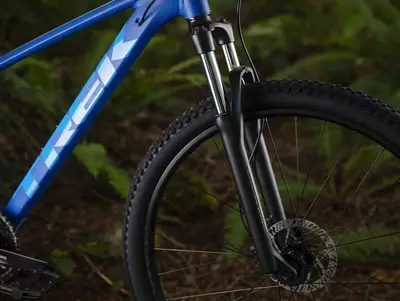

Fork

SR Suntour XCE 28, coil spring, preload, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5: 80mm travel)

Travel100mm

Spring TypeCoil

Bottom Bracket

Sealed cartridge, 73mm

Headset

1-1/8˝ threadless, semi-integrated, semi-cartridge bearings

Stem

Bontrager alloy, 31.8mm, 7 degree, Blendr compatible

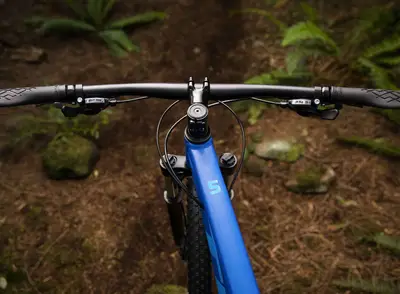

Handlebar

Bontrager alloy, 31.8mm, 5mm rise, 720mm width (13.5: 690mm width)

Saddle

Bontrager Arvada

Seatpost

Bontrager alloy, 2-bolt head, 31.6mm, 12mm offset

TypeRigid

Pedals

VP-536 nylon platform

Grips

Bontrager XR Endurance Comp

Groupset
Rear Derailleur

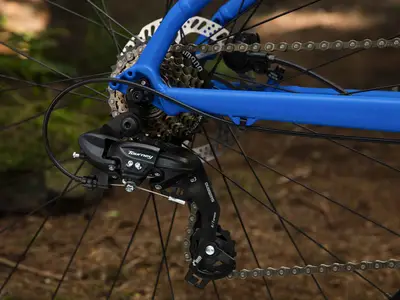

Shimano Tourney TY300

Front Derailleur

Shimano Tourney TY300

Crank

Shimano Tourney TY301, 42/34/24

Shifters

Shimano Altus M310, 7 speed

Cassette

Shimano TZ500, 14-28, 7 speed

Chain

KMC Z51

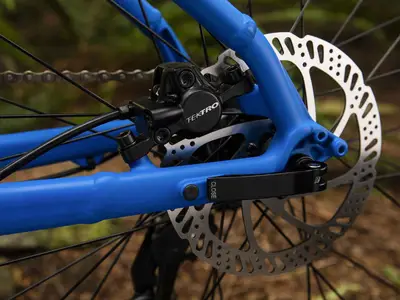

Brakes

Tektro HD-275 hydraulic disc (13.5 & 15.5: Tektro HD-276 short reach lever)

TypeHydraulic Disc

Wheels
Rims

Bontrager Connection 32-hole double-walled

Front Hub

Formula DC20 alloy

Rear Hub

Formula DC31 alloy

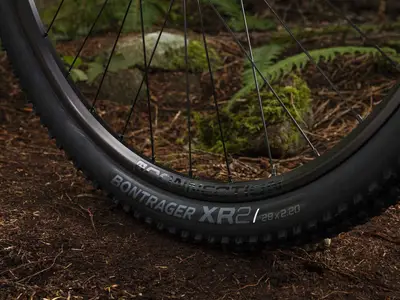

Tires

Bontrager XR2, 29x2.20˝ front, 29x2.0˝ rear (13.5 & 15.5: 27.5x2.20˝)
