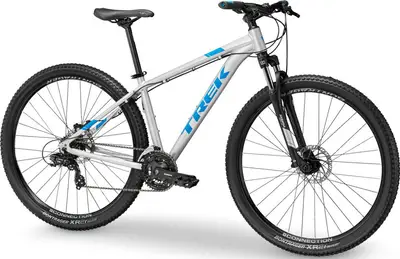

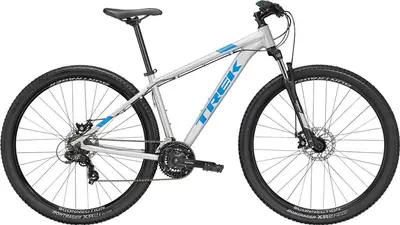

Marlin 4
A 27.5″ / 29″ aluminum frame hardtail crosscountry bike with mid-range components and mechanical disc brakes.
Compare the full range
MSRP | $469 |
---|---|
Weight | 31.1 lbs |
Frame | Aluminum |
Suspension | Hardtail, 75mm |
Fork | Suntour |
Wheels | 27.5″ / 29″ Aluminum |
Drivetrain | 3 × 7 |
Groupset | Tourney, Altus |
Brakes | Mechanical Disc |
For This Bike
4'9" – 5'2"
5'0" – 5'5"
5'2" – 5'8"
5'6" – 5'11"
5'9" – 6'3"
6'1" – 6'6"
6'4" – 6'8"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Dec 2019
This cheap mountain bike is the perfect gateway drug to your next (trail riding) addiction.
Wide range of gears with 2x9 drivetrain
Wheels and tires aren’t tubeless-ready
Jun 2019 · Alan Muldoon
The first of two 29er to make it into the sub 500 category, the Trek Marlin 6 certainly didn't behave like a fish out of water.
Top-rate frame quality, available in seven sizes Independent Shimano shifters
Cable and chain rattle. Rear tyre is too skinny

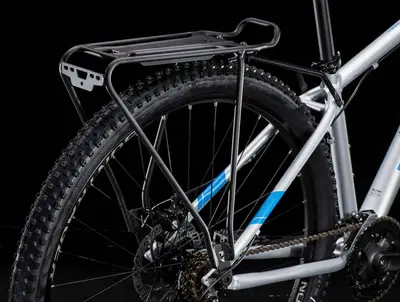

Frame | Alpha Silver Aluminum w/semi-integrated head tube, rack & fender mounts, G2 Geometry on 29ers |
---|---|

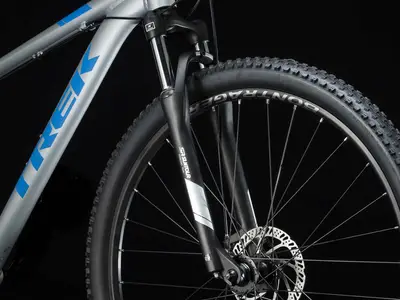

Fork | SR Suntour M-3030, coil spring, preload, 75mm travel Travel: 75mm Spring Type: Coil |
Bottom Bracket | Sealed cartridge |
Headset | Semi-integrated, 1-1/8˝ |
Stem | Bontrager alloy, 31.8mm, 7 degree, Blendr compatible |
Handlebar | Bontrager alloy, 31.8mm, 15mm rise |
Saddle | Bontrager Evoke 1 |
Seatpost | Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset Type: Rigid |
Pedals | Wellgo nylon platform |
Grips | Bontrager Satellite Plus, ergonomic |

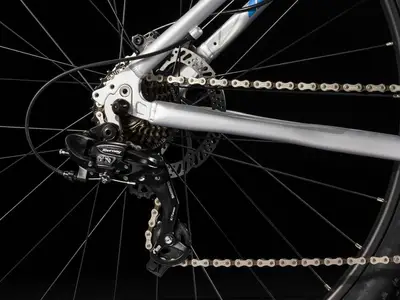

Rear Derailleur | Shimano Tourney TY300 |
---|---|
Front Derailleur | Shimano Tourney TY500 |
Crank | Shimano Tourney TY301, 42/34/24 |
Shifters | Shimano Altus EF500, 7 speed |
Cassette | Shimano TZ21 14-28, 7 speed |
Chain | KMC Z51 |

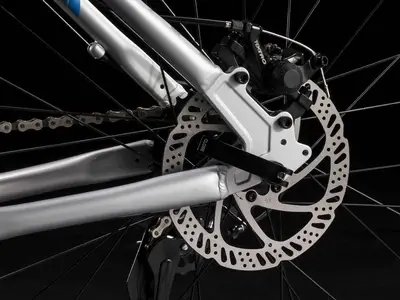

Brakes | Tektro M280 mechanical disc Type: Mechanical Disc |
Rims | Bontrager Connection 32-hole double-walled |
---|---|
Front Hub | Formula DC20 alloy |
Rear Hub | Formula DC31 alloy |
Tires | Bontrager XR2, 29x2.20˝ front, 29x2.00˝ rear (13.5 & 15.5: 27.5x2.20˝) |
