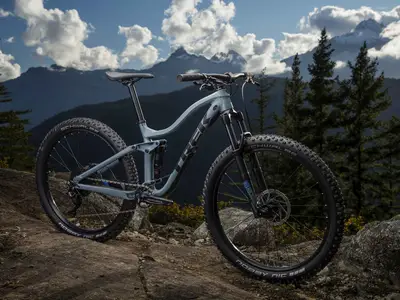

2019 Trek Fuel EX 5 Women's

Upper mid-range component level aluminum frame trail bike

View on trekbikes.com

2019 Trek Fuel EX 5 Women's
  • MSRP $2,249
  • Suspension Full
  • Front Travel 140mm
  • Rear Travel 130mm
  • Frame Aluminum
  • Fork 
    RockShox Recon
  • Wheels 27.5″
  • Drivetrain 1 × 10
  • Groupset 
    Shimano Deore
  • Brakes Hydraulic Disc

1 × 10 — 10 speed

2019 Trek Fuel EX 5 Women's
22 mph
Similar Bikes
26 mph

The 2019 Fuel EX 5 Women's is geared about the same as similar bikes for riding up hills.

The 2019 Fuel EX 5 Women's won‘t keep up with similar bikes while riding downhill or sprinting.

Estimated Spec Level
est. spec level →$0$500$1,000$1,500$2,000$2,500
This bike
Other trail bikes

Estimated spec level of the Fuel EX 5 compared to other trail bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.  Learn more »

FrameAlpha Platinum Aluminum, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, tapered head tube, Mino Link, Control Freak internal routing, down tube guard, PF92, ISCG 05, G2 Geometry, 130mm travel (lower standover on 14" and 15.5" sizes)
ForkRockShox Recon RL, Solo Air spring, Motion Control damper, tapered steerer, G2 Geometry w/51mm offset, Boost110, 140mm travel (14 & 15.5: 120mm travel)

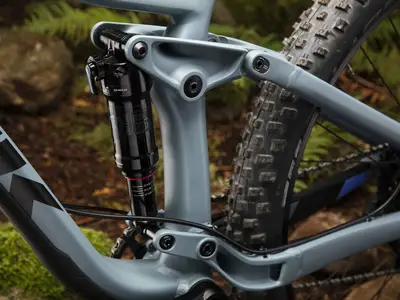

Rear ShockRockShox Deluxe RL, 210mm x 52.5mm
Bottom BracketPF92
HeadsetKnock Block Integrated, sealed cartridge bearing, 1-1/8˝ top, 1.5˝ bottom
StemBontrager Rhythm Comp, 31.8mm clamp, 0 degree
HandlebarBontrager alloy, 31.8mm, 15mm rise, 720mm width
SaddleBontrager Arvada
SeatpostBontrager alloy, 2-bolt head, 31.6mm, 12mm offset
GripsBontrager XR Trail Comp, nylon lock-on
Front Derailleur

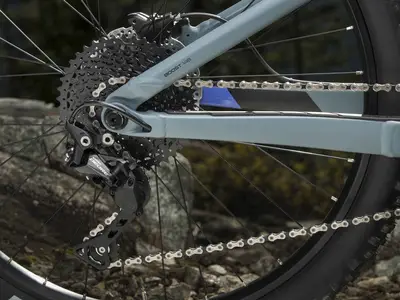

Rear DerailleurShimano Deore M6000, Shadow Plus
ShiftersShimano Deore M6000, 10 speed
CrankRace Face Ride, 30T Cinch (direct mount)
CassetteSunRace, 11-42, 10 speed
ChainKMC X10
Chain Guide
BrakesShimano MT200 hydraulic disc
Brake LeversShimano MT200
RimsAlex MD35, 32-hole double-walled, tubeless strips and valves sold separately
Front HubBontrager Boost110
Rear HubBontrager sealed bearing alloy axle, Boost148

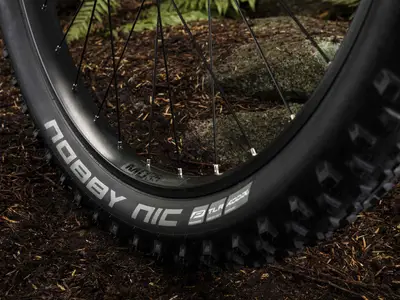

TiresSchwalbe Nobby Nic Performance, Tubeless Ready, 27.5x2.80˝
