2019 Trek
Crockett 5 Disc
An aluminum frame cyclocross bike with upper mid-range components and mechanical disc brakes.
Compare the full range
| MSRP | $1,999 |
|---|---|
| Weight | 19.8 lbs |
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | Rival, Praxis |
| Brakes | Mechanical Disc |
For This Bike
4'11" – 5'3"
5'1" – 5'5"
5'3" – 5'7"
5'5" – 5'9"
5'7" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2019 · Clifford Lee
Trek has redesigned its alloy Crockett cyclocross bike for the 2020 model year. We take a first look at the SRAM Rival 1 Crockett 5.
Dec 2017 · Robin Schmitt
Priced at € 3,299 the Trek Crockett 7 wants to be an affordable yet eclectic bike for pretty much every terrain. Does the concept really work?
Oct 2017 · Thomas McDaniel
An alloy race bike that can do double-drivetrain duty. Buy if you’re doing lots of ‘cross races and might throw your hat in the singlespeed ring from time to time
Awesome alloy, comfy cockpit, clean lines, 1x adaptability
Stiff front end
| Frame | 300 Series Alpha Aluminum, tapered head tube, BB86.5, flat mount disc brakes, 12mm thru-axle, Stranglehold dropouts, internal cable routing, 3S chain keeper BB Standard: BB86/BB92, 86.5mm, Press Fit Tire Clearance: 33c |
|---|---|
| Fork | Trek IsoSpeed Cross full carbon disc, tapered steerer, flat mount disc brakes, 12mm thru-axle |
| Bottom Bracket | Press Fit BB86.5 |
| Headset | Integrated, cartridge bearing, sealed, 1-1/8˝ top, 1.5˝ bottom |
| Stem | Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts |
| Handlebar | Bontrager Comp VR-C, 31.8mm |
| Saddle | Bontrager Montrose Comp, chromoly rails |
| Seatpost | Bontrager, 2-bolt head, 27.2mm, 8mm offset Type: Rigid |
| Pedals | Not included |
| Grips | Bontrager tape |

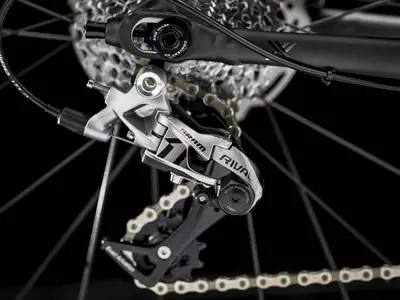

| Rear Derailleur | SRAM Rival 1, medium cage |
|---|---|
| Crank | Praxis Alba, direct mount chainring, 40T |
| Shifters | SRAM Rival 1, 11 speed |
| Cassette | SRAM PG-1130, 11-32, 11 speed |
| Chain | SRAM PC-1130 |
| Brakes | TRP Spyre mechanical disc Type: Mechanical Disc |
| Rims | Bontrager Affinity Tubeless Ready Disc |
|---|---|
| Front Hub | Bontrager alloy sealed bearing, 12mm thru-axle |
| Rear Hub | Alloy |
| Tires | Bontrager CX3 Team Issue, 120tpi, aramid bead, 700x32c |
