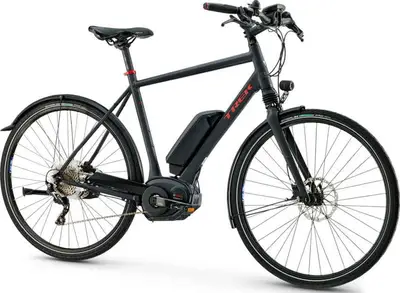

2018 Trek

XM700+

A 700c aluminum frame general urban e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

$3,499
FrameAluminum
SuspensionHardtail, 35mm
Wheels700c Aluminum
Drivetrain1 × 10
GroupsetSLX, Deore
MotorBosch 350W 63Nm mid-drive
BatteryBosch 400Wh
BrakesShimano Hydraulic Disc
Learn about Trek
Where to Buy
Similar Bikes
Top Comparison
Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

16 mph

XM700+

30 mph

Similar Bikes

Highest gear

(descending)

Reviews
Electric Bike Review
Trek XM700+ Review - Prices, Specs, Videos, Photos

Mar 2016

Price: $3499.00 | Model Year: 2016, 2017, 2018 A sleek, light weight, speed pedelec capable of reaching ~28 mph, built around the Bosch Performance Speed drive system and a Shimano SLX 10 speed drivetrain. Integrated plastic fenders and chain guard keep you clean and are reinforced to reduce rattle at high speed, extra frame bosses on the seat stays let you add a rear rack for commuting or touring. A sleek, light weight, speed pedelec capable of reaching ~28 mph, built around the Bosch Performance Speed drive system and a Shimano SLX 10 speed drivetrain.

Observations
  • A sleek, light weight, speed pedelec capable of reaching ~28 mph, built around the Bosch Performance Speed drive system and a Shimano SLX 10 speed drivetrain

  • Integrated plastic fenders and chain guard keep you clean and are reinforced to reduce rattle at high speed, extra frame bosses on the seat stays let you add a rear rack for commuting or touring

  • Surprisingly comfortable geometry with three risers, swept back bars, ergonomic grips and a monoshock suspension element with 35 mm travel and preload adjustment, available in three frame sizes (all high-step)

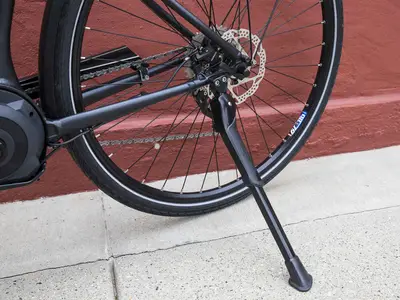

  • Funky spring-action kickstand required in Europe for speed ebikes, the battery took a bit of effort to securely click-in, most expensive model but you get a two year comprehensive warranty

Read Review

Geometry
Specs
Build
Frame

Alpha Gold Aluminum, designed for Bosch e-bike system with rack & fender mounts

BB StandardBosch, Press Fit

Fork

Bontrager SPA integrated front suspension, 35mm travel

Travel35mm

Bottom Bracket

Bosch Performance Speed, 350watt, 28mph

Headset

1-1/8˝ threadless, semi-integrated, semi-cartridge bearings

Stem

Bontrager Race Lite, 31.8mm, 7 degree

Handlebar

Bontrager Urban alloy, 31.8mm

Saddle

Bontrager H1

Seatpost

Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset

TypeRigid

Pedals

Wellgo track-style alloy

Grips

Bontrager Satellite Elite, lock-on, ergonomic

Groupset
Rear Derailleur

Shimano SLX, M7000 Shadow Plus

Crank

Miranda Delta, 20T

Shifters

Shimano Deore, 10 speed

Cassette

Shimano HG50, 11-36, 10 speed

Chain

Shimano Deore

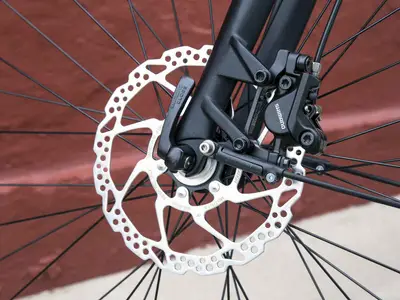

Brakes

Shimano M425, hydraulic disc

TypeShimano Hydraulic Disc

Wheels
Rims

Alloy disc 36-hole

Front Hub

Shimano Deore centerlock

Rear Hub

Shimano Deore centerlock

Tires

Schwalbe Energizer Pro, Speed e-bike, 700x38c

Electric Components
Motor

Bosch Speed Performance, 350 watt, 63Nm, 28 mph

Battery

Bosch Powerpack Performance, 400wH, frame mount

Remote

Bosch Intuvia Performance
