SR Suntour M-3030, coil spring, 75mm travel

Bontrager SSR, 2-bolt head, 29.2mm, 12mm offset

Bontrager alloy, 31.8mm, 7 degree, Blendr compatible

820 is an excellent entryway to a world of off-road adventures. It's the most affordable mountain bike in our lineup and the ideal choice for beginners who are interested in the MTB life but also want a hybrid bike that's as equally suited to light trails as it is to potholed city streets.

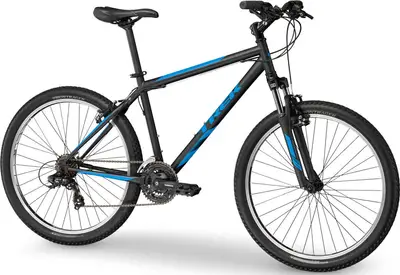

Trek 820

19.5"

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

A 26″ steel frame hardtail crosscountry bike with mid-range components and tektro rim brakes.

Weight	34.0 lbs
Frame	Steel
Suspension	Hardtail, 75mm
Fork	Suntour
Wheels	26″ Aluminum
Drivetrain	3 × 7
Groupset	Tourney
Brakes	Tektro Rim

Frame	Trek Custom Steel

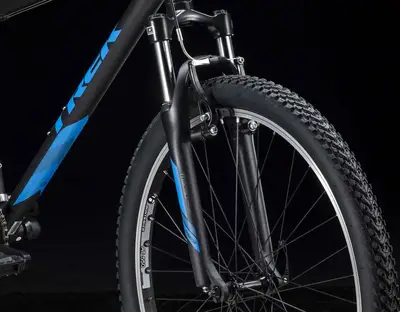

Fork	SR Suntour M-3030, coil spring, 75mm travel Travel: 75mm Spring Type: Coil
Bottom Bracket	Sealed cartridge
Headset	1-1/8˝ threadless
Stem	Bontrager alloy, 31.8mm, 7 degree, Blendr compatible
Handlebar	Bontrager alloy, 31.8mm, 15mm rise
Saddle	Bontrager Sport
Seatpost	Bontrager SSR, 2-bolt head, 29.2mm, 12mm offset Type: Rigid
Pedals	Wellgo nylon platform
Grips	Bontrager SSR

Rear Derailleur	Shimano Tourney TY300
Front Derailleur	Shimano Tourney TY500
Crank	Shimano Tourney TY301, 42/34/24
Shifters	Shimano Tourney EF41, 7 speed
Cassette	Shimano TZ21, 14-28, 7 speed
Chain	KMC Z51
Brakes	Tektro alloy linear-pull Type: Tektro Rim

Rims	Bontrager AT-550 36-hole alloy
Front Hub	Formula FM21 alloy
Rear Hub	Formula FM31 alloy
Tires	Bontrager LT3, 26x2.00˝

2018 Trek820

2018 Trek
820
