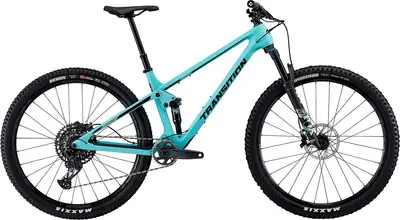

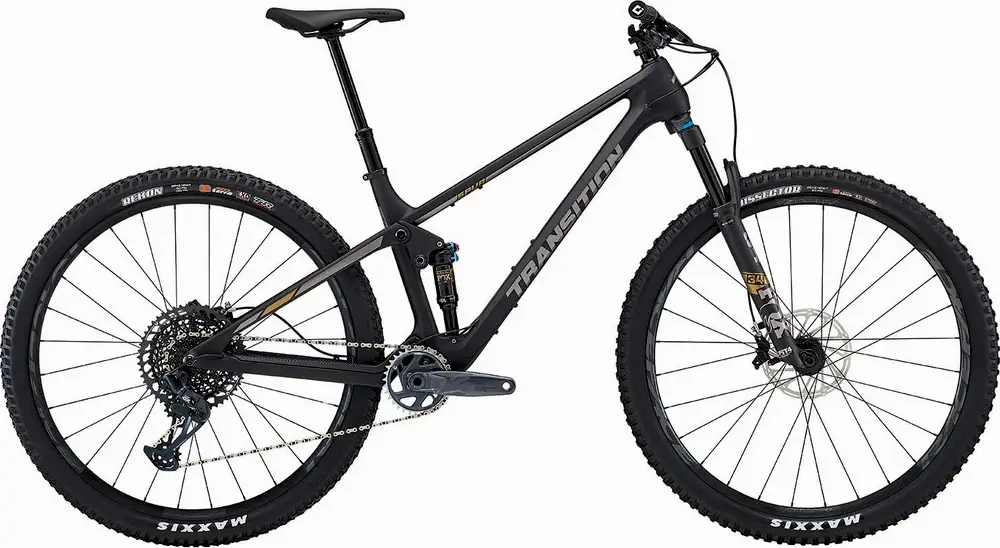

2024 Transition
Spur GX
A 29″ carbon frame full suspension trail bike with high-end components.
Compare the full range
Manufacturer Price
$4,299| Weight | 28.3 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Full, 120 / 120mm |
| Fork | Fox Performance Elite Float 34 |
| Shock | Fox Float DPS Performance Elite |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Spur model range
View Comparison5'0" – 5'7"
5'4" – 6'0"
5'8" – 6'3"
6'0" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2021 · Mike Kazimer
Call it a downcountry bike, a short-travel trail bike, or an aggressive XC bike, at the end of the day this Spur is all about having a good time, no matter which way the trail points..
Jul 2021 · Robin Weaver
The Spur manages to balance speed and efficiency with more than enough downhill composure that would put a lot of longer travel trail bikes to shame
Great geometry
Smooth and composed downhill
Sprightly and efficient uphill
Reactive and fun to ride
Needs a 180mm rear rotor as standard
Feb 2021 · Nicole Formosa
With how perfectly the Transition Spur walks the line between XC and trail, you'd never know it was the brand's first go at it.
A true modern trail bike
Super efficient climber
Parts spec skewed for descending
Lightweight (5.4 pound frame, 25.2 reported test weight)
Lifetime warranty
Entry-level price for a complete bike is $5,000
May not be XC enough for die-hard racers
Jun 2020
If anyone can make a 120mm bike work on the trails of the dank PNW - and the North Shore in particular - it's Transition
| Frame | Spur Carbon 120mm (Non-UDH) BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Tire Clearance: 2.4" Colors: Aqua; Raw Carbon |
|---|---|
| Fork | Fox Float 34 Performance Elite Fit 4, (120mm) Travel: 120mm Spring Type: Air |
| Shock | Fox DPS Performance Elite, (190x45mm) Travel: 120mm Spring Type: Air |
| Bottom Bracket | 73mm BSA Threaded |
| Headset | FSA No.57E |
| Stem | ANVL Swage (40mm) |
| Handlebar | ANVL Mandrel Alloy, SM/MD(800mm x 20mm) LG/XL(800x30) |
| Saddle | ANVL Forge Cromo, or, SDG Bel Air 3 |
| Seatpost | OneUp Dropper Post, SM(150mm) MD(180mm) LG/XL(210mm) Type: Dropper |
| Grips | ODI Elite Flow |
| Rear Derailleur | SRAM GX Eagle |
|---|---|
| Crank | SRAM GX Eagle DUB, (32t/170mm) |
| Shifters | SRAM GX Eagle |
| Cassette | SRAM XG 1275 (10-52t) |
| Chain | SRAM GX Eagle |
| Brakes | SRAM G2 RSC Type: Hydraulic Disc |
| Rims | RaceFace Aeffect R |
|---|---|
| Spokes | RaceFace 2.0/1.7/2.0 |
| Front Hub | RaceFace Trace 28h |
| Rear Hub | RaceFace Trace 28h |
| Tires | Front: Maxxis Dissector 3C EXO (2.4), Rear: Maxxis Rekon 3C EXO (2.4) |
| Disc Rotors | SRAM Centerline (180mm) |
Last updated May 13
