2023 Transition
TR11 Alloy GX Complete

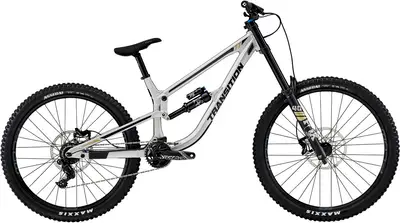

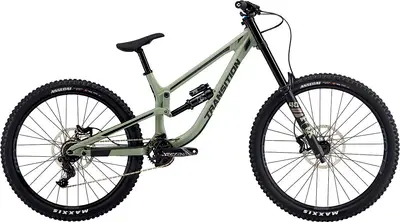

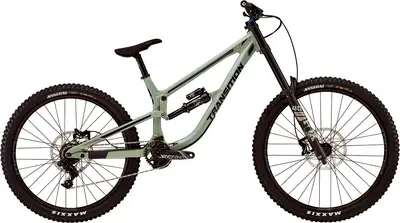

A 29″ / 27.5″ aluminum frame full suspension downhill bike with high-end components.
For This Bike
5'0" – 5'7"
5'4" – 6'0"
5'8" – 6'3"
6'0" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2022 · Henry Quinney
The new alloy TR11 now rolls on mixed wheels, and is available in 4 sizes.
Sep 2019 · Iceman2058
You just can't go to 12, it seems. Good thing that 11 is so awesome!
| Frame | TR11 Alloy 200mm BB Standard: BSA, 83mm, Threaded Tire Clearance: 2.5" Colors: Misty Green; Raw Alloy |
|---|---|
| Fork | Fox 40 Performance 29, (203mm/48mm Offset) Travel: 203mm Spring Type: Air |
| Shock | Fox Float X Performance Elite, (250x75mm) Travel: 200mm Spring Type: Air |
| Bottom Bracket | 83mm BSA Threaded |
| Headset | Transition Reach Adjust |
| Stem | ANVL Direct Mount (40mm) |
| Handlebar | ANVL Mandrel Alloy 35, SM/MD(800x30) LG/XL(800x40) |
| Saddle | SDG Patriot I-Beam |
| Seatpost | SDG I-Beam Type: Rigid |
| Grips | ODI Elite Flow Lock-On |
| Rear Derailleur | SRAM GX DH |
|---|---|
| Crank | SRAM Descendent Alloy DH DUB, (34t/165mm) |
| Shifters | SRAM GX DH |
| Cassette | SRAM PG 720 (11-25t) |
| Chain | SRAM PC 1130 |
| Chain Guide | OneUp Bash Guide |
| Brakes | TRP DH-R EVO Type: Hydraulic Disc |
| Rims | Stans Flow S2 |
|---|---|
| Spokes | Novatech D951SB/D902SB |
| Front Hub | Pillar Straight Guage |
| Rear Hub | Pillar Straight Guage |
| Tires | Front: Maxxis Assegai 3C DH (2.5), Rear: Maxxis Assegai 3C DH (2.5) |
| Disc Rotors | TRP R1 2.3 (223mm) |
Last updated April 13
